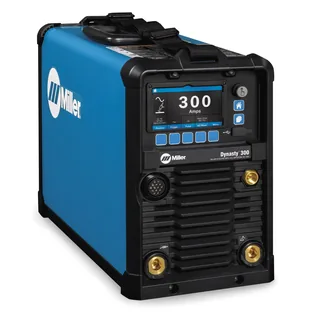

Miller Dynasty 300 TIG Welder with CPS (907818)

Miller Dynasty 300 TIG Welder with CPS (907818) with CPS offers full AC features, including advanced waveforms and wide range of balance and frequency. The 300 is a powerful combination of capability and portability. Welding up to 3/8 inch material, the AC/DC TIG and Stick power source is a powerful, energy efficient inverter.

MPN: MIL907818

UPC: 715959698306

Processes AC/DC TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air carbon arc (CAC-A)

Designed For Shipbuilding
Pipeline
Welding Education and Training
Construction and Fabrication
Aerospace
Heavy fabrication
Precision fabrication
Aluminum ship repair
Pipe and tube fabrication
Anodized aluminum fabrication

Amperage 1–300 A (DC)
2–300 A (AC)

Material Thickness Aluminum 0.012 in. (0.3 mm) – 3/8 in. (9.5 mm)
Steel 0.004 in. (0.1 mm) – 3/8 in. (9.5 mm)

Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel

Input Voltage 208 V
220/230/240 V
380/400 V
460/480 V
575/600 V

Input Phase 1- and 3-Phase

Input Hz 50/60 Hz

Input Phase AC / DC

Rated Output 250 A at 20 V, 60% duty cycle

Max Open Circuit Voltage 60 VDC

Portability Handle(s)
Running Gear / Cart (Standard)
Strap

Weld Output 250 A at 20 V, 60% duty cycle

Weight 55 lb. (25 kg)

Warranty 3 Years
Miller’s True Blue Warranty
