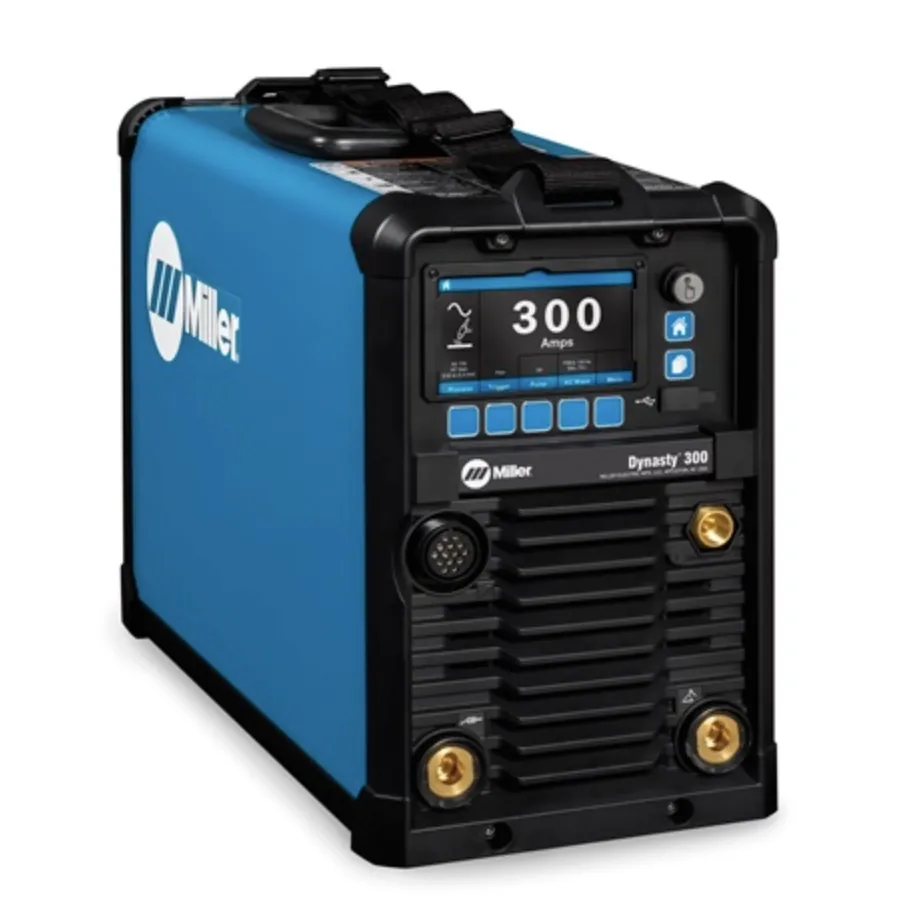

Miller Dynasty 300 CV Multi Process Welder – P/N 907819

Displacing 300 amps across TIG, Stick, and Constant Voltage wire feeding, the bare Miller Dynasty 300 CV multi process welder (P/N 907819) powers industrial pipe fabrication cells without auxiliary power sources. Fabrication facilities lose time when pipe welding stations require separate machines to lay down TIG root passes and heavy flux-cored caps. This bare industrial inverter power source incorporates CV wire feeding circuitry, Auto-Line universal power management, and advanced AC/DC TIG waveforms in a compact 55-pound cabinet.

Auto-Line technology accepts primary electrical service from 208 to 600 volts across single-phase or three-phase factory drops, maintaining consistent arc voltage during plant power fluctuations. The dedicated CV mode delivers flat volt-amp curves to run 0.035-inch and 0.045-inch wire through suitcase feeders, while AC TIG mode allows precise balance and frequency adjustments up to 400 Hz. Wind Tunnel Technology channels cooling air through a central duct, protecting internal circuit boards from conductive grinding grit.

Technical Specifications of Miller Dynasty 300 CV (P/N 907819)

- 1-300A AC/DC Multi-Process Output: Handles precision AC/DC TIG, Stick, and full Constant Voltage (CV) MIG wire feeding.
- Integrated CV Wire Mode: Supplies stable voltage output to run industrial suitcase wire feeders on heavy structural steel.
- Auto-Line 208V to 600V Power Management: Operates on single-phase or three-phase industrial electrical services without manual rewire.
- Four Specialized AC Waveforms: Tailors arc characteristics with Advanced Square, Soft Square, Sine, and Triangular options.
- Variable AC Frequency 20 to 400 Hz: Tightens arc cone width to penetrate narrow joint bevels with minimal heat input.
- Wind Tunnel Technology Cooling: Protects internal circuit boards from airborne metal shavings by directing air through a central duct.

Fabrication Stamina & Inverter Reliability

Built for structural manufacturing and process pipe fabrication, this bare power source provides extreme deposition control.

- Inverter power conversion draws lower primary current than conventional transformer powerheads, lowering monthly factory utility bills.
- Wind Tunnel isolation prevents conductive iron dust from shorting internal power switches during heavy fabrication shifts.
- CV wire capability eliminates the need to maintain duplicate MIG power sources in cramped pipe fabrication cells.

Plate Thickness Clearance & Power Integration

Weighing 55 pounds dry with a bench envelope length of 22.5 inches, this three-phase bare unit welds 3/8-inch aluminum and 1/2-inch steel plate in single-pass fillets.

Commercial Warranty & Preventive Maintenance

- Miller Electric backs the Dynasty 300 CV powerhead with a 3-Year True Blue warranty covering internal inverters and electronics.
- Authorized Miller service centers provide nationwide technical support and genuine replacement parts.

Blow dry compressed air through the powerhead cooling tunnels every 100 operating hours, check output cable lugs for heat discoloration, and verify secondary lead connections. Order the Miller Dynasty 300 CV multi process welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
