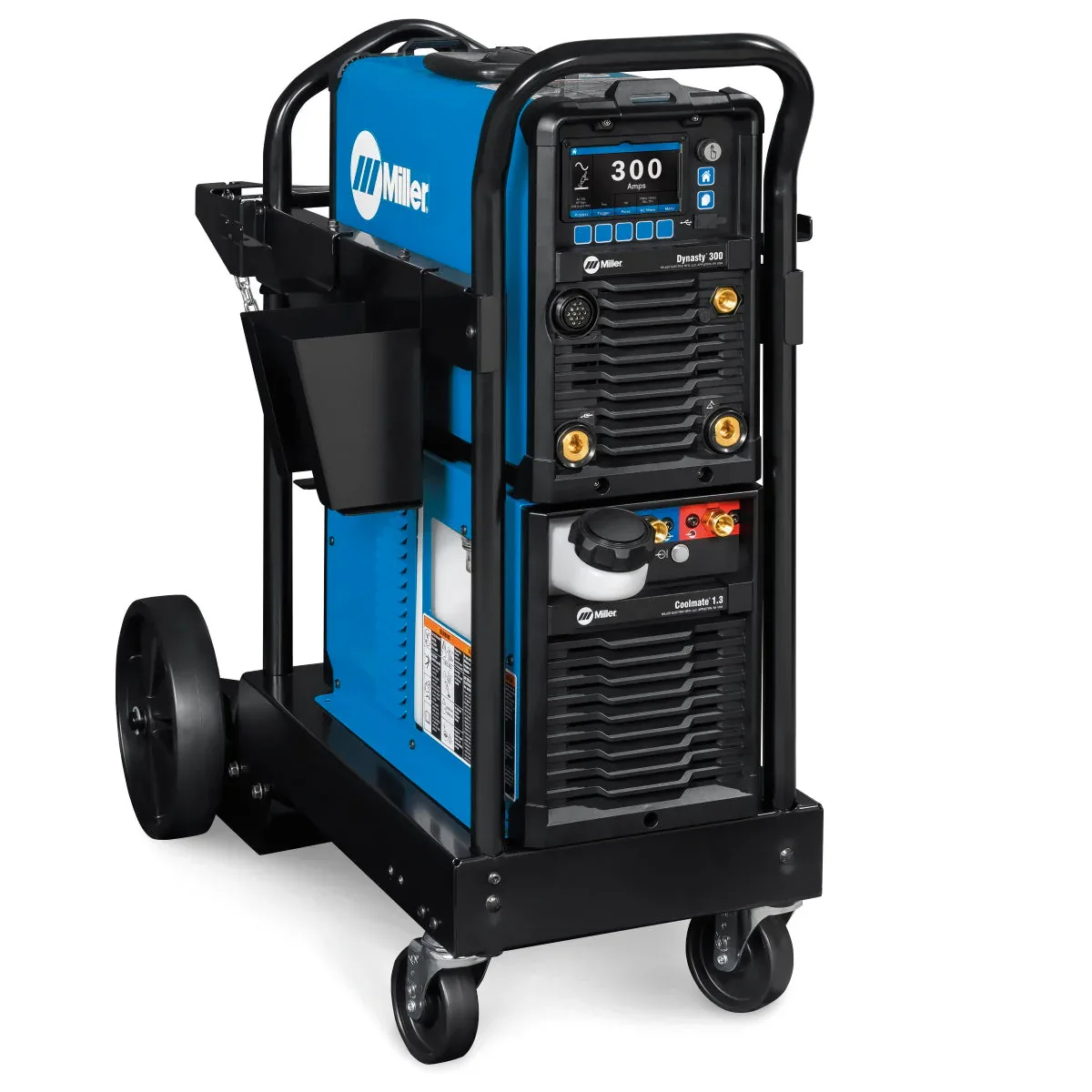

Miller Dynasty 300 CV Multiprocess Welder w/CPS TIGRunner (907819001)

Miller Dynasty 300 CV Multiprocess Welder w/CPS TIGRunner (907819001) ffers multiprocess capabilities and features like Auto-Line, AC TIG, pulse and high-frequency arc starts. The Dynasty 300 weighs just 55 pounds making it the most versatile, portable machine in its class.

The primary purpose of the Dynasty 300 with CV is so that the unit may be paired up with a Suitcase Feeder such as the ArcReach 8 or 12 and used for high-output wire feeding (MIG).

Processes
• AC/DC TIG
• Pulsed TIG
• Stick
• Air Carbon Arc
• MIG (With Paired Suitcase Feeder, Not Included)

Features
• Auto-Line (208-600V Hookup)
• Software Updates through USB Port
• Blue-Lightning High Frequency Arc Start
• Digital Meters
• Fan-On-Demand
• Cooler-On-Demand
• Wind Tunnel Technology
• Pro-Set Parameters
• Sleep Timer Conserves Power
• Cooler Power Supply (CPS) 120V Receptacle

Quick Specs
• Voltage: 208-600V | 1 or 3 Phase
• Amperage Range: 2-300A AC | 1-300A DC
• Duty Cycle (3-Phase): 60% @ 250A
• AC Material Thickness: 0.012-3/8″
• Weight: 55lbs
• Max Stick Electrode Size: 1/4″ 6010 | 7/32″ 7018 | 3/16″ 7024
• Generator Requirement: 12.5 KW

Includes
• Dynasty 300 Power Source
• Coolmate 1.3 Cooler
• Small Runner Cart
• (2) 50mm Dinse Connectors
• 8 Foot Power Cord (No Plug)
• User Manual

MPN: MIL907819001

UPC: 715959698368

Processes AC/DC TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air carbon arc (CAC-A)

Designed For Shipbuilding
Pipeline
Welding Education and Training
Construction and Fabrication
Aerospace
Heavy fabrication
Precision fabrication
Aluminum ship repair
Pipe and tube fabrication
Anodized aluminum fabrication

Amperage 1–300 A (DC)
2–300 A (AC)

Material Thickness Aluminum 0.012 in. (0.3 mm) – 3/8 in. (9.5 mm)
Steel 0.004 in. (0.1 mm) – 3/8 in. (9.5 mm)

Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel

Input Voltage 208 V
220/230/240 V
380/400 V
460/480 V
575/600 V

Input Phase 1- and 3-Phase

Input Hz 50/60 Hz

Input Phase AC / DC

Rated Output 250 A at 20 V, 60% duty cycle

Max Open Circuit Voltage 60 VDC

Portability Handle(s)
Running Gear / Cart (Standard)
Strap

Weld Output 250 A at 20 V, 60% duty cycle

Weight 240 lbs

Warranty 3 Years
Miller’s True Blue Warranty
