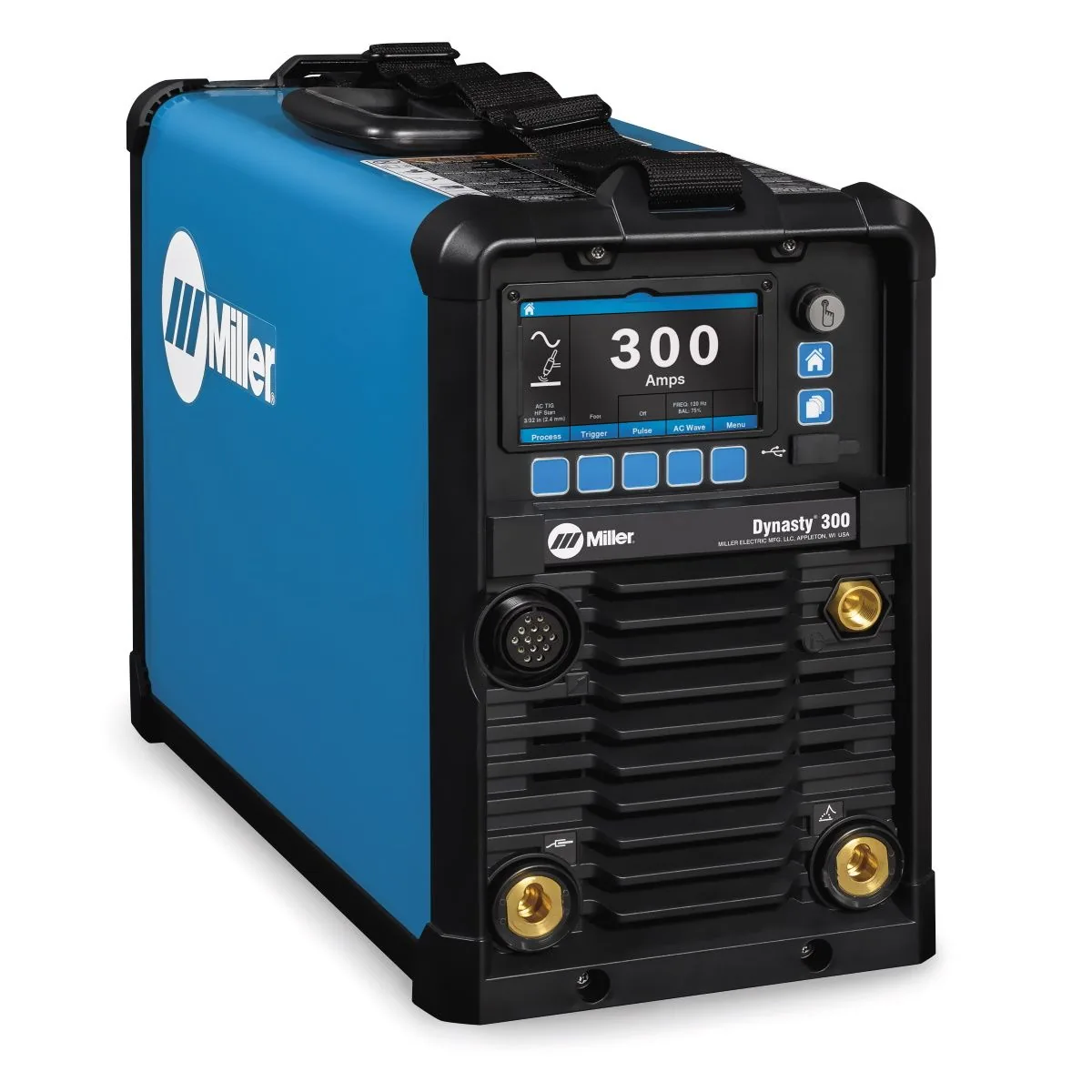

Miller Dynasty 300 TIG Welder – 1-300A Amp Range, P/N 907818

During continuous 8-hour production shifts on heavy aluminum weldments, the bare Miller Dynasty 300 TIG welder (P/N 907818) maintains surgical arc control and deep root penetration across thick plate. Aluminum tank fabricators lose productive hours when basic TIG welders lack the duty cycle to complete long multi-pass seams without cooling stops. This bare 300-amp industrial AC/DC inverter delivers 250 amps at 60 percent duty cycle and operates continuously at 200 amps at 100 percent duty cycle, fusing heavy aluminum sections with ease.

Four distinct AC waveforms allow operators to customize puddle fluidity, including Advanced Square wave for fast travel speeds and Soft Square wave for a traditional buttery arc feel. Pro-Set technology eliminates parameter setup confusion by providing factory-optimized presets for AC balance, AC frequency, and pulse parameters with a single button press. High-speed pulse TIG controls modulate current up to 500 Hz, constricting the arc cone to penetrate narrow joint bevels on titanium and thin-wall stainless tubing.

Technical Specifications of Miller Dynasty 300 (P/N 907818)

- 1-300A Heavy Industrial Output Range: Fuses delicate 1-amp sensor housings up to 3/8-inch structural aluminum plate.
- Heavy Industrial 60% Duty Cycle at 250A: Runs all day on production lines without thermal overload shutdowns.
- Auto-Line Universal Primary Power: Connects to single-phase or three-phase power from 208V to 600V without manual jumper links.
- Four AC Waveform Profiles: Selects Advanced Square, Soft Square, Sine, or Triangular wave shapes to match weld bead aesthetics.
- Variable AC Frequency 20 to 400 Hz: Pinpoints arc direction in deep root passes, reducing the heat-affected zone on alloy sheets.
- Pro-Set Parameter Setup Feature: Establishes factory-engineered balance and pulse parameters with a single button press.

Heavy-Duty Architecture & Low Maintenance

Designed for industrial fabrication shops, this bare 300-amp TIG powerhead integrates into existing workstations with minimal electrical overhead.

- Auto-Line circuitry maintains constant welding output during severe plant electrical surges or generator voltage fluctuations.
- Pro-Set presets speed up job changeovers, allowing welders to lock in verified parameters without manual experimentation.
- Wind Tunnel isolation prevents conductive metal dust from shorting internal electronic components during heavy grinding shifts.

Equipment Integration & Fitment Specs

Weighing 55 pounds dry with a cabinet length of 22.5 inches, this bare power source mounts on custom shop carts or factory multi-operator racks.

Commercial Coverage & Maintenance Upkeep

- Miller Electric covers the Dynasty 300 powerhead with a 3-Year True Blue warranty against electrical component defects.

Execute spark gap inspections annually with feeler gauges, blow shop dust out of the cooling passages every six months, and verify water cooler flow before high-amperage runs. Order the Miller Dynasty 300 TIG welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
