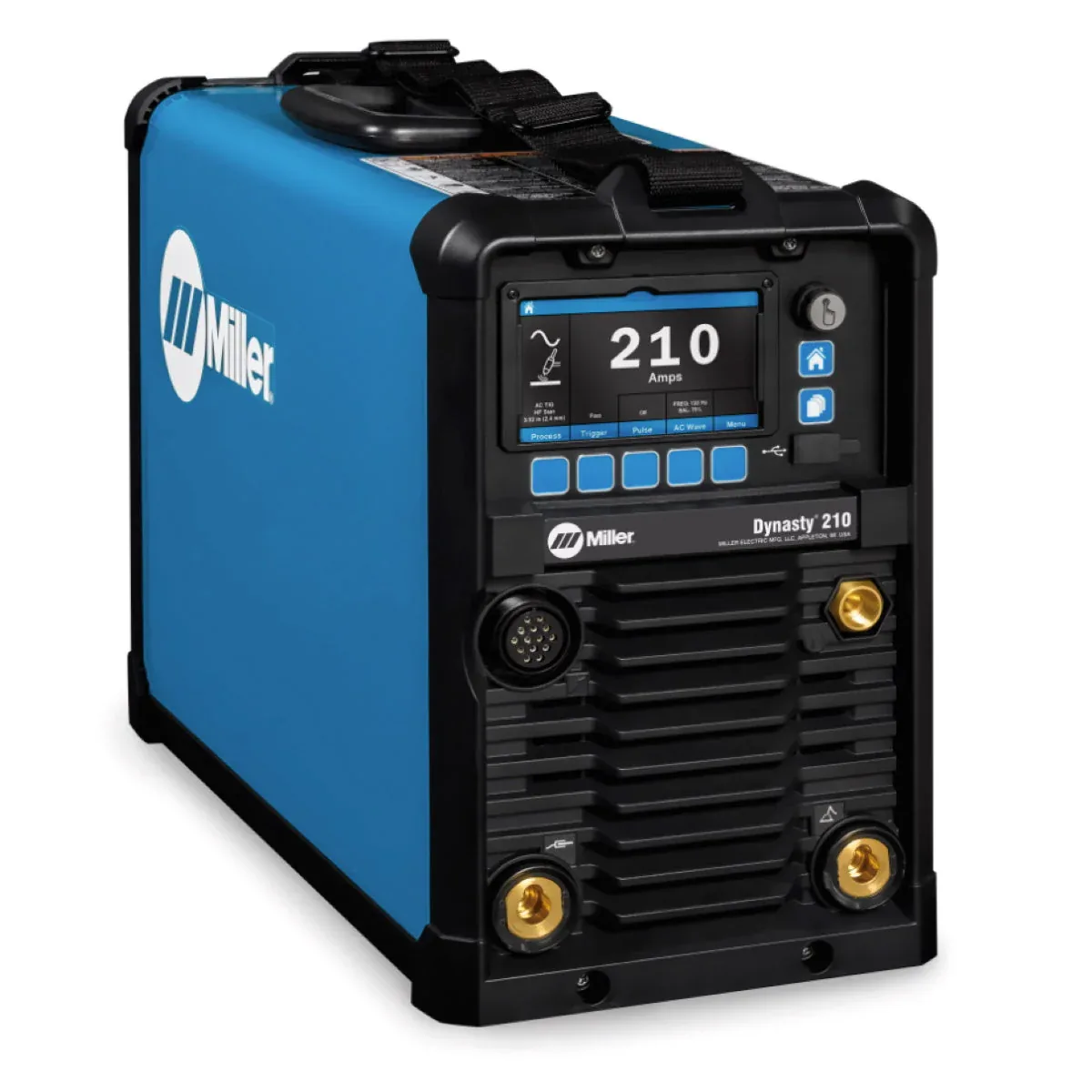

Miller Dynasty 210 TIG Welder Auto-Line 120-480V with CPS (907816001)

Miller Dynasty 210 TIG Welder Auto-Line 120-480V with CPS (907816001) offers pulse on/off, pulse frequency, peak duty cycle, background amperage, initial amperage, initial slope time, final slope time and final amperage control.

New Features
• Memory Card Port – Easily update software & expand product features
• Cooler Power Supply (CPS) – Integrated 120-volt dedicated use receptacle for the coolmate 1.3
• Cooler-On-Demand – Feature operates the auxiliary cooling system only when needed
• Pro-Set – Eliminates the guesswork when setting weld parameters
• Standby / Power Switch / Sleep Time – Programmable feature will power down the machine if is sits idle for a specified time

Quick Specs
• Process: AC/DC TIG/Stick
• Input Power: 1 or 3 Phase (120-480V)
• Amperage Range: 1-210 A
• Material Thickness: .002 – 1/4″ Steel | .012 – 1/4″ Aluminum
• Dimensions: 22.4″L X 8.6″W X 13.6″H
• Weight: 47 lbs
• AC Balance: 50-99%
• AC Frequency: 20-400 Hz
• Pulse: Off – 500 PPS

MPN: MIL907816001

UPC: 715959698108

Processes AC/DC TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)

Designed For Shipbuilding
Racing
Farm and Ranch
Manufacturing
Heavy Equipment
Railcar
Aerospace
Construction and Fabrication

Amperage 1–210 A (DC)
2–210 A (AC)

Material Thickness Aluminum 0.012 in. (0.3 mm) – 1/4 in. (6.4 mm)
Steel 0.020 in. (0.5 mm) – 1/4 in. (6.4 mm)

Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel

Input Voltage 110/115/120 V
208 V
220/230/240 V
380/400 V
460/480 V

Input Phase 1- and 3-Phase

Input Hz 50/60 Hz

Input Phase AC / DC

Rated Output 210 A at 18.4 V, 60% duty cycle

Max Open Circuit Voltage 80 VDC

Portability Handle(s)
Running Gear / Cart (Optional)
Strap

Weld Output 210 A at 18.4 V, 60% duty cycle

Weight 47 lb. (21.3 kg)

Warranty 3 Years
Miller’s True Blue Warranty
