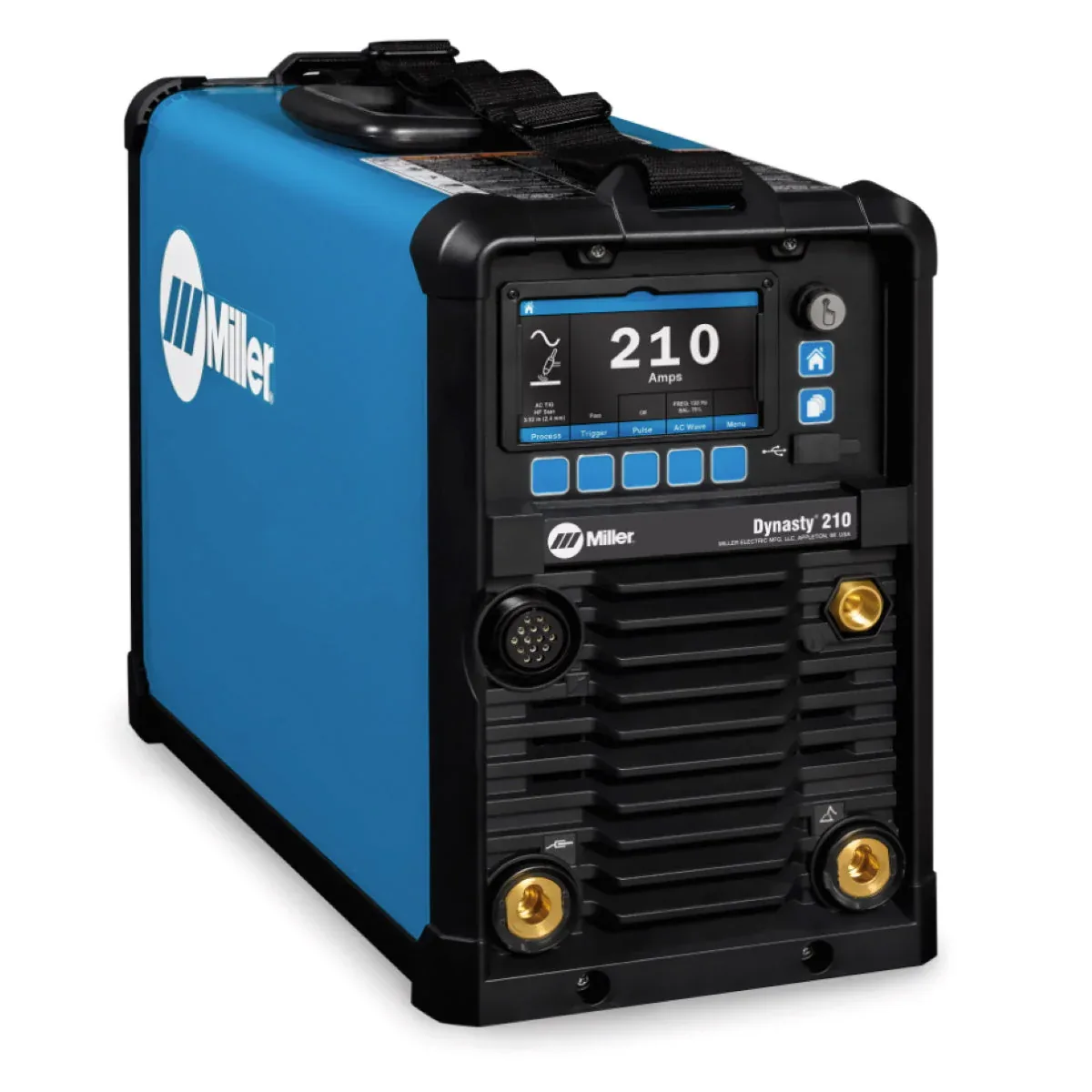

Miller Dynasty 210 TIG Welder Auto Line 120-480V (907816)

<p>Miller Dynasty 210 TIG Welder Auto Line 120-480V (907816) offers pulse on/off, pulse frequency, peak duty cycle, background amperage, initial amperage, initial slope time, final slope time and final amperage control.</p> <p>New Features</p> <p>• Memory Card Port – Easily update software &amp; expand product features<br>• Optional Cooler Power Supply (CPS) – Integrated 120-volt dedicated use receptacle for the coolmate 1.3<br>• Cooler-On-Demand – Feature operates the auxiliary cooling system only when needed<br>• Pro-Set – Eliminates the guesswork when setting weld parameters<br>• Standby / Power Switch / Sleep Time – Programmable feature will power down the machine if is sits idle for a specified time</p> <p>Quick Specs</p> <p>• Process: AC/DC TIG/Stick<br>• Input Power: 1 or 3 Phase (120-480V)<br>• Amperage Range: 1-210 A<br>• Material Thickness: .002 – 1/4″ Steel | .012 – 1/4″ Aluminum<br>• Dimensions: 22.4″L X 8.6″W X 13.6″H<br>• Weight: 47 lbs<br>• AC Balance: 50-99%<br>• AC Frequency: 20-400 Hz<br>• Pulse: Off – 500 PPS</p> <p>MPN: MIL907816</p> <p>UPC: 715959698092</p> <p>Processes AC/DC TIG (GTAW)<br>Pulsed TIG (GTAW-P)<br>Stick (SMAW)</p> <p>Designed For Shipbuilding<br>Racing<br>Farm and Ranch<br>Manufacturing<br>Heavy Equipment<br>Railcar<br>Aerospace<br>Construction and Fabrication</p> <p>Amperage 1–210 A (DC)<br>2–210 A (AC)</p> <p>Material Thickness Aluminum 0.012 in. (0.3 mm) – 1/4 in. (6.4 mm)<br>Steel 0.020 in. (0.5 mm) – 1/4 in. (6.4 mm)</p> <p>Weldable Metals Aluminum<br>Specialty Metals<br>Stainless Steel<br>Steel</p> <p>Input Voltage 110/115/120 V<br>208 V<br>220/230/240 V<br>380/400 V<br>460/480 V</p> <p>Input Phase 1- and 3-Phase</p> <p>Input Hz 50/60 Hz</p> <p>Input Phase AC / DC</p> <p>Rated Output 210 A at 18.4 V, 60% duty cycle</p> <p>Max Open Circuit Voltage 80 VDC</p> <p>Portability Handle(s)<br>Running Gear / Cart (Optional)<br>Strap</p> <p>Weld Output 210 A at 18.4 V, 60% duty cycle</p> <p>Weight 47 lb. (21.3 kg)</p> <p>Warranty 3 Years<br>Miller’s True Blue Warranty</p>
