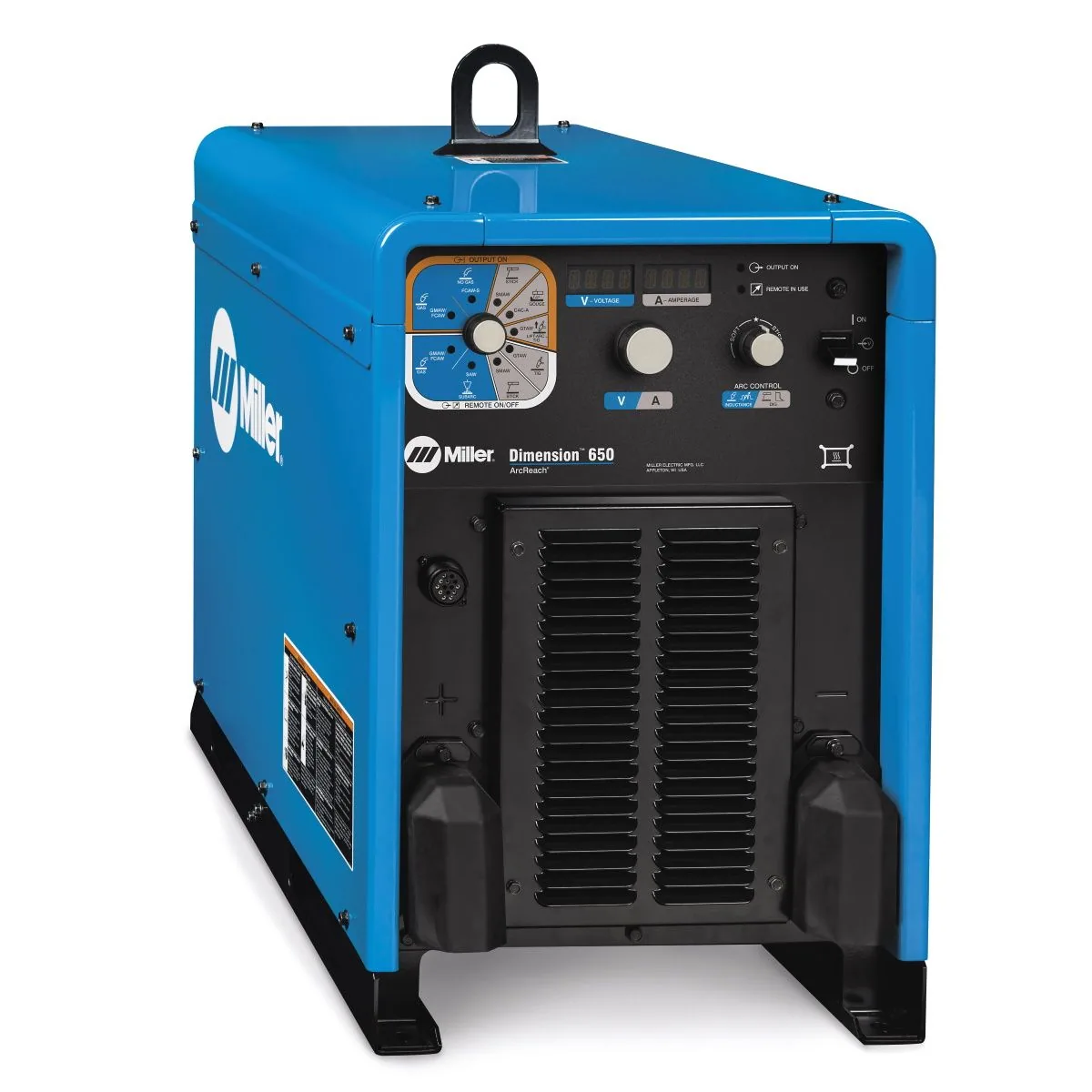

Miller Dimension 650 Multi Process Welder – 10-815A Amp Range, P/N 907809

Structural steel erectors using the Miller Dimension 650 multi process welder (P/N 907809) eliminate fragile control cable repairs through integrated ArcReach digital communication technology. Ironworkers lose billable hours dragging heavy 14-pin control cords across structural scaffolding to adjust voltage at the wire feeder. This 650-amp industrial inverter incorporates ArcReach technology, transmitting voltage and amperage control signals directly through standard copper welding leads without control cables.

The multi-process powerhead outputs 650 amps at 100 percent duty cycle, allowing non-stop structural flux-cored wire welding, heavy stick welding, and carbon arc gouging with 3/8-inch rods. Wind Tunnel technology routes cooling air across aluminum heatsinks while completely sealing internal circuit boards from conductive grinding grit. Reversible digital meters show preset and actual welding variables, keeping procedures compliant with structural welding codes.

Core Mechanical Specifications of Miller Dimension 650 (P/N 907809)

- ArcReach Cableless Digital Control: Adjusts arc parameters at the feeder across standard weld leads without fragile control cables.
- 10-815A Broad Multi-Process Range: Handles Stick, TIG, MIG, Flux-Cored, and heavy Carbon Arc Gouging with 3/8-inch carbons.
- Heavy Industrial 100% Duty Cycle at 650A: Sustains full-shift production welding on heavy plate without thermal cutout.
- Universal 380V-575V 3-Phase Input: Automatically connects to industrial three-phase power lines across heavy manufacturing plants.
- Wind Tunnel Technology Cooling: Protects internal circuit boards from airborne metal shavings by directing air through a central duct.
- High-Speed Inverter Waveform Processing: Adjusts arc parameters dynamically to prevent spatter and burn-through.
- Heavy-Gauge All-Steel Enclosure: Industrial grade chassis protects internal components from severe weather and jobsite impacts.

Mechanical Advantages for Commercial Fleets

This ArcReach-enabled industrial inverter delivers high deposition rates and reduces jobsite tripping hazards on structural steel erection projects.

- ArcReach eliminates control cable failures, stopping the most frequent cause of jobsite wire feeder breakdowns.
- Heavy 650-amp output runs large-diameter 5/64-inch structural flux-cored wires for high-deposition bridge girder fabrication.

Acreage Productivity & Gate Navigation

Weighing 158 pounds dry with an industrial cabinet length of 28 inches, this heavy-duty multi-process powerhead mounts on multi-operator racks or mobile crane skids.

Factory Warranty Protection & Service Care

- Miller Electric backs the Dimension 650 power source with a 3-Year True Blue warranty covering internal inverters and processors.
- Authorized Miller service centers provide nationwide replacement parts fulfillment and warranty technical support.

Change oil and filter every 100 operating hours on engine drives feeding this inverter, clean internal heatsinks monthly with dry shop air, and inspect output terminals for tight cable connection. Order the Miller Dimension 650 multi process welder (P/N 907809) from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
