Miller Deltaweld 500 MIG Welder – P/N 951808

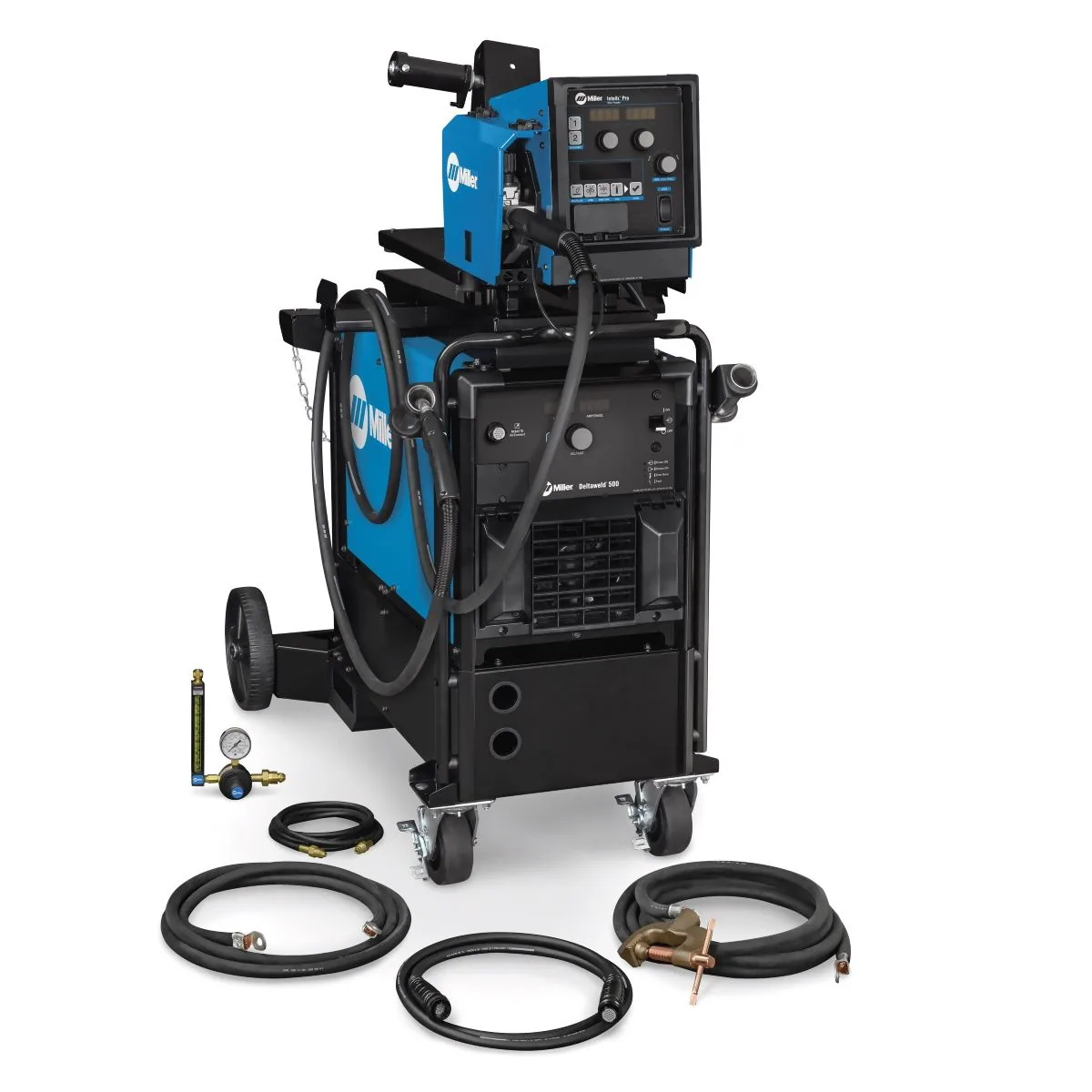

Depositing heavy spray-arc passes on structural steel, the Miller Deltaweld 500 MIG welder (P/N 951808) delivers a complete 500-amp single-feeder package ready for immediate shop production. Manufacturing managers lose billable shop days sourcing separate powerheads, wire drives, guns, and cylinder carts to assemble complete welding cells. This industrial system bundles the 500-amp Deltaweld power source, an Intellx digital wire feeder, a heavy Bernard 400-amp MIG gun, and a mobile four-wheel cylinder running gear cart.

Wind Tunnel technology routes cooling air across aluminum heatsinks while completely sealing internal circuit boards from conductive grinding grit. The Intellx wire feeder features ArcControl technology, allowing operators to adjust arc stiffness and penetration profiles with a simple digital dial. Dual-voltage 230V/460V three-phase input circuitry connects to standard factory electrical drops, outputting 500 amps at 100 percent duty cycle for non-stop wire deposition on heavy plate.

Key Engineering Features of Miller Deltaweld 500 (P/N 951808)

- Complete Single-Feeder Industrial Package: Bundles Deltaweld 500, Intellx feeder, Bernard 400A gun, running cart, and gas regulator.
- 500A Output at 100% Duty Cycle: Maintains non-stop high-deposition spray-arc welding on heavy equipment brackets without overheating.
- Intellx Digital Wire Feeder: Delivers precise wire feeding from 50 to 780 IPM with digital voltage and speed presets.
- Bernard BTB 400-Amp Gun Package: Features heavy copper contact tips and an armored neck to survive high-heat production welding.
- Dual-Voltage 230V/460V 3-Phase Input: Automatically connects to industrial electrical drops across manufacturing plants.
- Industrial Four-Wheel Running Gear Cart: Transports the complete welding station and shielding gas cylinders across shop bays.

Shop Floor Durability & Deposition Rates

Built for structural manufacturing plants, this complete 500-amp MIG station delivers maximum metal deposition with low maintenance overhead.

- Wind Tunnel airflow isolation prevents metallic dust short-circuits, extending machine operating life in heavy grinding bays.
- The heavy-duty cart platform holds all cables, hoses, and gas cylinders, eliminating tangled leads around welding tables.
- Inverter power conversion draws lower primary current than conventional transformer powerheads, lowering monthly factory utility bills.

Plate Thickness Clearance & Power Integration

Operating on three-phase 230V or 460V shop power, this complete mobile system welds 5/8-inch steel plate in a single pass and rolls across concrete shop floors on heavy rubber tires.

Warranty Coverage & Field Maintenance

- Miller Electric backs the Deltaweld 500 powerhead and Intellx wire feeder with a 3-Year True Blue warranty.
- The Bernard 400-amp MIG gun and industrial flowmeter receive 1-Year manufacturer warranty protection.

Execute drive roll groove inspections weekly, blow compressed air through the gun cable liner during wire spool swaps, and replace contact tips when arc stutter appears. Order the Miller Deltaweld 500 MIG welder (P/N 951808) from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
