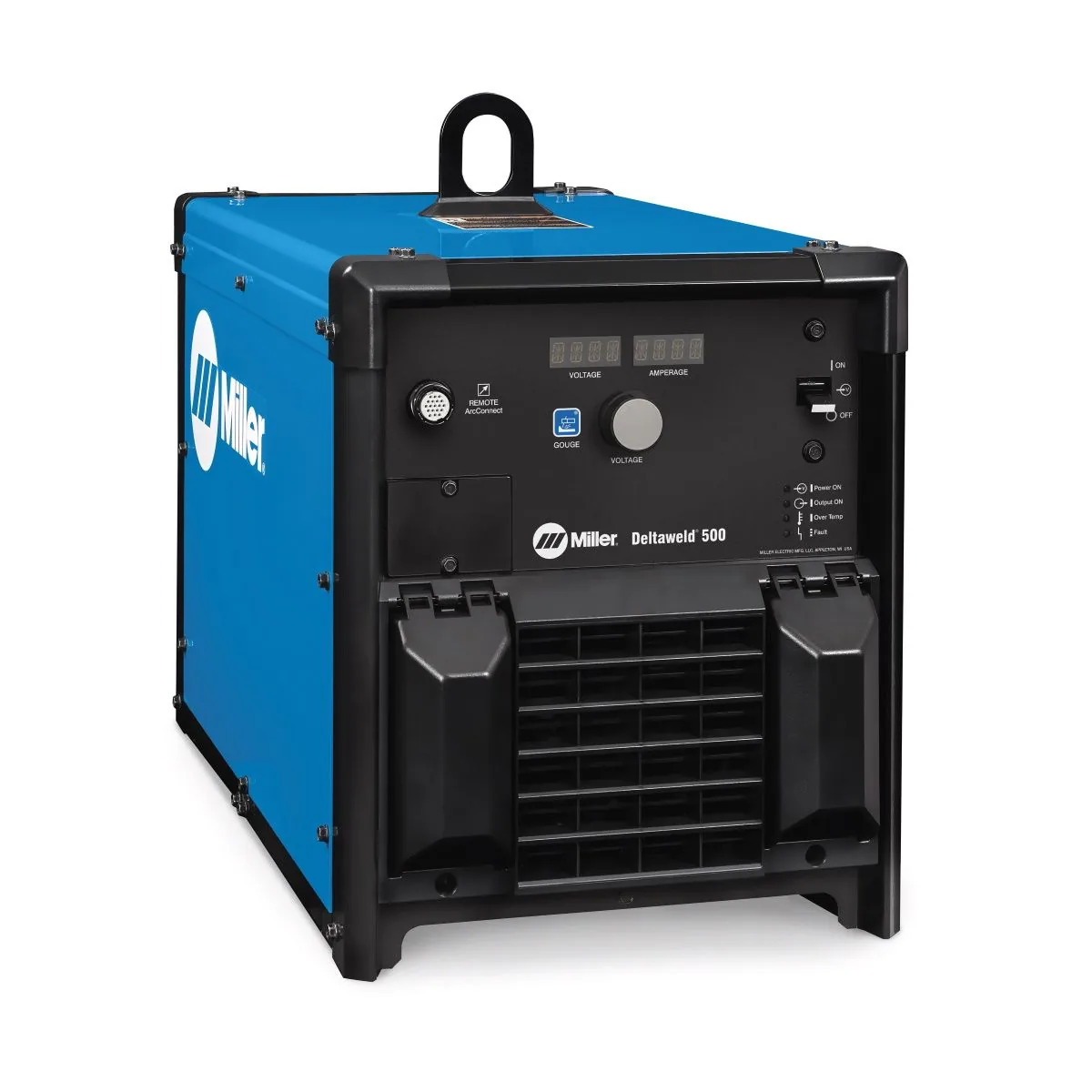

Miller Deltaweld 500 Welder – 20-600A Amp Range, P/N 907785

Tackle custom structural fabrication and robotic boom integration with the bare Miller Deltaweld 500 welder (P/N 907785) to power existing wire feeders across industrial manufacturing bays. Structural manufacturing plants lose money when forced to buy complete welding carts when they only need to replace aged transformer powerheads. This bare 500-amp industrial inverter power source operates on 230V or 460V three-phase primary power, outputting 20 to 600 amps of welding current to drive boom-mounted or benchtop wire feeders.

Wind Tunnel technology channels cooling air through an isolated central duct, keeping metal grinding dust away from delicate electronic circuit boards. Fan-On-Demand cooling operates only when internal heatsinks require cooling, lowering electrical power draw and reducing airborne contaminants drawn through the chassis. Dedicated 14-pin control receptacles communicate with digital Intellx wire feeders, unlocking pulsed MIG and advanced arc control parameters right at the workstation.

Engine Architecture of Miller Deltaweld 500 (P/N 907785)

- 20-600A Bare Industrial Powerhead: Delivers heavy multi-process power for structural MIG, Flux-Cored, and Carbon Arc Gouging.
- Heavy Industrial 100% Duty Cycle at 500A: Runs all day on heavy structural fabrication passes without thermal overload stops.
- Dual-Voltage 230V/460V 3-Phase Input: Automatically connects to standard industrial three-phase power drops across manufacturing plants.
- Wind Tunnel Component Isolation: Protects internal circuit boards from airborne metal shavings by directing air through a central duct.
- Fan-On-Demand Energy Efficient Cooling: Runs cooling fans only when needed to lower electrical draw and minimize internal dust intake.
- Intellx Digital Communication Link: Connects to digital wire feeders to unlock advanced pulsed MIG and ArcControl features.

Commercial Advantages & Heavy-Duty Build

Built for structural manufacturing shops, this bare 500-amp powerhead delivers extreme duty-cycle stamina with low power draw.

- Inverter power conversion draws lower primary current than conventional transformer powerheads, lowering monthly factory utility bills.
- Wind Tunnel isolation prevents conductive iron dust from shorting internal power switches during heavy fabrication shifts.

Property Clearance & Trailer Packing

Measuring 26.25 inches long by 15.3 inches wide and weighing 115 pounds dry, this industrial powerhead fits on existing factory racks or boom arms.

Warranty Protection & Routine Upkeep

- Miller Electric covers the Deltaweld 500 power source with a 3-Year True Blue warranty against electrical component defects.

Clean internal cooling passages every 100 hours with dry shop air, verify secondary cable connection tightness, and check primary electrical connections annually. Order the Miller Deltaweld 500 welder (P/N 907785) from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
