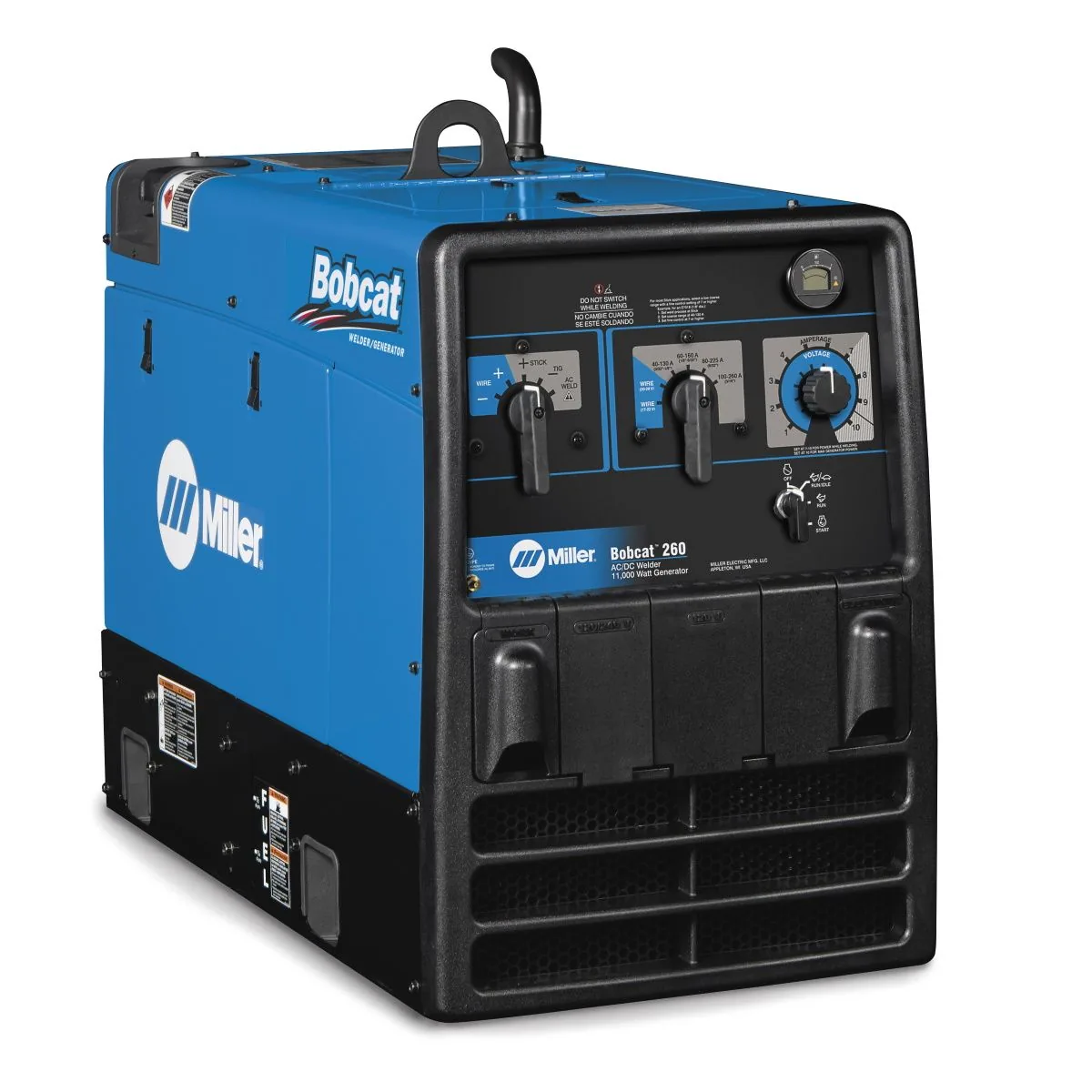

Miller Bobcat 260 Kohler Engine Driven Welder Generator – P/N 907792

Prevent voltage fluctuation on sensitive plasma cutters using the Miller Bobcat 260 Kohler engine driven welder generator (P/N 907792) with clean 11,000-watt auxiliary power output. Construction crews lose time when utility generators produce harmonic distortion that causes plasma cutting pilot arcs to misfire. This 260-amp commercial machine delivers 9,500 watts of continuous Accu-Rated AC power, driven by a 23.5HP Kohler Command PRO engine equipped with a digital maintenance display.

Digital interface screens show real-time engine hours and maintenance intervals, while electronic fuel gauges prevent unexpected runouts mid-weld. The 260-amp welding powerhead delivers smooth DC stick arcs, crisp MIG wire deposition, and precise TIG puddle control on structural steel joints. A reversed cooling airflow pattern draws air through the front grille and expels it upward, reducing engine noise to 72.5 dBA at 23 feet.

Key Engineering Features of Miller Bobcat 260 Kohler

- 260A Multi-Process Output: Handles Stick, TIG, MIG, Flux-Cored, and Arc Gouging with carbon rods up to 3/16-inch.
- 11,000-Watt Peak AC Generator: Delivers clean 120V and 240V power to run heavy chop saws and magnetic base drills.
- 23.5HP Kohler Command PRO Engine: Twin-cylinder commercial engine features cast-iron sleeves and automatic low-oil shutdown.
- Digital Maintenance Display Panel: Tracks engine hours, oil life, and fuel level with automated service alerts.
- Reversed Airflow Quiet Operation: Lowers operating sound levels to 72.5 dBA for improved communication on jobsites.
- 12-Gallon Fuel Tank Capacity: Keeps field fabrication crews working up to 14 hours on a single tank.
- Heavy-Gauge All-Steel Enclosure: Industrial grade chassis protects internal components from severe weather and jobsite impacts.
- Four 120V GFCI & One 240V Receptacles: Provides standard jobsite electrical power outputs for auxiliary hand tools.

Fleet Productivity & Cost of Ownership

Engineered for structural steel fabrication and heavy equipment repair, this commercial engine drive provides extreme duty-cycle stamina.

- Accu-Rated generator design delivers clean power under full load without tripping auxiliary tool breakers.
- Reversed cooling airflow keeps hot air directed upward away from the operator, increasing work comfort on truck beds.
- High-capacity fuel tanks permit all-day mowing runs without returning to fleet trucks for refueling stops.

Chassis Compatibility & Transport Dimensions

Weighing 501 pounds dry with an exterior length of 40.5 inches, this versatile engine-drive unit mounts on service trucks, flatbed trailers, or construction skids.

Factory Warranty & Maintenance Guidelines

- Miller Electric backs the Bobcat 260 powerhead and generator stator with a 3-Year True Blue warranty.
- Kohler covers the 23.5HP Command PRO engine with a 3-Year commercial engine warranty through authorized dealers.

Change engine oil and filter every 100 operating hours with 10W-30 oil, inspect spark plug gaps at 0.030 inches, and clean dirt from the cooling fins monthly. Order the Miller Bobcat 260 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
