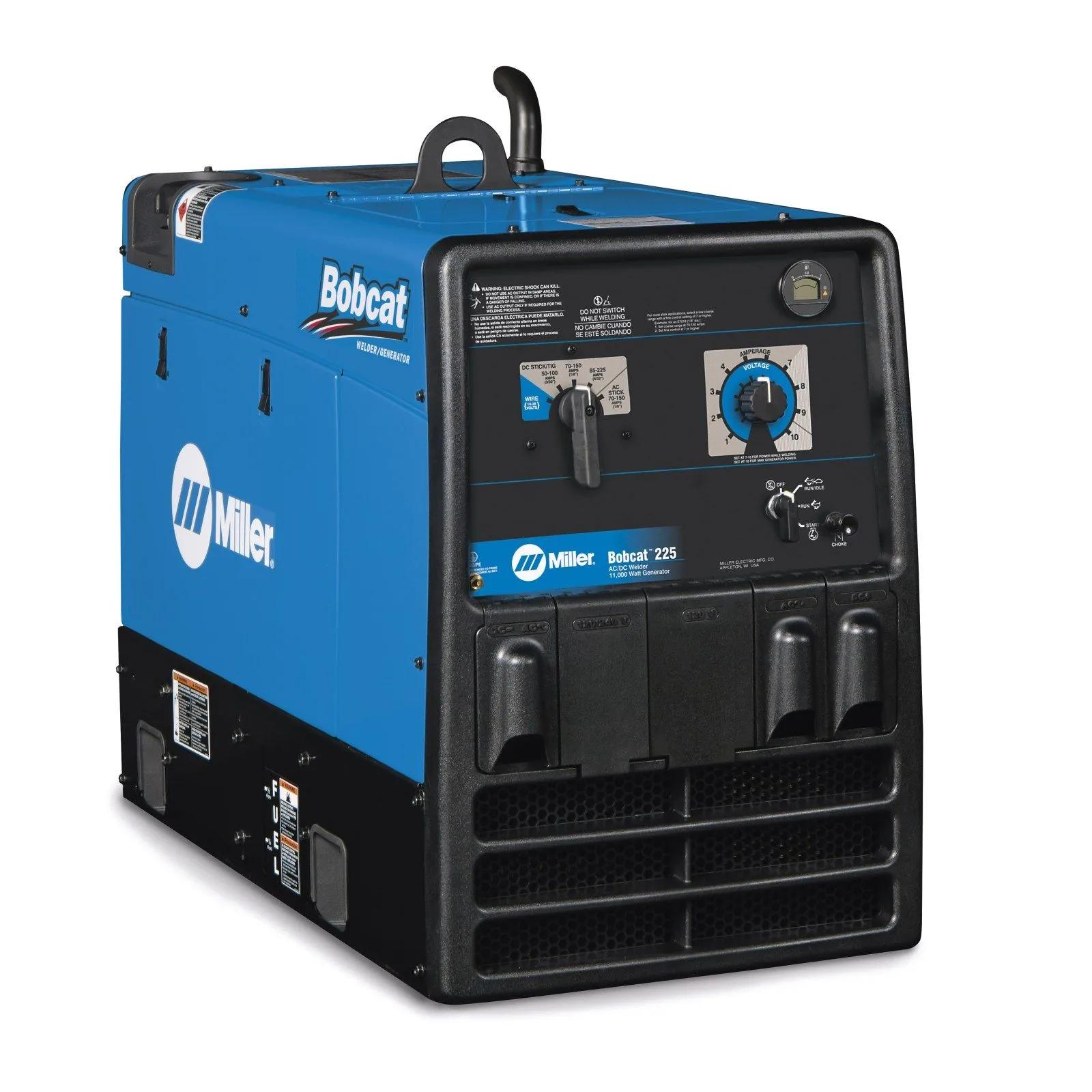

Miller Bobcat 225 Kohler Engine Driven Welder Generator – P/N 907791001

Remote service truck mechanics relying on the Miller Bobcat 225 Kohler engine driven welder generator (P/N 907791001) eliminate battery drain delays with dedicated factory-installed cold-start and charging hardware. Service calls in freezing winter conditions strain starter motors and cause oil thickening that halts manual jobsite starts. This commercial package equips the 225-amp multi-process welder with cold-start circuitry, a 23HP Kohler Command PRO engine, an 11,000-watt generator, and full GFCI receptacle protection.

You run heavy 9-inch angle grinders and portable plasma cutters from the 120V and 240V outlets while holding a steady welding puddle. The 12-gallon fuel tank supports all-day field service without refueling stops. Heavy-gauge steel cabinet panels defend internal mechanical components from road gravel spray and weather, while the front control panel groups process dials together for fast setup with gloved hands.

Core Mechanical Specifications of Miller Bobcat 225 (P/N 907791001)

- 225A DC/AC Multi-Process Output: Burns cellulosic and low-hydrogen electrodes up to 3/16-inch diameter for heavy structural repairs.
- 11,000-Watt Peak AC Auxiliary Generator: Supplies 9,500 watts of continuous electrical power for heavy air compressors and saws.
- 23HP Kohler Commercial Gas Engine: Features cast-iron cylinder liners, electric fuel pump, and automatic low-oil shutdown.
- Reversed Generator Airflow Cooling: Pulls cool air from the front and vents out the top to lower sound levels down to 73.5 dBA.
- 12-Gallon High-Capacity Fuel Tank: Permits extended field operation without returning to the shop for gasoline refills.
- Full GFCI Protected Outlets: Meets OSHA jobsite electrical safety codes across all auxiliary power receptacles.
- Digital Maintenance Indicator Display: Monitors operational hours and tracks scheduled engine oil changes automatically.

Heavy-Duty Architecture & Low Maintenance

Built for commercial service fleets and structural repair trucks, this gas-drive machine delivers dependable multi-process field power.

- A front-to-top cooling duct design keeps internal generator windings free of road spray and metal grinding dust.
- Cast-iron cylinder sleeves inside the Kohler engine resist bore wear across thousands of commercial operating hours.

Property Clearance & Trailer Packing

Weighing 485 pounds dry with an exterior length of 40.5 inches, this commercial machine mounts across standard pickup truck beds and secures with four-bolt corner mounts.

Factory Warranty Terms & Service Guidelines

- Miller Electric provides a 3-Year True Blue warranty covering the generator alternator, rotor, and internal electronics.
- The Kohler engine receives 3-Year commercial warranty backing through authorized Kohler service centers nationwide.

Service engine oil and filter every 100 operating hours using 10W-30 motor oil. Inspect generator air intake screens weekly, check battery terminal connections, and test GFCI receptacles monthly. Order the Miller Bobcat 225 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
