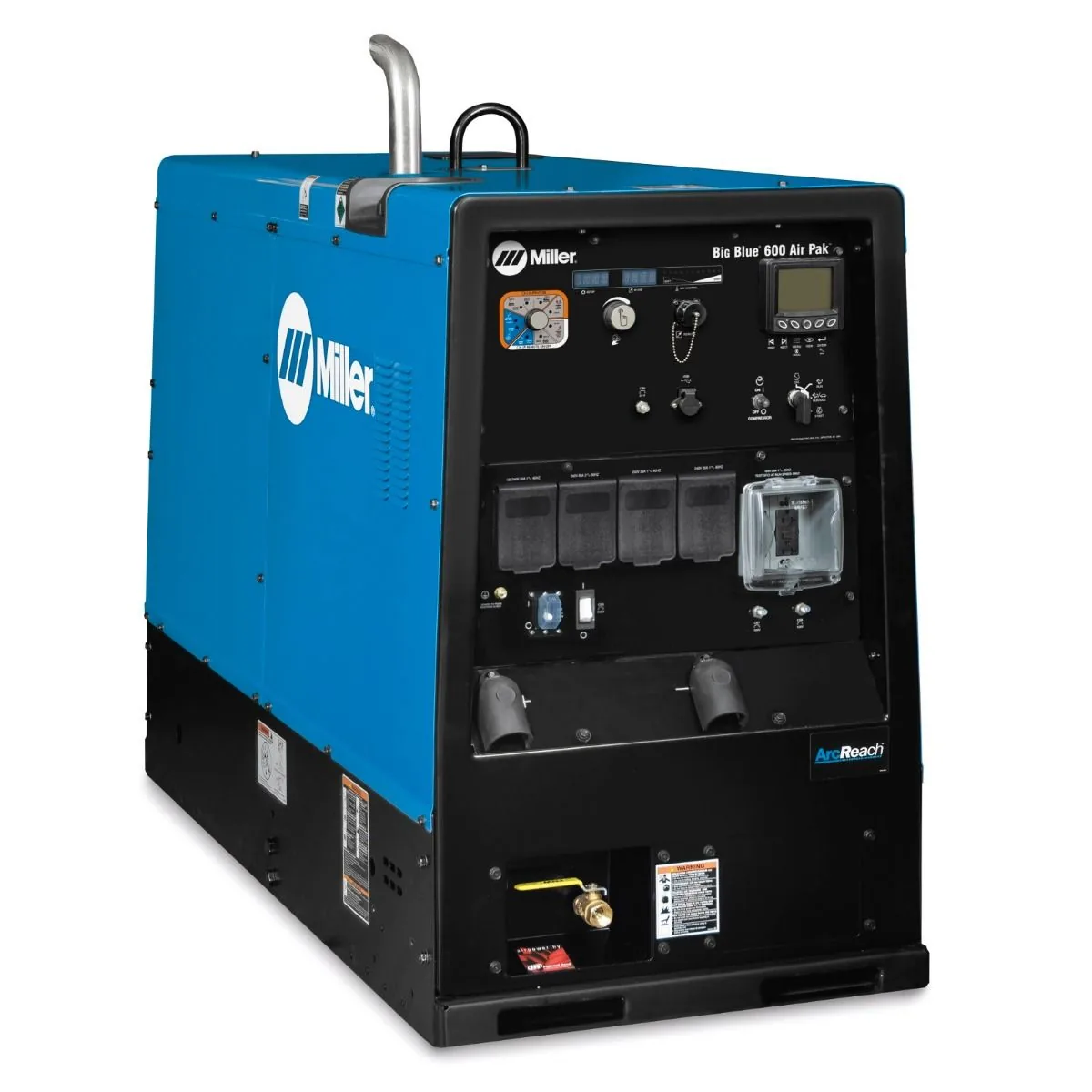

Miller Big Blue 600 Deutz Engine Driven Welder Generator – 20-600A Amp Range

Prevent voltage dropouts on heavy carbon arc gouging jobs using the Miller Big Blue 600 Deutz engine driven welder generator with turbocharged diesel power across a 20 to 600-amp range. Heavy equipment rebuild shops face engine bogging and thermal cutout when running 3/8-inch carbon gouging rods on naturally aspirated diesel welders. This industrial machine incorporates a turbocharged Deutz TD2.9L4 liquid-cooled diesel engine, outputting 600 amps of multi-process welding current and 20,000 watts of 3-phase auxiliary power.

The turbocharged Deutz diesel engine delivers high torque reserve, holding engine RPM steady when heavy carbon gouging electrodes strike the workpiece. Full ArcReach integration communicates digital voltage and wire feed speed adjustments directly through standard copper welding leads without control cables. A heavy-duty oil-bath air pre-cleaner and electronic engine diagnostic display protect engine health during long shifts in dusty open-pit mines.

Key Engineering Features of Miller Big Blue 600 Deutz

- 20-600A Heavy Industrial Output Range: Produces up to 600 amps to weld thick plate and gouge with 3/8-inch carbon electrodes.
- Deutz TD2.9L4 Turbocharged Diesel Engine: Delivers high mechanical torque reserve to maintain arc voltage under heavy gouging loads.
- Heavy Industrial Duty Cycle Ratings: Delivers 600A at 40%, 550A at 60%, and 500A at 100% duty cycle for non-stop welding.
- 20kW 3-Phase & 12kW 1-Phase Generator: Powers heavy jobsite tools, induction heaters, and high-amp air compressors simultaneously.
- ArcReach Cableless Digital Control: Adjusts arc parameters at the feeder across standard weld leads without fragile control cables.
- Electronic Engine Diagnostic Monitor: Tracks oil pressure, coolant temperature, and fuel consumption with automatic safety shutoffs.
- Heavy-Gauge Industrial Steel Enclosure: Resists severe physical impacts, flying slag, and gravel spray on open mining haul roads.
- Brushless Alternator Rotor Topology: Operates without carbon brushes, eliminating mechanical brush wear in dirty industrial environments.

Fleet Productivity & Cost of Ownership

Engineered for mining equipment rebuilds and structural bridge erection, this 600-amp diesel rig maximizes daily metal removal and deposition.

- Turbocharged Deutz diesel engine maintains full rated horsepower at high elevations where naturally aspirated engines lose output.
- Carbon arc gouging with 3/8-inch carbons washes out cracked welds rapidly, cutting excavator bucket overhaul hours in half.
- ArcReach technology eliminates fragile control cables, stopping the most frequent cause of jobsite wire feeder breakdowns.

Chassis Compatibility & Transport Dimensions

Weighing 1,774 pounds dry with an exterior length of 69.5 inches, this heavy industrial diesel machine mounts across commercial service truck beds and heavy utility trailers.

Factory Warranty & Maintenance Guidelines

- Miller Electric provides a 3-Year True Blue warranty covering the generator alternator, rotor, and internal electronics.
- Deutz covers the TD2.9L4 turbocharged diesel engine through a 2-Years or 2,000-hour factory warranty through authorized distributors.

Perform diesel engine oil and filter changes every 250 operating hours with 15W-40 oil, inspect the turbocharger intake hose monthly, and check coolant levels weekly. Order the Miller Big Blue 600 Deutz engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
