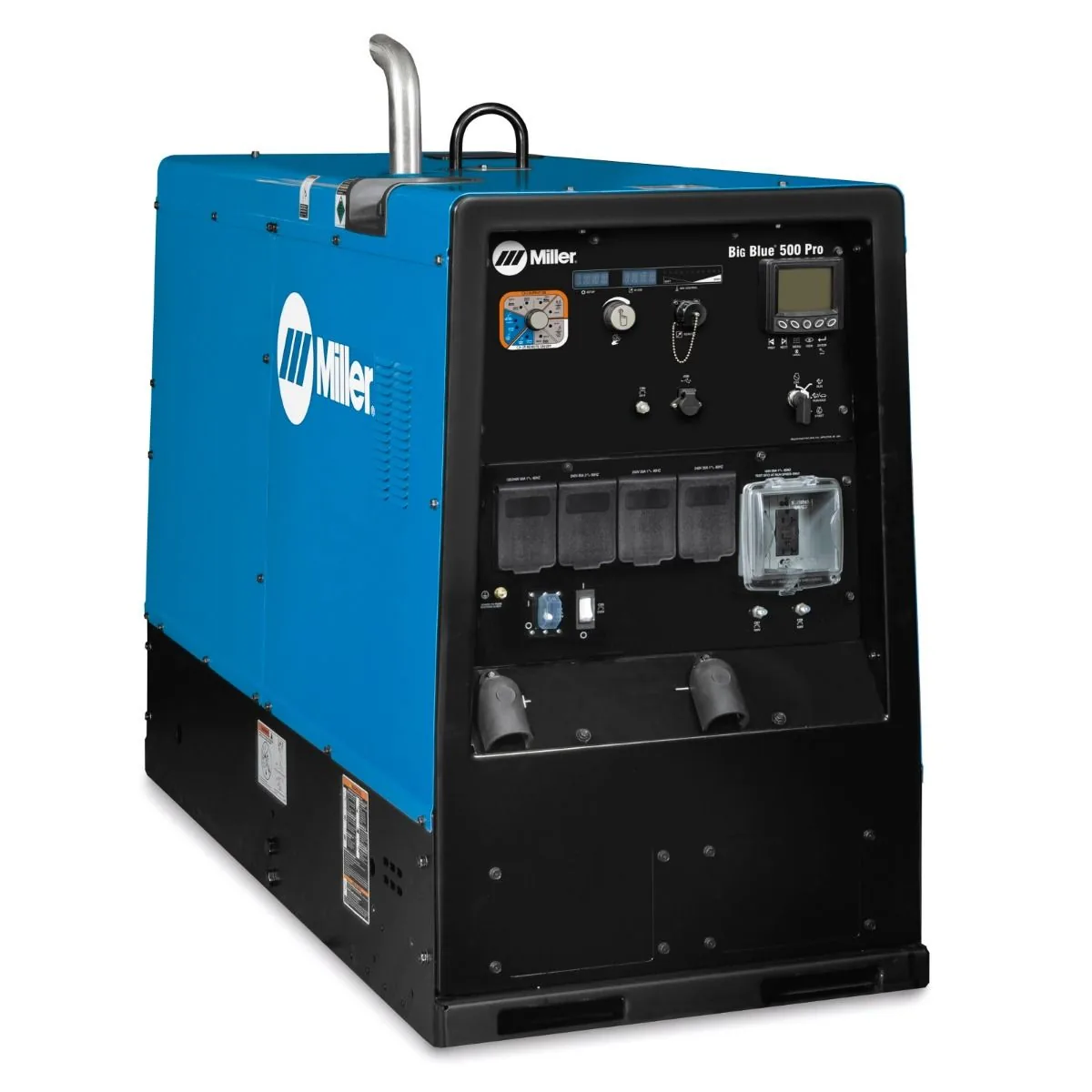

Miller Big Blue 500 Kubota Engine Driven Welder Generator – P/N 907736

Tackle heavy structural steel weldments and thick-wall transmission pipe with the Miller Big Blue 500 Kubota engine driven welder generator (P/N 907736) to maintain 500 amps of continuous deposition. Structural bridge crews face severe weld defects when powerheads drop voltage under heavy 0.052-inch flux-cored wire feeds. This heavy industrial diesel machine features a water-cooled Kubota V2403 diesel engine, ArcReach technology, and an industrial brushless alternator that outputs 500 amps at 100 percent duty cycle.

ArcReach technology lets operators adjust arc voltage at an optional Suitcase wire feeder across standard weld leads, eliminating trips back to the service truck. An onboard 20kW peak auxiliary generator supplies continuous electrical current to run 9-inch grinders and pipe beveling machines without dropping welding voltage. A fully enclosed steel case protects the Kubota engine and generator assemblies from gravel spray, driving rain, and construction dust.

Engine Architecture of Miller Big Blue 500 (P/N 907736)

- 500A Output at 100% Duty Cycle: Delivers non-stop welding current for heavy structural wire, stick, and gouging passes.
- Kubota V2403 4-Cylinder Liquid-Cooled Diesel: Heavy-duty industrial diesel powerhead delivers reliable mechanical torque.
- ArcReach Remote Parameter Technology: Regulates voltage and wire speed through the weld lead without separate 14-pin cords.
- 20,000-Watt Peak AC Auxiliary Generator: Delivers clean 1-phase and 3-phase power for heavy jobsite tools and air compressors.
- Heavy-Duty Carbon Arc Gouging Terminal: Burns carbon gouging electrodes up to 3/8-inch diameter for rapid metal removal.
- Heavy-Gauge All-Steel Enclosure: Industrial grade chassis protects internal components from severe weather and jobsite impacts.

Commercial Advantages & Heavy-Duty Build

Built for structural steel erectors and heavy mining maintenance, this 500-amp diesel powerhead delivers extreme duty-cycle stamina.

- A low 1,800 RPM operating speed cuts diesel fuel consumption significantly compared to high-speed 3,600 RPM welding rigs.
- Brushless generator rotor design eliminates slip rings and commutator brushes, lowering scheduled maintenance overhead.

Property Clearance & Trailer Packing

Weighing 1,655 pounds dry with an exterior length of 65 inches, this heavy diesel machine mounts securely on four-wheel road trailers or custom flatbed welding trucks.

Warranty Protection & Routine Upkeep

- Miller Electric backs this Big Blue 500 machine with a 3-Year True Blue warranty covering the generator, rotor, and electronic controls.

Service this engine with fresh 15W-40 diesel motor oil and a new filter every 250 operating hours. Tap clean the heavy-duty air cleaner weekly on dusty routes, and inspect generator output studs for heat tightness. Order the Miller Big Blue 500 Kubota engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
