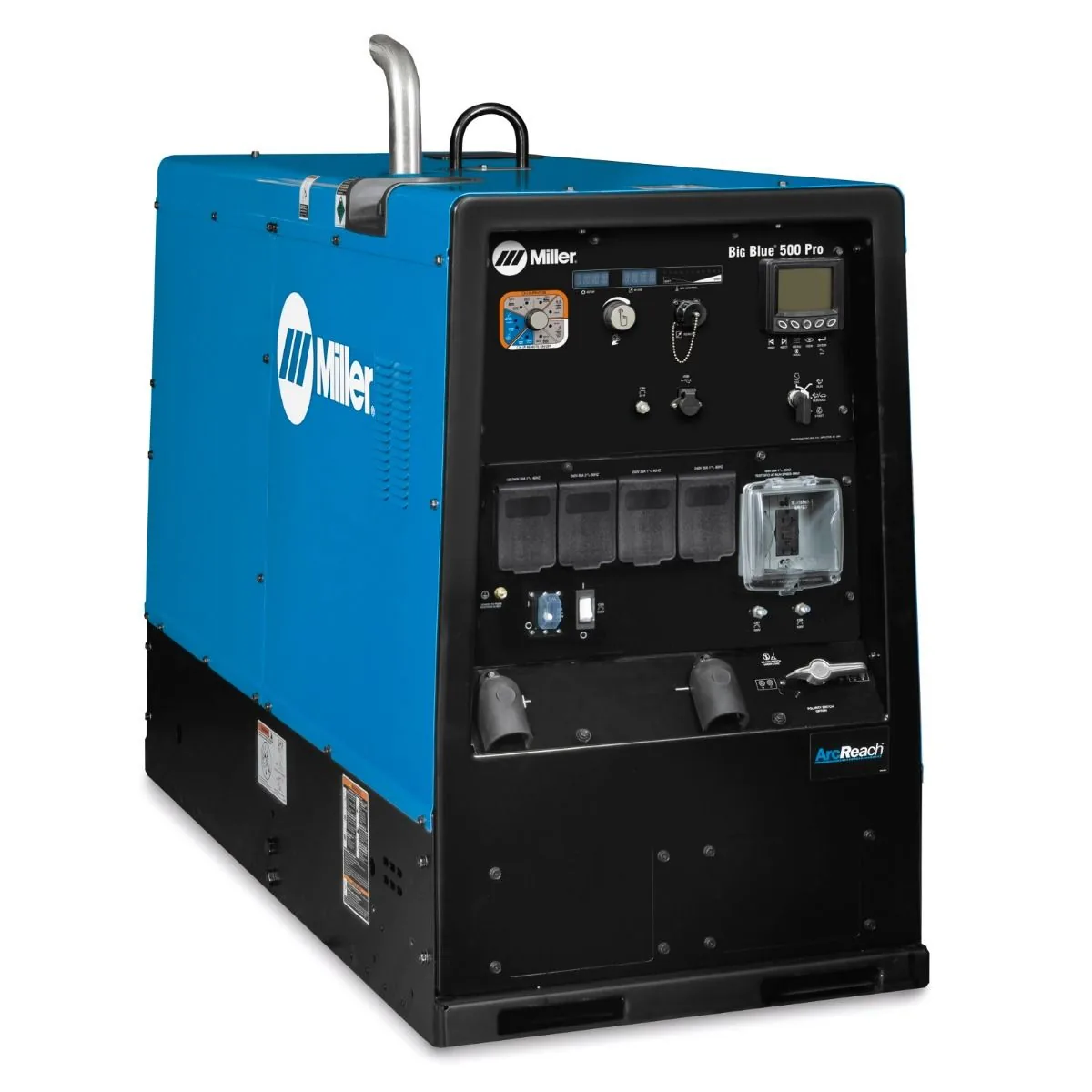

Miller Big Blue 500 Kubota Engine Driven Welder Generator – 20-600A Amp Range

Displacing up to 600 amps of multi-process welding current, the Miller Big Blue 500 Kubota engine driven welder generator produces heavy-duty carbon arc gouging power across a broad 20 to 600-amp range. Heavy equipment repair shops and structural bridge fabricators lose productive hours when undersized welders cannot burn 3/8-inch carbon electrodes to wash out cracked steel castings. This heavy industrial diesel machine delivers 500 amps at 100 percent duty cycle, driven by a liquid-cooled Kubota V2403 4-cylinder diesel engine.

A high-capacity 20,000-watt 3-phase and 12,000-watt 1-phase AC generator runs heavy induction preheaters, plasma cutting machines, and hydraulic power packs while operators maintain a steady welding arc. ArcReach technology communicates digital voltage and wire feed speed adjustments directly through standard copper welding leads without control cables. The low-speed 1,800 RPM Kubota diesel engine cuts fuel consumption significantly while reducing engine clatter across noisy construction sites.

Technical Specifications of Miller Big Blue 500 Kubota

- 20-600A Multi-Process Operating Window: Handles Stick, TIG, MIG, Flux-Cored, and heavy Carbon Arc Gouging with 3/8-inch rods.
- Heavy Industrial 100% Duty Cycle at 500A: Runs all day on heavy structural fabrication passes without thermal overload stops.
- 20kW 3-Phase & 12kW 1-Phase Generator: Powers heavy industrial equipment and high-amp plasma cutters simultaneously.
- Kubota V2403 Liquid-Cooled Diesel Engine: Industrial 4-cylinder engine provides high mechanical torque with low fuel consumption.
- ArcReach Digital Cable Communication: Regulates voltage and wire feed speed across standard weld cables without control cords.

Production Efficiency & Reduced Post-Weld Cleanup

This 500-amp diesel powerhead gives structural steel fabricators and heavy equipment mechanics extreme deposition capacity and auxiliary electrical power.

- Carbon arc gouging with 3/8-inch carbons washes out cracked welds rapidly, cutting excavator bucket overhaul hours in half.
- A 20kW auxiliary generator eliminates the need to haul separate commercial generators for high-draw plasma cutting machines.
- The heavy-gauge steel cabinet resists jobsite impacts and gravel spray on open mining haul roads.
- Brushless generator rotor design eliminates slip rings and commutator brushes, lowering scheduled maintenance overhead.

Material Capacities & Workshop Integration

Weighing 1,655 pounds dry with an exterior length of 65 inches, this heavy industrial diesel machine mounts across commercial service truck beds and heavy utility trailers.

Commercial Warranty & Preventive Maintenance

- Miller Electric covers the Big Blue 500 generator and electrical power electronics with a 3-Year True Blue warranty.
- The Kubota diesel engine receives 2-Years or 2,000-hour commercial warranty backing through authorized Kubota distributors.

Change engine oil and filter every 250 operating hours with 15W-40 oil, service fuel-water separators monthly, and check generator output studs for heat tightness. Order the Miller Big Blue 500 Kubota engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
