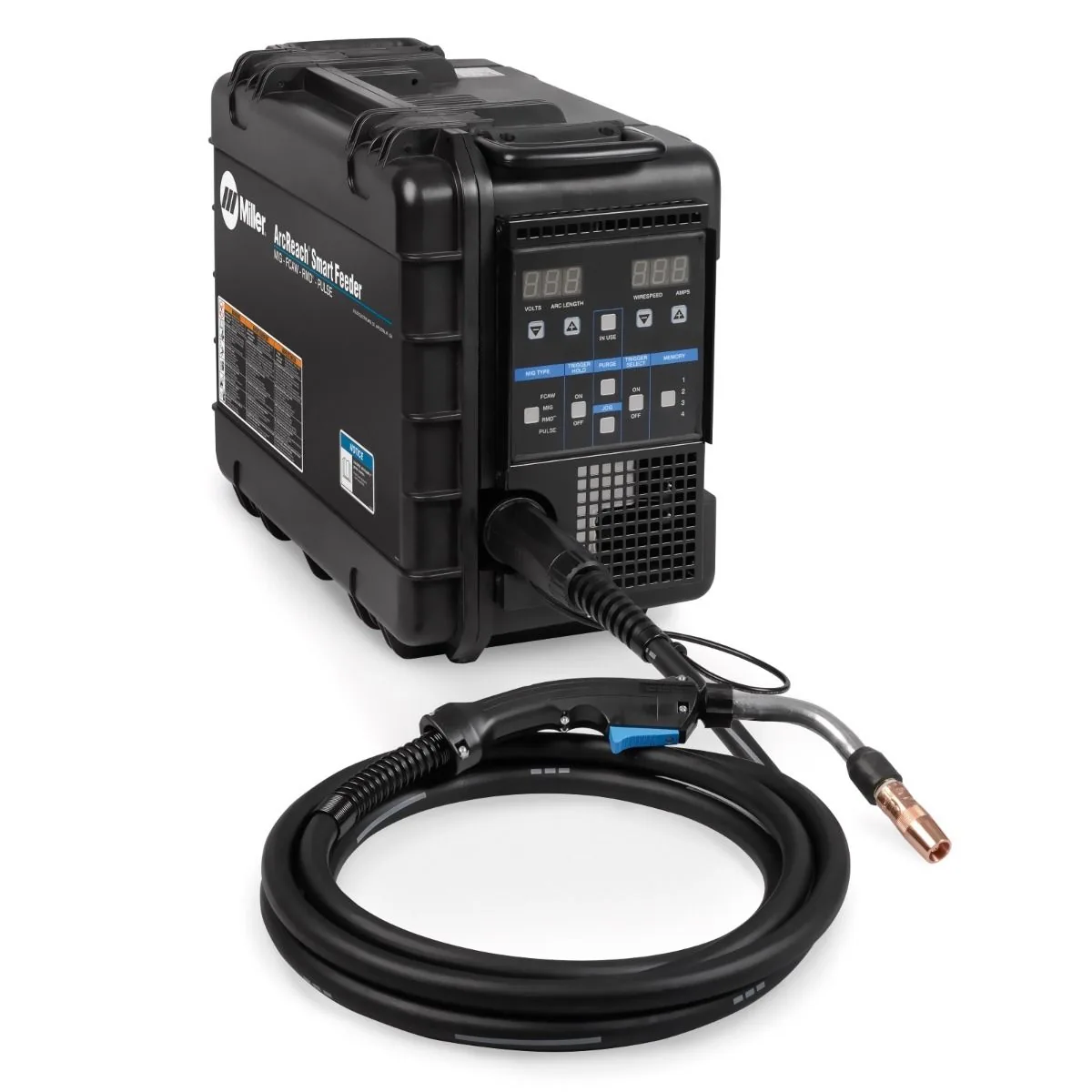

Miller ArcReach Smart MIG Welder – P/N 951733

Eliminate control cable clutter and voltage drops using the Miller ArcReach Smart MIG Welder (P/N 951733) with Regulated Metal Deposition (RMD) for open-root pipe joints. Field pipe welders and shipyard fabricators lose productive hours stringing heavy control cords across work decks to adjust parameters at the power source. This advanced industrial wire feeder system communicates voltage and wire speed commands through standard copper welding cables, allowing operators to adjust parameters right at the pipe joint.

Regulated Metal Deposition technology controls current in micro-seconds during short-circuit transfer, producing a stable, calm puddle that bridges open root gaps on pipe without backing gas. Advanced pulsed MIG modes lower heat input, permitting out-of-position vertical-up welds on thin-wall alloy pipe without joint sagging or burn-through. The heavy-duty wire drive housing supports 12-inch 33-pound wire spools, while impact-resistant polymer panels protect the internal feed motor from jobsite moisture.

Engine Architecture of Miller ArcReach Smart MIG

- ArcReach Digital Cable Communication: Regulates voltage and wire feed speed across standard weld cables without control cords.
- Regulated Metal Deposition (RMD) Mode: Deposits uniform open root passes on pipe with zero spatter, replacing slow TIG roots.
- Pulsed MIG Pipe Welding Capability: Lowers heat input on vertical and overhead passes to eliminate pipe weld sagging.
- Heavy-Duty 4-Roll Drive Assembly: Feeds solid steel, stainless, and metal-cored wire up to 780 IPM without slippage.
- Full Digital Meter Displays: Shows preset and actual voltage, wire feed speed, and arc time metrics at the feeder.
- Rugged Sealed Enclosure: Resists water spray, jobsite mud, and rough rigging transport across industrial decks.

Commercial Advantages & Heavy-Duty Build

Built for structural steel erectors and process pipe contractors, this smart wire feed package accelerates joint completion speed.

- ArcReach technology eliminates fragile control cables, stopping the primary cause of jobsite wire feeder maintenance calls.
- RMD root-pass welding eliminates backing rings on carbon steel pipe, cutting joint preparation labor and shielding gas costs.

Property Clearance & Trailer Packing

Weighing 50 pounds dry with an exterior length of 21.5 inches, this portable smart feeder fits through standard industrial manholes and hangs from structural scaffolding.

Warranty Protection & Routine Upkeep

- Miller Electric backs the ArcReach Smart Feeder with a 3-Year True Blue warranty covering internal drive motors and electronic controls.

Blow dry compressed air through the wire drive compartment weekly, check drive roll alignment pins monthly, and inspect gun contact tips after heavy spray runs. Order the Miller ArcReach Smart MIG Welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
