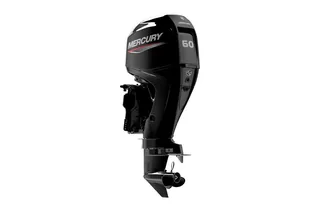

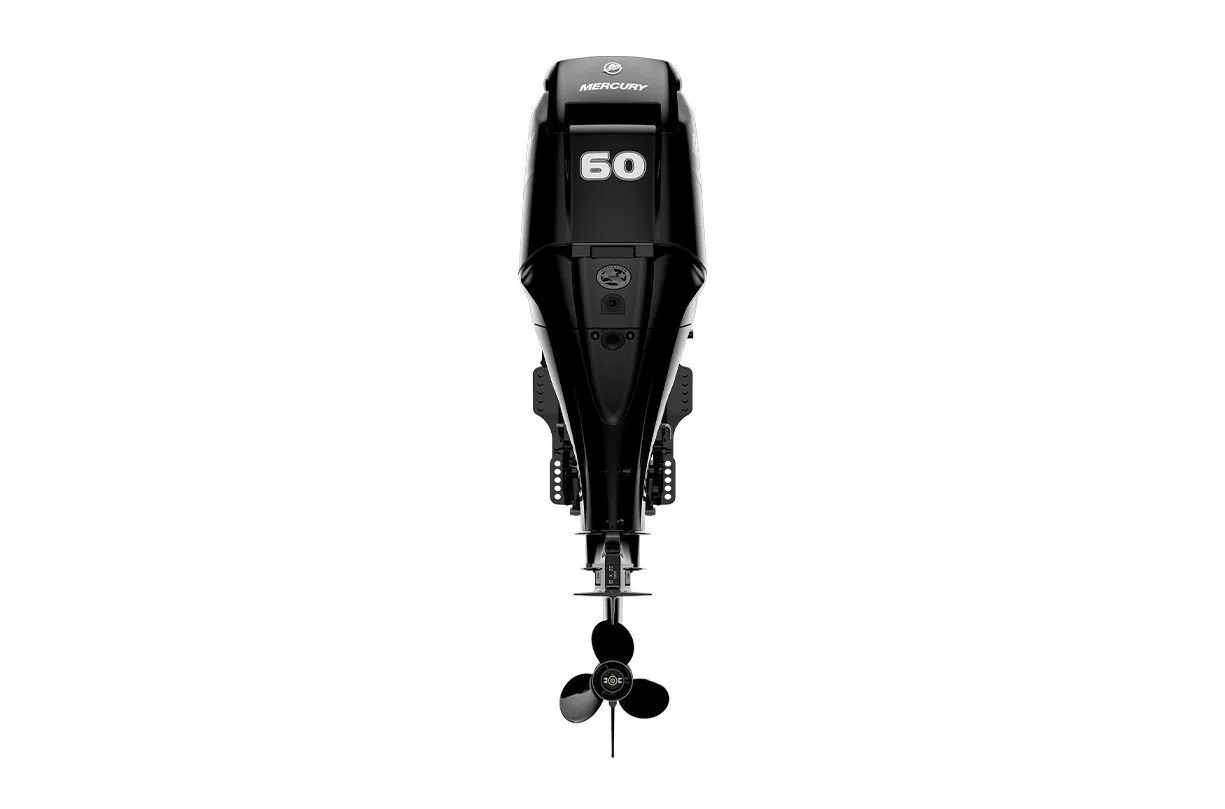

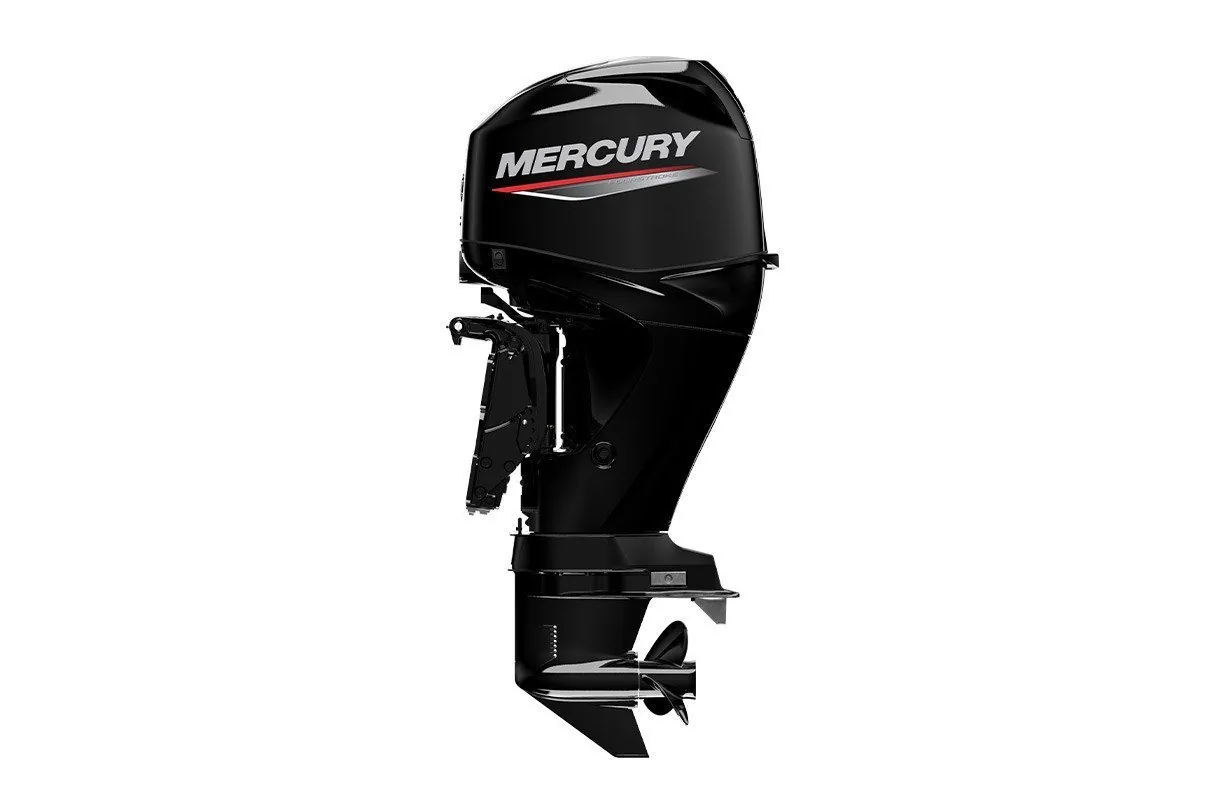

Mercury 60ELPT 60HP – Command Thrust Four Stroke 20-Inch Shaft

Mercury 60ELPT 60HP EFI Command Thrust

The Mercury 60ELPT is an advanced 60HP FourStroke outboard featuring the high-thrust Command Thrust gearcase for superior boat control on center consoles and pontoons in the US recreational market. Utilizing a robust 995cc inline 4-cylinder SOHC architecture and weighing 260 lbs, this engine offers displacement-driven torque for heavier vessels. This 20-inch long shaft model is configured with a remote mechanical helm control and integrated Power Trim & Tilt, making it the premier choice for boaters requiring professional outboard propulsion systems with digital EFI precision. Our marine engines provide the mechanical integrity necessary for both tournament fishing and coastal navigation.

Operational peak performance for this Mercury 60HP occurs between 5500 and 6000 RPM. The advanced Computer Controlled EFI system is designed to support immediate throttle response and outstanding thermal efficiency, eliminating the cold-start struggles of traditional engines. Built with American engineering excellence, the 2.33:1 Command Thrust ratio provides a distinct mechanical advantage, translating the 4-cylinder torque curve into rapid hole-shot acceleration in choppy coastal harbors.

Technical Specifications of Mercury 60ELPT

Engine type Inline 4-Cylinder SOHC

Displacement 995 cc (60.8 cu in)

Horsepower 60hp @ 5750 RPM

Full-throttle rpm range 5500 – 6000 RPM

Fuel induction Electronic Fuel Injection (EFI)

Alternator output 18 Amp (226 Watt)

Gear ratio 2.33:1 (Command Thrust)

Shaft length 20 inch

Dry weight 260 lbs (118 kg)

Trim System Power Trim & Tilt

Command Thrust Performance Advantage

The 60HP Command Thrust is designed to swing a larger propeller, delivering the hydrodynamic bite required for heavy-displacement boats. This “bigger is better” philosophy in the gearcase helps support that pontoon owners and fiberglass boat Operators may notice strong acceleration and steady cruising speeds, making it the superior choice for hulls navigating through unpredictable coastal chop and strong harbor currents.

Remote Helm Precision

Designed for center consoles where the captain is stationed away from the transom, this remote mechanical model allows for integration with traditional binnacle controls. This provides a professional and comfortable operating experience, allowing for precise throttle adjustments and gear engagement during high-speed transit in the American maritime environment.

Power Trim & Tilt Authority

The integrated Power Trim & Tilt system allows the captain to precisely adjust the running angle of the hull from the helm. This optimizes fuel efficiency, increases top speed, and allows for much better boat control in varying water conditions, from calm inland lakes to choppy coastal bays and tidal inlets.

Mercury Factory Warranty

Mercury Marine protects this 60HP outboard with a comprehensive 3-Year Limited Warranty for US owners. This factory-backed coverage helps support access to genuine replacement parts and certified technicians, reflecting a deep commitment to quality and long-term maritime reliability for recreational and commercial boaters.

Maintenance & Longevity

Maintaining clean oil in the 3.0L integrated wet sump lubrication system is vital for preserving tight engine tolerances over time. Always flush the cooling system with fresh water after every saltwater excursion.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
