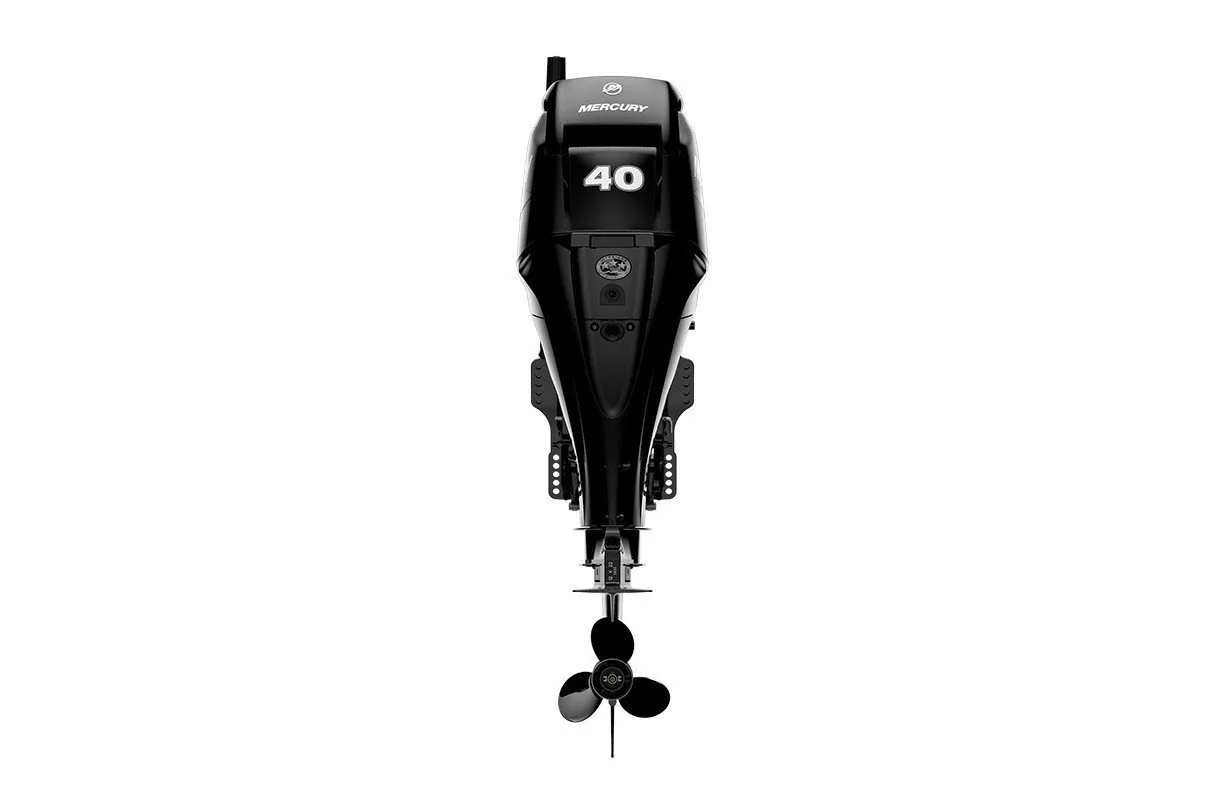

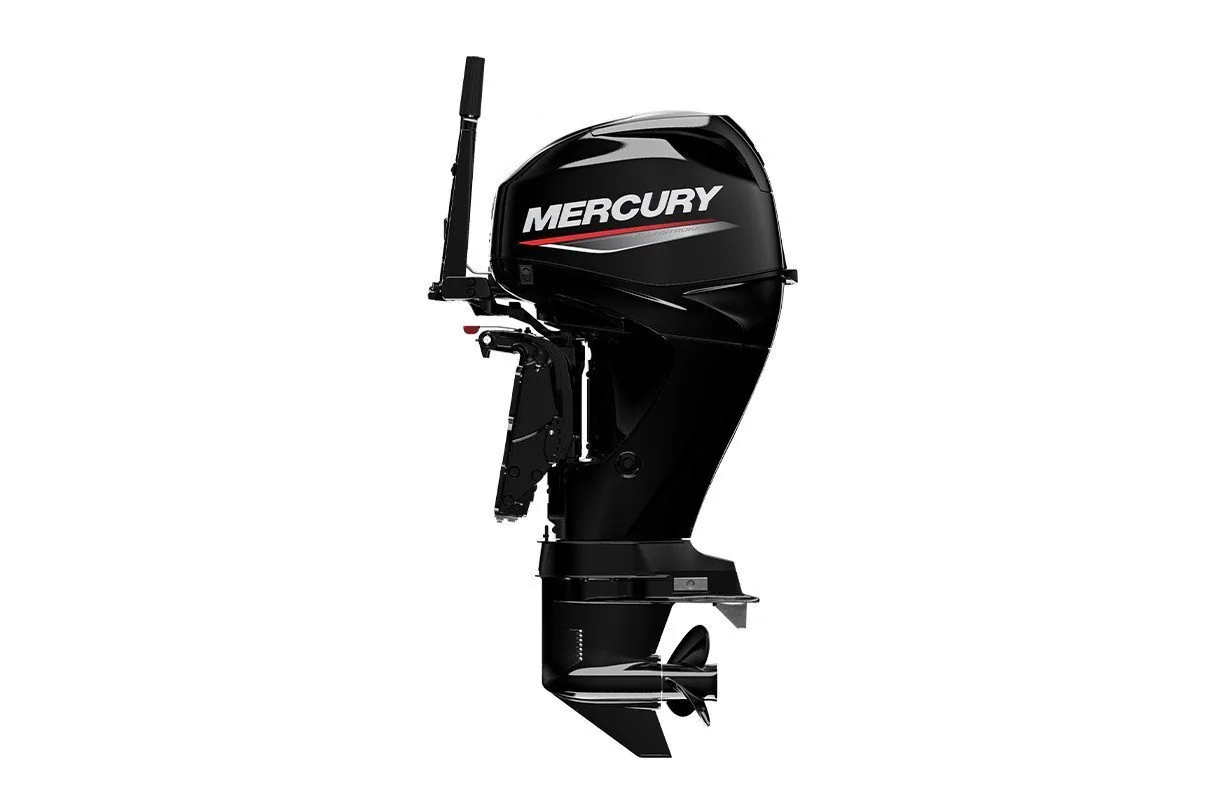

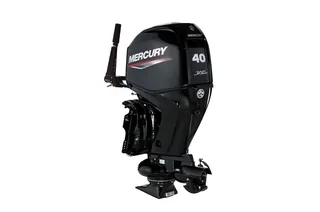

Mercury 40ELHPT SeaPro 40HP – Commercial Tiller Command Thrust

Mercury 40ELHPT SeaPro 40HP Commercial

The Mercury 40ELHPT SeaPro is a formidable 40HP commercial outboard engineered for unrelenting reliability and heavy-load authority in the United States maritime sector. Featuring a 995cc inline 4-cylinder architecture and the high-thrust Command Thrust gearcase, this engine delivers phenomenal displacement-driven torque. This 20-inch long shaft model is configured with a Big Tiller handle and Power Trim & Tilt. Our reliable marine outboard engines provide the mechanical dependability and industrial-grade strength required for rigorous daily commercial tasks and heavy transport missions.

Maximum operational performance for the Mercury 40HP SeaPro is calibrated within a focused 4500 to 5500 RPM band, prioritizing offshore engine longevity and sustained torque over top speed. The specialized 2.33:1 Command Thrust gear ratio allows the engine to swing a larger propeller, providing hydrodynamic leverage for pushing heavy displacement hulls. Proudly manufactured in the USA, this corrosion-resistant marine engine incorporates advanced vibration dampening to helps support a smooth, professional ride during long commercial shifts.

Technical Specifications of Mercury 40ELHPT SeaPro

Engine type Inline 4-Cylinder 8-Valve SOHC

Displacement 995 cc (60.8 cu in)

Horsepower 40hp @ 5000 RPM

Full-throttle rpm range 4500 – 5500 RPM

Fuel induction Electronic Fuel Injection (EFI)

Alternator output 18 Amp (226 Watt)

Gear ratio 2.33:1 (Command Thrust)

Shaft length 20 inch

Dry weight 260 lbs (118 kg)

Controls Big Tiller Handle

995cc Inline-4 Displacement

The immense 995cc displacement of this 4-cylinder powerhead means significantly less stress on internal components to produce its 40 horsepower compared to smaller engines. Calibrated for heavy-duty commercial use, it delivers the strong low-end grunt that commercial mariners depend on when navigating strong tidal flows and hauling heavy fishing or work gear in the American saltwater environment.

Command Thrust Gearcase Authority

The defining feature of this SeaPro model is the Command Thrust gearcase. With its specialized 2.33:1 ratio and deeper-reaching propeller, it provides leverage to lift heavy boats onto plane and hold them there at lower speeds. This improves fuel efficiency and boat control for commercial operators handling large aluminum barges or heavy fiberglass workboats.

Big Tiller Ergonomics

Equipped with Mercury’s Big Tiller handle, this outboard provides commercial-grade control. The extended handle length offers increased leverage for steering heavy vessels, while the conveniently placed Power Trim switch and shift lever helps support, fatigue-free operation during long shifts at the helm in marine coastal conditions.

Mercury SeaPro Warranty

This 40HP SeaPro outboard is backed by Mercury’s dedicated commercial warranty program for American owners. This factory-level protection helps support long-term peace of mind and grants access to genuine parts through a vast nationwide marine dealer network, minimizing critical vessel downtime during industrial operations.

Maintenance & Longevity

Maintaining clean oil in the 3.0L integrated wet sump system is vital for preserving engine tolerances over thousands of operating hours. Always flush the cooling system with fresh water after every saltwater mission.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
