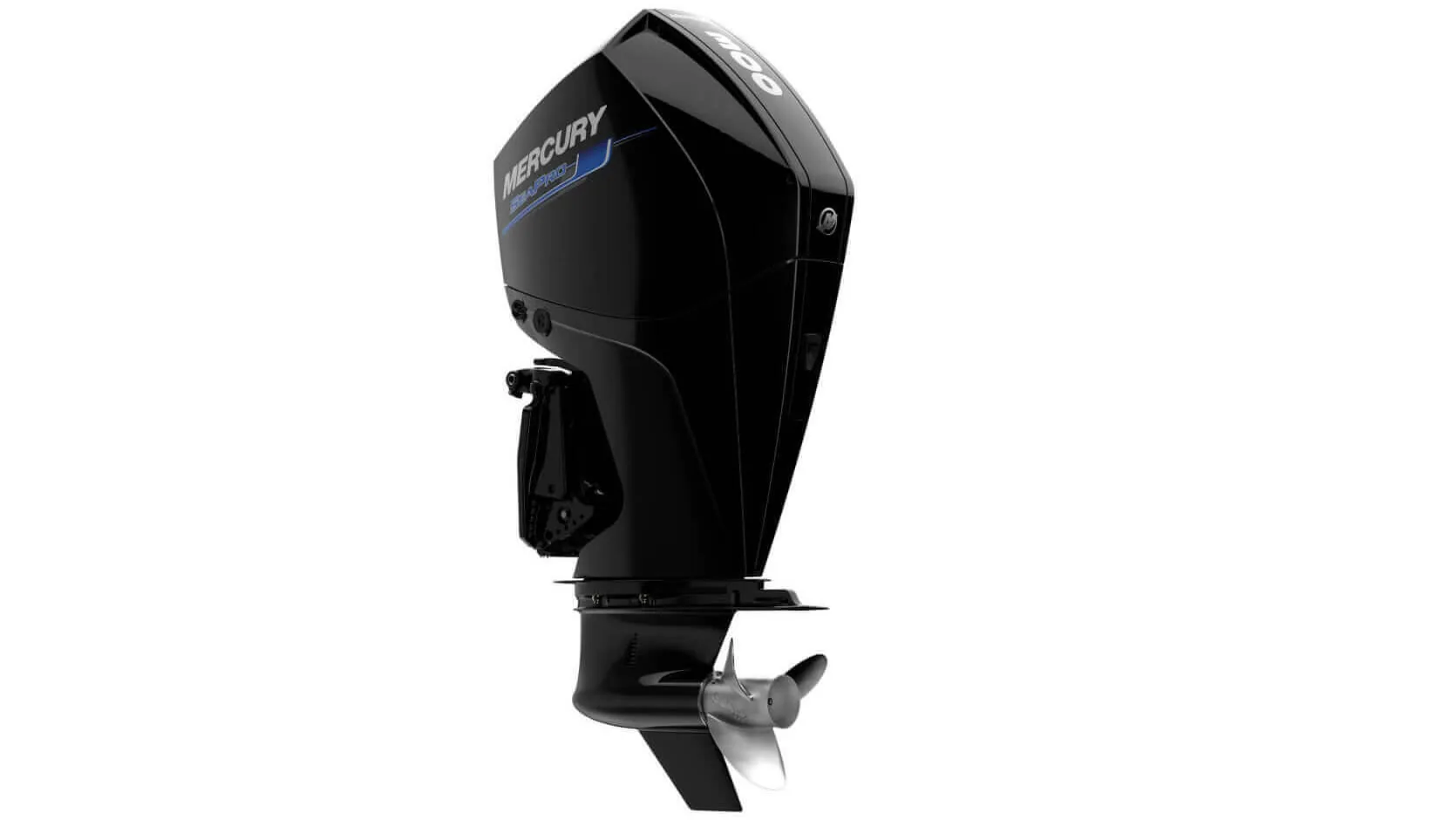

Mercury 300XXL SeaPro Outboard Motor

2022 Mercury 300XXL SeaPro® Commercial DTS CMS

ENGINEERED FOR EXTREME RELIABILITY AND DURABILITY

Mercury has calibrated its new V8 and V6 SeaPro outboards to generate ample torque at lower rpm levels, enabaling users to work their outboards hard without placing excess stress on the engine.

- Horsepower: 300
- Engine type: V8
- Displacement (CID/CC): 279 CID
- Displacement (L): 4.6
- Cylinder Configuration: V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
- Bore and stroke: 3.6 in x 3.4 in / 92 mm x 86 mm
- Full throttle RPM: 4800-5600
- Shaft length: 30 “
- Gearcase ratio: 1.75:1
- Alternator amp / Watt: 85-amp (1071 Watt) with Idle Charge
- Maximum Trim Range: 20° (-6° to 14°)
- Maximum Tilt Range: 73° (-6° to 67°)
- Dry weight: 527 (Lightest model available) lbs

- Mid Section: Conventional MidSection
- Air induction: Performance-Tuned Long-Ruer Intake Manifold
- Engine protection operator warning system: SmartCraft Engine Guardian
- Compatible with SmartCraft digital technology (DTS ): Yes
- Starting: Electric Start with SmartStart Protection
- Controls: Digital Throttle & Shift (DTS) (sold separately)
- Steering: Hydraulic (optional), Power (optional)
- Fuel induction system: Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
- CARB star rating: 3
- Ignition: SmartCraft PCM 112 Digital Inductive
- Lubrication system: Integrated wet sump
- Cooling system: Water-cooled with thermostat
- Gear shift: F-N-R
- Gearcase: 5.44″
- Trim system: Power Trim & Tilt
- Exhaust system: Through prop

- Recommended fuel: Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
- Recommended oil: NMMA Certified FCW SAE 25W-40 (Optional 10W-30 for Cold Conditions)
- Oil Capacity: 7.0 Quarts / 6.6 Liters

Equipment

Please ask our sales staff for a propeller that fits the best to your needs!

- Propeller: not included
