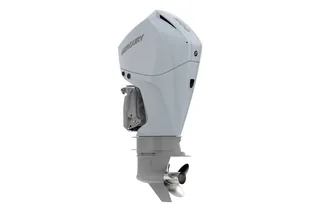

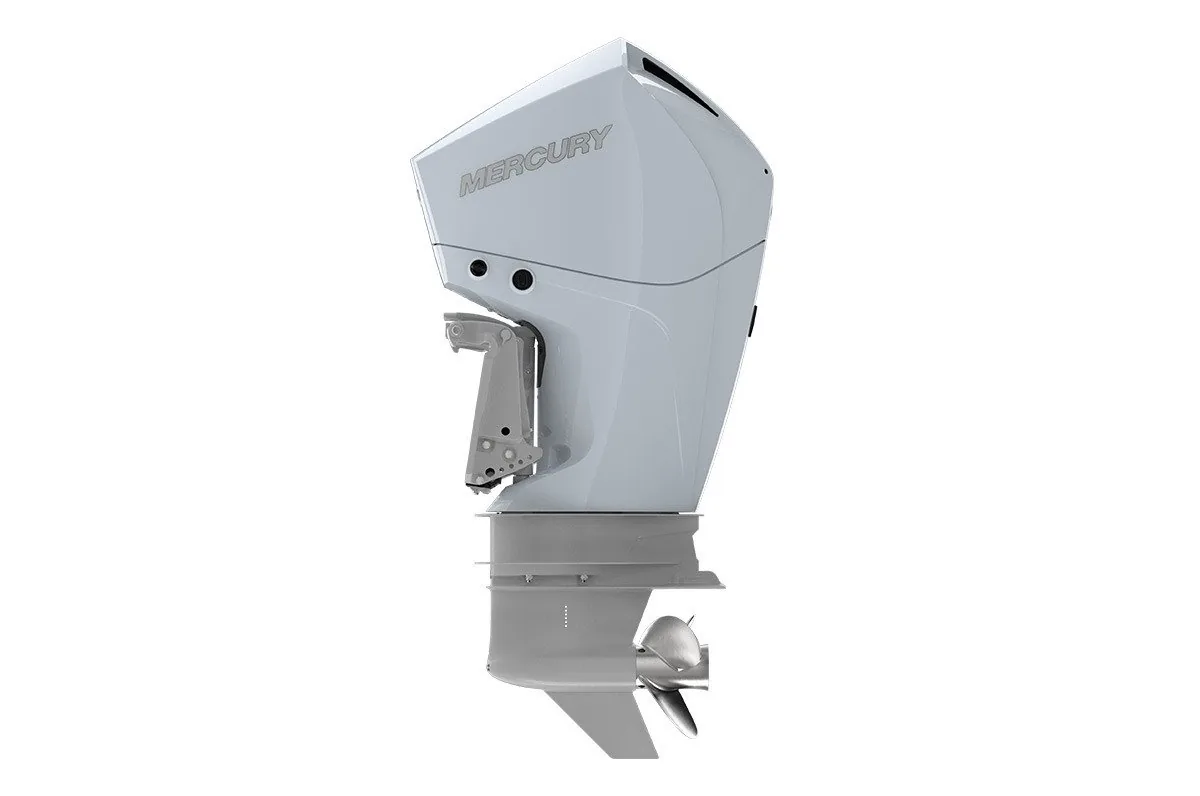

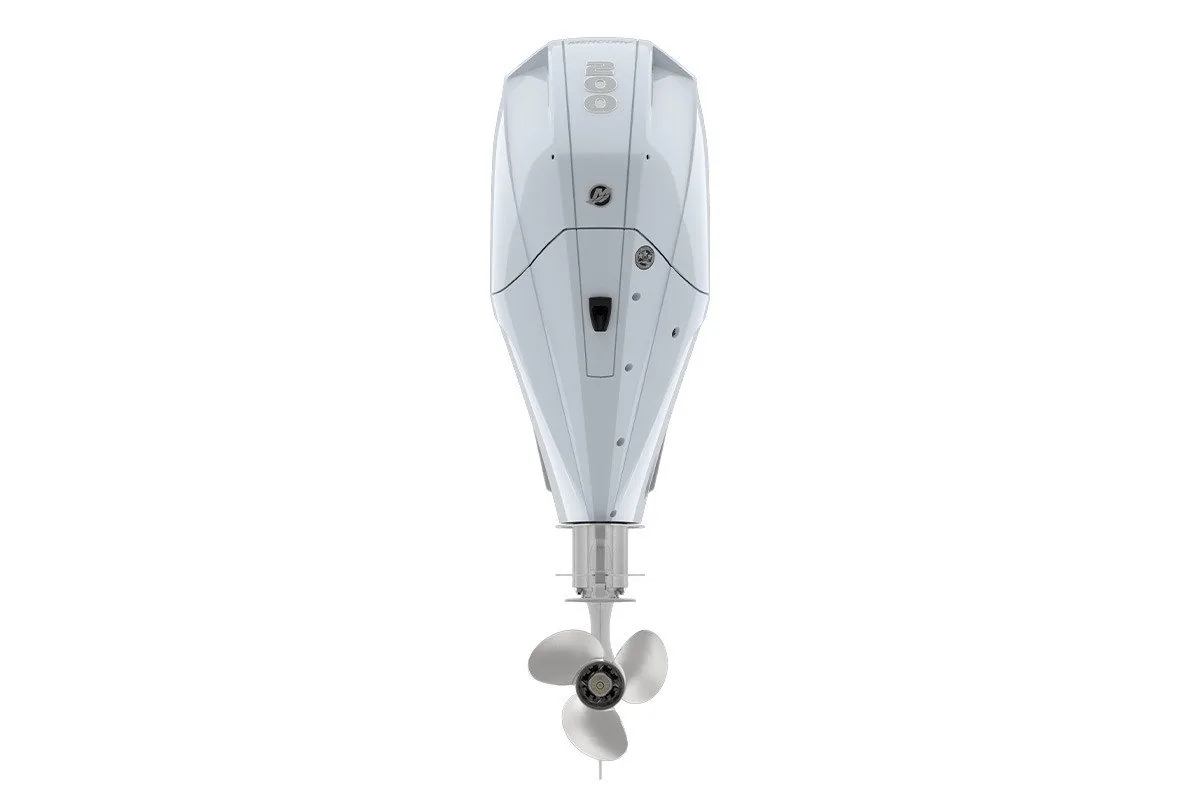

With a 25-inch shaft, the Mercury 200XL is a 200 HP V6 FourStroke outboard for boats whose builder specifies an extra-long transom and permits the installed engine weight. It can be evaluated for certain center consoles, cabin boats, offshore fishing hulls, and recreational vessels when their capacity plate, steering system, fuel capacity, and remote-rigging requirements support this configuration.

Measure vertically at the actual engine mounting location, from the transom mounting surface to the hull bottom below it, before confirming the 25-inch shaft. A bracket, setback, motor well, or stepped transom can change the required height. Actual speed depends on hull form, beam, dry weight, passenger load, propeller pitch, engine height, trim, water conditions, and operating RPM rather than horsepower alone.

Key Features and Engine Technology of Mercury 200XL

- The 25-inch extra-long shaft requires transom measurement at the actual engine location, particularly where brackets or setbacks affect mounting geometry.
- A 200 HP rating requires capacity-plate and installed-engine-weight approval before matching this outboard to a vessel.
- The supplied V6 FourStroke designation identifies the engine family, requiring serial-number confirmation for exact rigging and accessory compatibility.
- FourStroke technology is the listed engine configuration, while actual fuel use remains dependent on hull resistance, load, propeller, and operating conditions.
- Remote rigging requires compatible steering, throttle, shift, electrical harness, gauge, fuel-system, and propeller components for the completed installation.

Why Choose Mercury 200XL

Choose this outboard when the boat manufacturer calls for an extra-long 25-inch shaft and approves a 200 HP V6 FourStroke within the vessel’s horsepower and engine-weight limits. It may be appropriate for specified center-console, cabin, offshore fishing, and recreational hulls, but boat category is not proof of fit. Confirm the transom, steering, rigging, propeller, fuel capacity, and normal operating load before purchasing.

- Matches approved extra-long-transom vessels requiring a 200 HP V6 FourStroke configuration.
- Requires serial-number-confirmed controls, gauges, steering, fuel, and propeller rigging components.
- Connects fuel use and speed to completed hull setup, load, and operating conditions.

Warranty, Support and Maintenance

For eligible Mercury FourStroke outboards used for pleasure purposes in the United States, Mercury lists a 3-Year Limited Warranty and a separate 3-Year Corrosion Warranty. Commercial use receives a 1-Year Limited Warranty without corrosion coverage. Eligibility depends on current Mercury terms, product registration, and actual use classification. Use the engine serial number to locate the applicable Operation, Maintenance and Installation Manual and compatible genuine Mercury parts. Follow its scheduled service, gearcase, fuel-system, corrosion-prevention, and maintenance-record requirements. Mulmotor provides product-information support before purchase and assistance with order-related questions.
