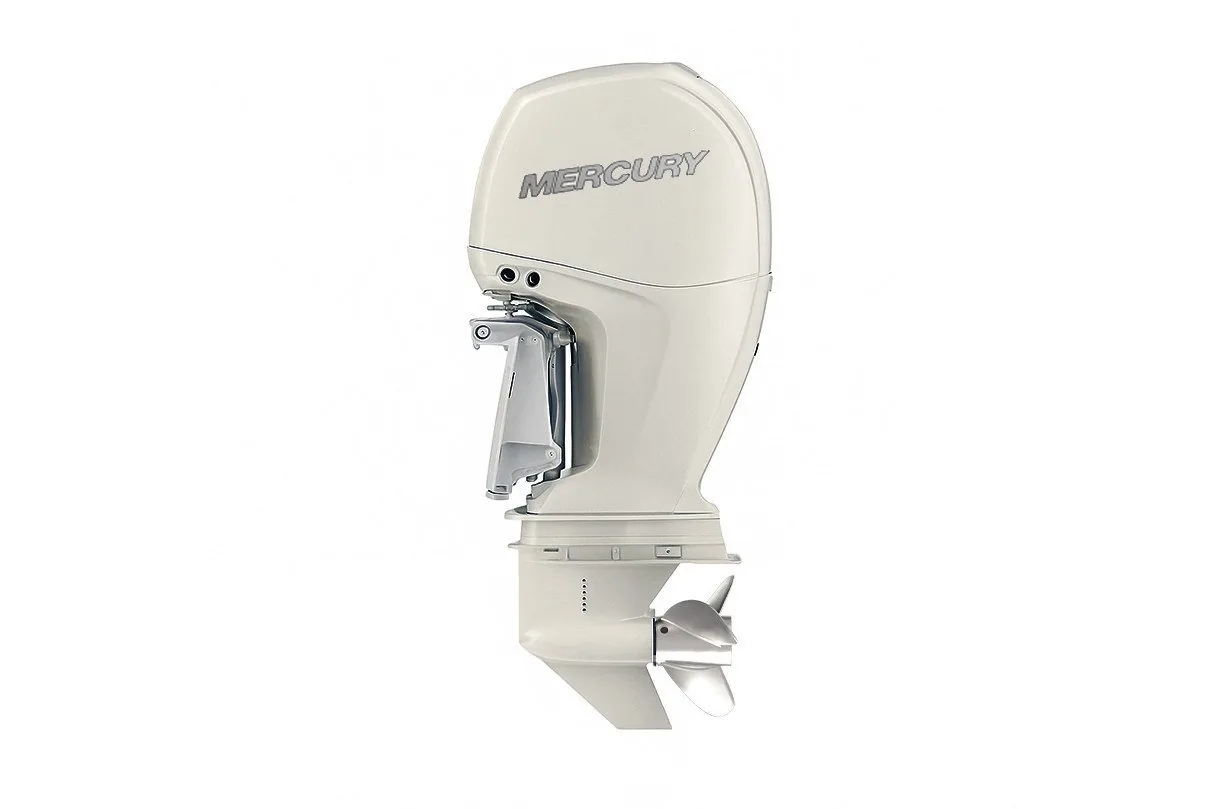

Mercury 150L Pro XS 150HP – High Performance Four Stroke 20-Inch

Mercury 150L Pro XS 150HP High Performance

The Mercury 150L Pro XS is an 150HP FourStroke outboard engineered for strong acceleration and high-speed tournament performance in the US recreational market. Utilizing a 3.0L inline four-cylinder SOHC architecture and a dry weight of 454 lbs, this engine boasts a superior power-to-weight ratio for lightweight performance hulls. This 20-inch long shaft model is configured for standard rotation and is a practical power source for tournament bass boats and high-speed bay skiffs. Our dependable outboard propulsion systems provide the trusted mechanical precision necessary for competitive maritime operation.

Operational peak performance for this Mercury Pro XS is aggressively maintained across the elevated 5200 to 6000 RPM range, utilizing Computer Controlled Multi-Port EFI for advanced thermal efficiency. The performance-tuned 2.08:1 gear ratio is strategically designed to deliver hole-shot acceleration and high top-end speeds. Engineered in the USA, this corrosion-resistant outboard includes stiffer high-performance engine mounts to helps support razor-sharp handling at high speeds across choppy freshwater lakes and coastal bays.

Technical Specifications of Mercury 150L Pro XS

- The 3.0L 8-valve SOHC architecture provides displacement for strong acceleration and instant throttle response.
- Performance-tuned 2.08:1 gearcase is engineered for hole-shots and maximum top-end speed on lightweight hulls.
- Elevated 5200-6000 RPM operating range allows the engine to achieve higher top speeds than standard 150HP models.
- Computer Controlled Multi-Port EFI dynamically adjusts the fuel mixture for thermal efficiency and power delivery.
- A robust 60 Amp alternator helps support high-draw tournament fishfinders and livewell pumps remain fully charged.
- SmartCraft ECM 70 Digital Inductive ignition provides exact spark timing for flawless high-speed performance.

3.0L High-Displacement Powerhead

The 3.0L inline four-cylinder SOHC design maximizes combustion efficiency while maintaining a lightweight footprint. This immense displacement translates into reliable, strong low-end torque that tournament anglers depend on when blasting out of the hole to reach distant fishing spots first.

Performance 2.08:1 Gearcase

The defining feature of the Pro XS is its performance-tuned lower unit. Operating at a 2.08:1 ratio, it allows the engine to spool up faster into its elevated RPM band. This minimizes time-to-plane and maximizes hydrodynamic lift for high-speed bass boats.

Computer Controlled EFI

Mercury’s advanced Electronic Fuel Injection continuously monitors atmospheric variables to deliver the appropriate air-fuel ratio. This is designed to support instant, hesitation-free throttle response and prevents engine bogging during rapid acceleration scenarios while navigating tricky tournament waterways.

Tournament Electrical Output

Equipped with a 60 Amp alternator generating 756 Watts, this engine easily supports the heavy electrical demands of modern tournament angling. It keeps multiple 12-inch sonar screens, shallow water anchors, and livewell aeration systems running flawlessly all day.

Mercury 3-Year Warranty

This 150HP Pro XS outboard is backed by a comprehensive 3-Year Limited Warranty for American owners. This factory-level protection helps support long-term peace of mind and grants access to genuine parts through a vast nationwide marine dealer network.

High-Speed Bass Boat Match

This outboard is a practical power solution for fiberglass bass boats, multi-species aluminum rigs, and coastal bay boats. It provides the acceleration and top-end speed needed for competitive angling and rapid coastal transit.

Maintenance & Longevity

Regular inspection of the 6.0L integrated wet sump lubrication system is critical for maintaining internal engine tolerances at high RPMs. Always flush the cooling system with fresh water after every excursion.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
