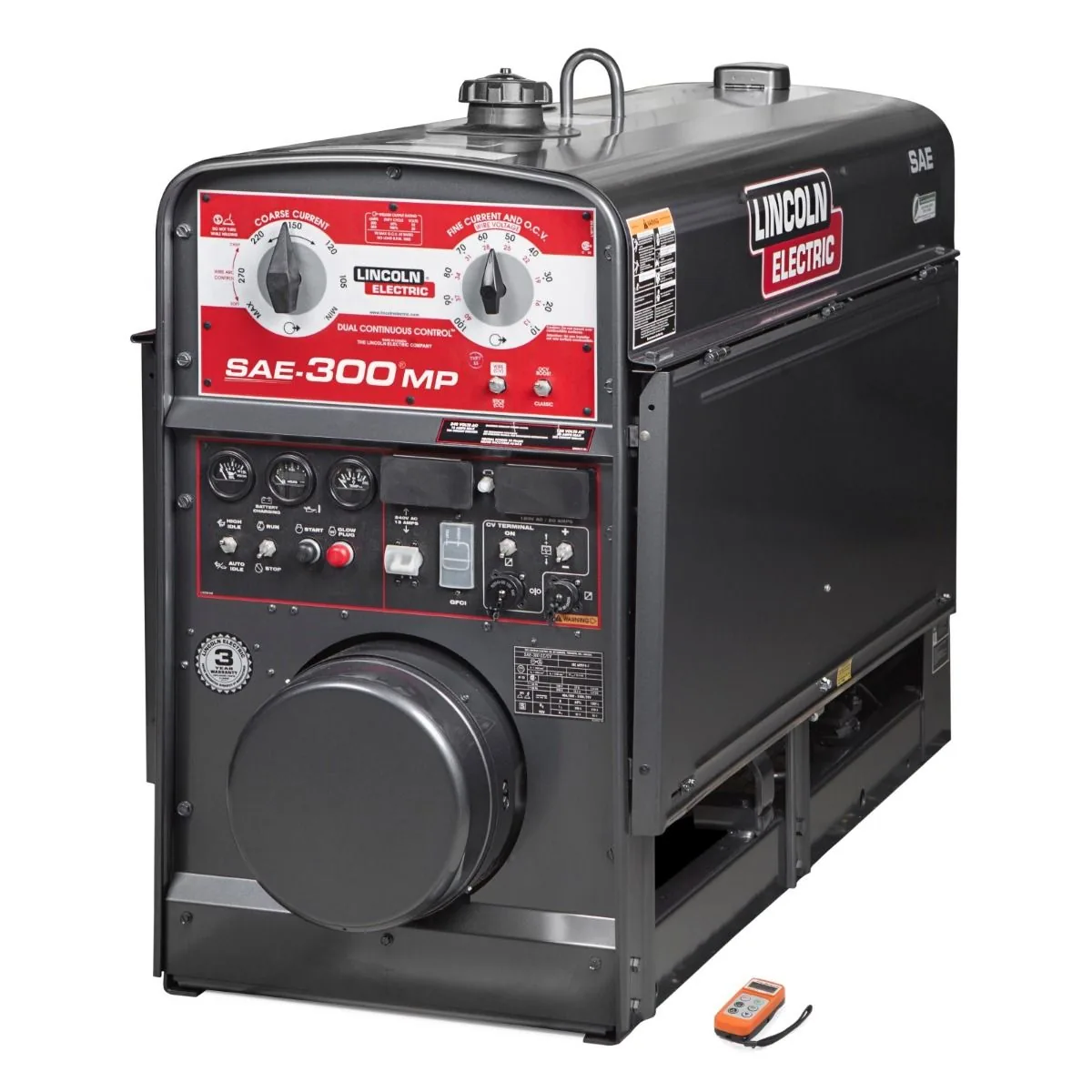

Lincoln SAE 300 MP Perkins Engine Driven Welder Generator – P/N K4090-2

Depositing downhill cellulosic pipe passes, the Lincoln SAE 300 MP Perkins engine driven welder generator (P/N K4090-2) supplies pure DC generator arc characteristics across high-pressure transmission lines. Pipeline contractors face severe weld rejection rates when modern inverters create arc wander or harsh puddle freeze on high-strength pipe joints. This heavy pipeline machine pairs all-copper generator coils with a liquid-cooled Perkins 404D-22 4-cylinder diesel engine, delivering 300 amps of pure DC current at 60 percent duty cycle.

Pure DC generator technology produces a buttery, soft arc that wets out 5/32-inch 6010 root passes without undercut or slag entrapment. The large-displacement 2.2-liter Perkins diesel engine runs at a slow 1,800 RPM, lowering fuel burn and operating noise on remote right-of-way spreads. Dual continuous control dials let you tune puddle freeze precisely for vertical-down travel, while 3,000 watts of auxiliary AC power runs pipe beveling machines and grinders.

Key Engineering Features of Lincoln SAE 300 MP (P/N K4090-2)

- Pure DC Generator Architecture: Uses all-copper generator coils and commutator to produce the classic soft pipeline welding arc.
- 300A DC Output at 60% Duty Cycle: Fuses heavy-wall transmission pipe joints with 6010, 7010, and 8010 cellulosic electrodes.
- Perkins 404D-22 4-Cylinder Diesel Engine: Large 2.2-liter displacement operates at low 1,800 RPM for exceptional mechanical torque.
- Dual Continuous Control Dials: Provides independent control of current and voltage for precise puddle freezing on downhill joints.
- All-Copper Windings: Delivers superior electrical conductivity and thermal heat dissipation on cross-country pipelines.
- 3,000-Watt Auxiliary AC Generator: Delivers 120V and 240V power for pipe facing tools, grinders, and preheating torches.

Field Durability & Jobsite Power Delivery

Built for remote pipeline right-of-way construction, this heavy diesel-drive machine withstands mud, snow, and rough terrain transit.

- All-copper generator construction produces an ultra-smooth DC arc that prevents root pass undercut and porosity on high-yield pipe.
- Low 1,800 RPM operating speed cuts diesel fuel consumption significantly compared to high-speed 3,600 RPM welding rigs.
- Liquid-cooled Perkins 4-cylinder diesel engine provides decades of dependable operation across remote cross-country spreads.

Plate Thickness Clearance & Field Portability

Weighing 1,440 pounds dry with an exterior length of 63.8 inches, this heavy pipeline machine mounts securely on four-wheel road trailers or custom flatbed welding rigs.

Warranty Coverage & Field Maintenance

- Lincoln Electric backs the SAE 300 MP generator and copper windings with a 3-Year limited commercial warranty.
- Perkins covers the 404D-22 diesel engine through a 2-Years or 2,000-hour factory warranty through authorized diesel distributors.

Execute diesel engine oil and filter changes every 100 operating hours with 15W-40 oil, service fuel-water separators monthly, and inspect copper commutator brushes for wear every 500 hours. Order the Lincoln SAE 300 MP Perkins engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
