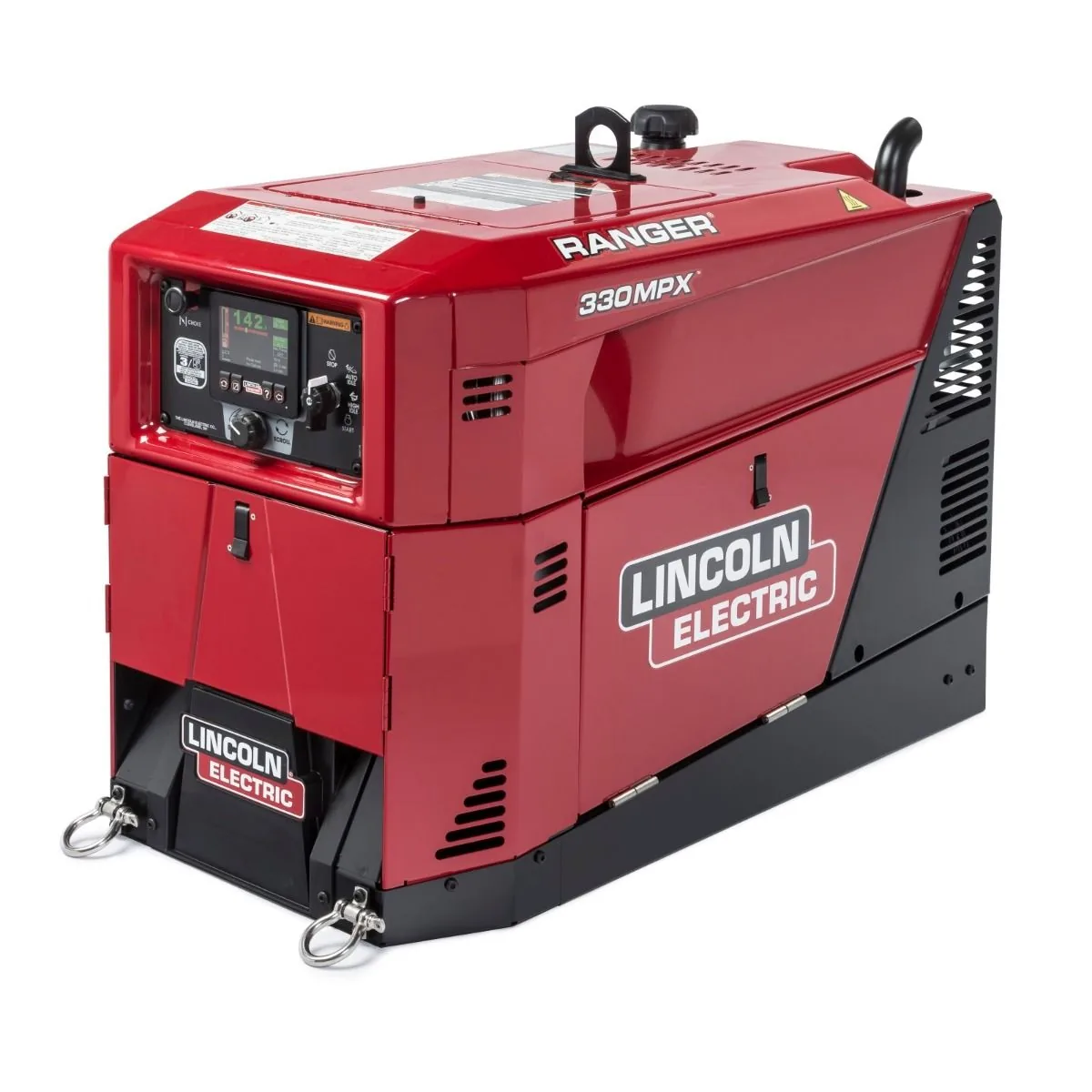

Lincoln Ranger 330MPX Kohler Engine Driven Welder Generator – P/N K4779-1

The Lincoln Ranger 330MPX Kohler engine driven welder generator (P/N K4779-1) solves mobile structural welding bottlenecks through 330 amps of continuous arc power and advanced digital parameter management. Structural welding crews lose money when engine drives lack the amperage to run heavy 0.052-inch flux-cored wire or burn out under high-duty-cycle gouging. This premium MPX package delivers 330 amps of pure multi-process current at 100 percent duty cycle, operating with clean sine wave generator power and CrossLinc remote control.

Digital push-and-turn navigation lets operators dial in precise arc parameters on the full-color display, while integrated maintenance meters track oil and filter service intervals automatically. The 10kW clean AC generator runs heavy industrial chop saws, pipe bevelers, and inverter plasma cutters without voltage dropouts. A compact, fully enclosed steel case protects internal electronic boards from jobsite rain and road grime while running up to sixty percent quieter than older engine drives.

Engine Architecture of Lincoln Ranger 330MPX (P/N K4779-1)

- 330A Multi-Process Output at 100% Duty Cycle: Delivers continuous welding current for heavy structural wire and stick passes.
- CrossLinc Technology Integrated: Adjusts arc parameters at the feeder across standard weld leads without control cables.
- 10kW Clean Sine Wave AC Power: Delivers electricity with under 5 percent THD to run sensitive digital electronics safely.
- Digital Color Screen Interface: Shows real-time amperage, voltage, fuel levels, and preventive maintenance countdowns.
- 25HP Kohler Commercial Engine: Heavy-duty overhead valve engine features low oil shutdown and cast-iron cylinder sleeve.
- Whisper-Quiet Sound Dampening: Enclosed cabinet design lowers decibels significantly to meet urban construction noise codes.

Commercial Utility Stamina & Lifespan

Engineered for high-volume structural contractors, this compact 330-amp engine drive maximizes jobsite productivity.

- CrossLinc eliminates control cable failures, stopping the most frequent cause of jobsite wire feeder breakdowns.
- Clean AC power generator runs sensitive diagnostic computers and inverter equipment without voltage harmonic interference.
- High duty cycle allows continuous high-deposition welding on heavy structural columns without thermal cooling stops.

Chassis Integration & Industrial Fitment

Measuring 36.2 inches long and weighing 446 pounds dry, this compact unit fits crosswise in standard pickup beds and mounts on small utility trailers.

Commercial Warranty & Field Maintenance

- Lincoln Electric covers the Ranger 330MPX powerhead and generator stator with a 3-Year factory warranty.

Change oil after the initial 20 operating hours, then maintain 100-hour service intervals using 10W-30 oil. Tap clean the air filter element weekly on dusty jobsites, and check the spark plug gap at 0.030 inches. Order the Lincoln Ranger 330MPX Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
