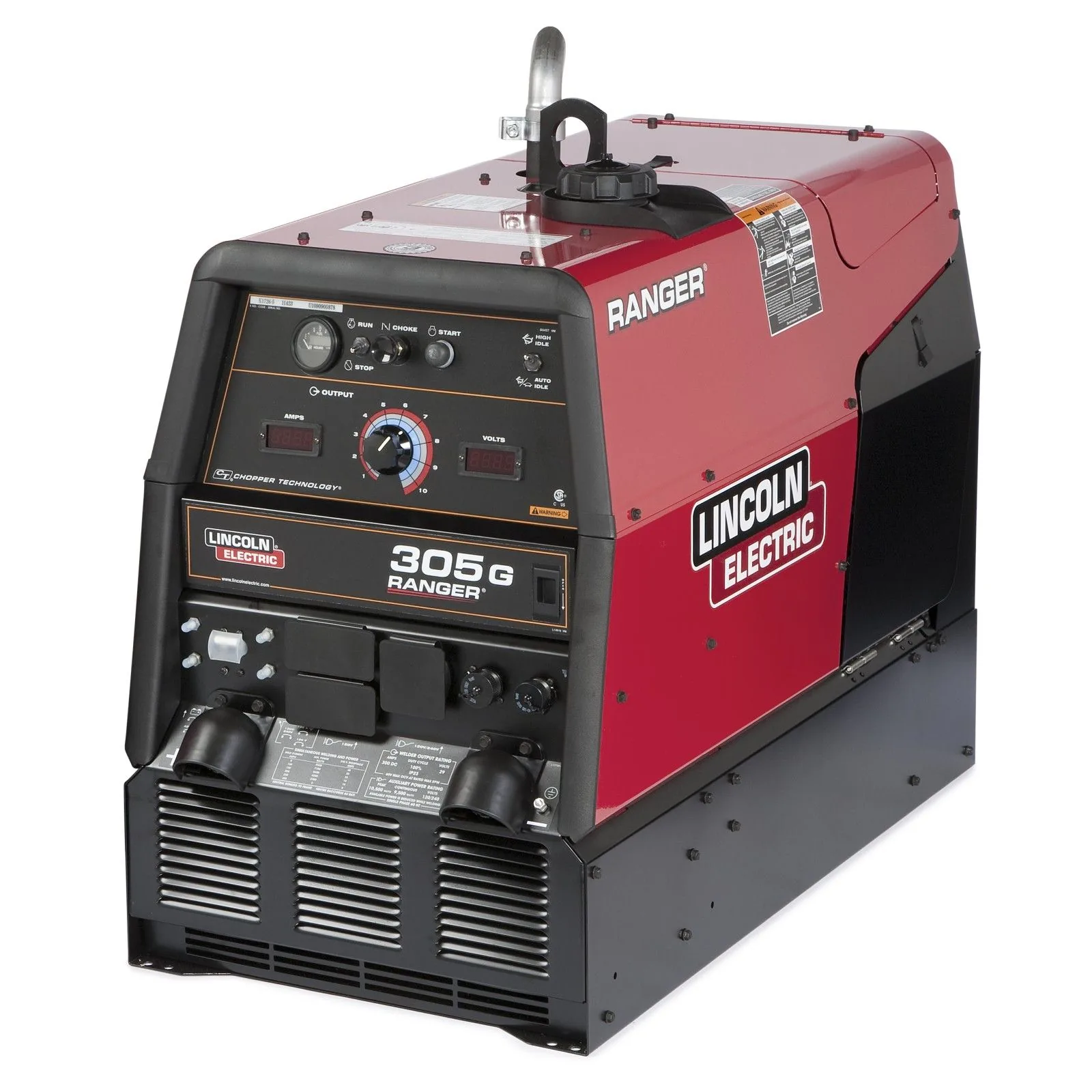

Lincoln Ranger 305G Kohler Engine Driven Welder Generator – P/N K1726-5

Prevent arc wander on downhill cross-country pipe welds using the Lincoln Ranger 305G Kohler engine driven welder generator (P/N K1726-5) with patented Chopper Technology. Pipeline and structural contractors fight unstable arcs and spatter buildup when operating basic engine drives on cellulosic electrodes. This 305-amp commercial machine incorporates Chopper Technology to deliver crisp, focused arc dynamics, paired with a 10,500-watt peak AC generator and a commercial 23HP Kohler Command PRO engine.

Dedicated welding modes include downhill pipe, general stick, DC TIG, and CV wire mode for running flux-cored wire feeders without an add-on module. The 10,500-watt auxiliary generator supplies continuous electrical current to run 9-inch grinders and pipe beveling machines without dropping welding voltage. A fully enclosed steel case protects the Kohler engine and generator assemblies from gravel spray, driving rain, and construction dust.

Key Engineering Features of Lincoln Ranger 305G (P/N K1726-5)

- 305A DC Multi-Process Output: Fuses structural steel and pipe using Stick, Touch Start TIG, MIG, and Flux-Cored processes.
- Patented Chopper Technology: Delivers superior arc starting, low spatter, and precise puddle control on cellulosic pipe passes.
- Dedicated Downhill Pipe Welding Mode: Tailors arc dynamics for 6010 and 7010 electrodes on cross-country transmission lines.
- 10,500-Watt Peak AC Generator: Powers heavy jobsite tools, induction heaters, and high-amp air compressors simultaneously.
- 23HP Kohler Command PRO Engine: Twin-cylinder commercial engine features cast-iron sleeves and automatic low-oil shutdown.
- Fully Enclosed Steel Case: Defends internal components from harsh jobsite weather while lowering operating noise.
- 12-Gallon Fuel Tank Capacity: Keeps field fabrication crews working up to 14 hours on a single tank.
- Digital Amperage and Voltage Meters: Displays exact real-time welding parameters for procedure compliance.

Fleet Productivity & Cost of Ownership

Built for structural steel erectors and pipeline contractor fleets, this 305-amp machine delivers dependable multi-process field power.

- Chopper Technology delivers clean arc puddle wetting, slashing grinding hours between pipeline passes.
- CV wire mode operates suitcase wire feeders directly from the front studs without external voltage-sensing boxes.
- A massive 10,500-watt auxiliary alternator eliminates the need to haul secondary gas generators for helper grinding tools.

Chassis Compatibility & Transport Dimensions

Weighing 510 pounds dry with an exterior length of 42.3 inches, this commercial machine mounts across standard pickup truck beds and secures with four-bolt corner mounts.

Factory Warranty & Maintenance Guidelines

- Lincoln Electric provides a 3-Year factory warranty covering the internal generator stator, rotor, and Chopper modules.
- The Kohler engine receives 3-Year commercial warranty backing through authorized Kohler service centers nationwide.

Change engine oil and filter every 100 operating hours with 10W-30 oil, inspect spark plug gaps at 0.030 inches, and clean dirt from the cooling fins monthly. Order the Lincoln Ranger 305G Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
