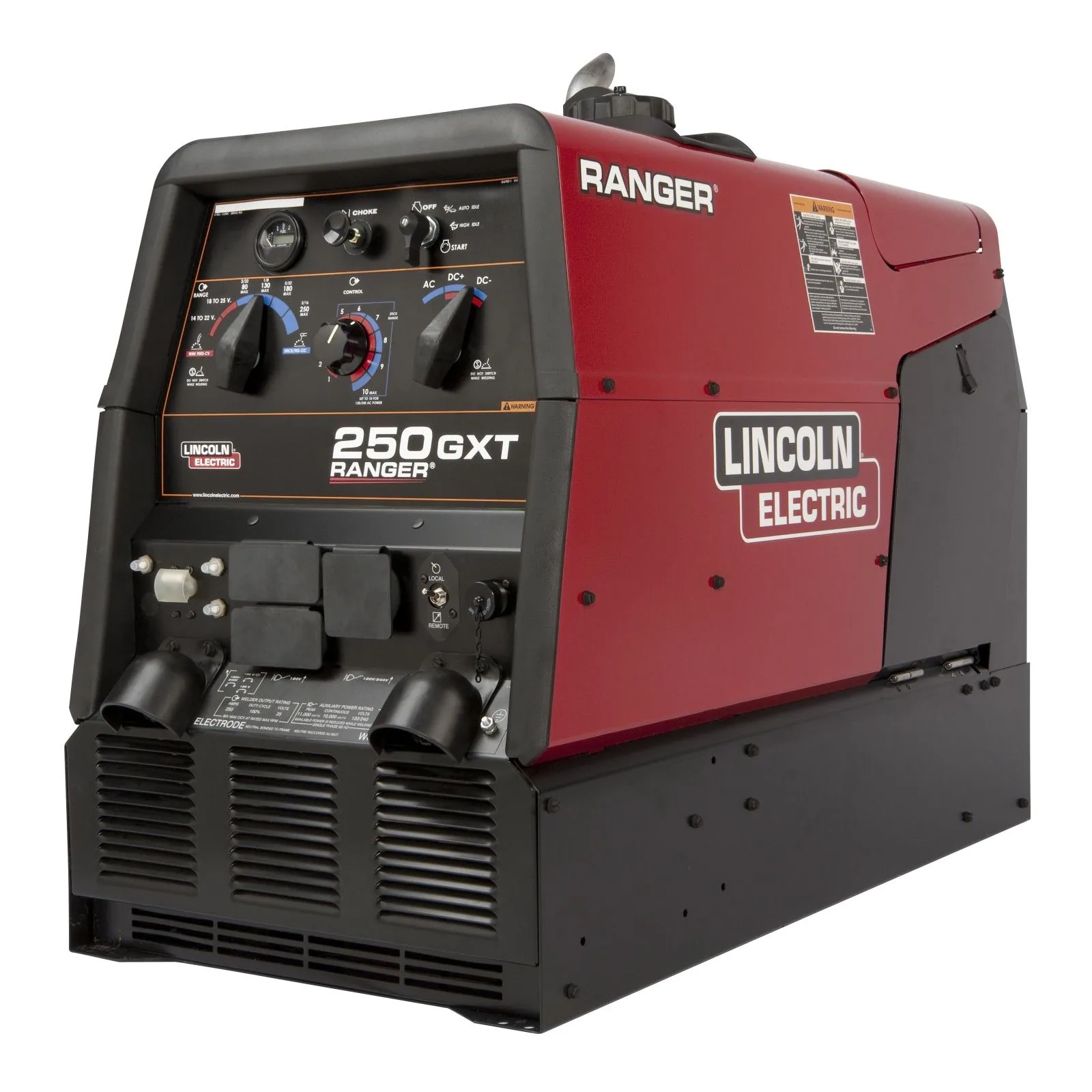

Lincoln Ranger 250 GXT Kohler Engine Driven Welder Generator – P/N K2382-4

Enclosed inside a heavy-gauge steel cabinet, the Lincoln Ranger 250 GXT Kohler engine driven welder generator (P/N K2382-4) lowers jobsite sound levels while producing 250 amps of AC/DC multi-process arc power. Open-frame gas welders generate loud engine clatter that disrupts residential construction zones and fatigues field mechanics. This fully enclosed commercial unit features an industrial sound-dampening case, an 11,000-watt peak AC generator, and a 23HP Kohler engine equipped with an electric fuel pump for dependable high-altitude operation.

The totally enclosed sheet metal cabinet directs cooling air across internal components while dampening operational engine noise down to 76.4 dBA at 23 feet. You weld structural steel with DC stick, run AC TIG on aluminum, or feed flux-cored wire up to 5/64-inch diameter through an auxiliary wire feeder. An electric fuel pump prevents fuel vapor lock during hot summer afternoons, keeping the machine running steady under full auxiliary generator loads.

Technical Specifications of Lincoln Ranger 250 GXT

- 250-Amp AC/DC Multi-Process Output: Handles Stick, TIG, MIG, Flux-Cored, and Arc Gouging with carbon rods up to 3/16-inch.
- 11,000-Watt Peak AC Auxiliary Generator: Supplies 10,000 watts of continuous electrical power for heavy air compressors and saws.
- Totally Enclosed Sound-Dampened Case: Lowers operating sound levels to 76.4 dBA while protecting internal components from rain.
- 23HP Kohler Commercial Gas Engine: Features electric fuel pump, cast-iron cylinder liners, and automatic low-oil shutdown.
- 12-Gallon High-Capacity Fuel Tank: Permits extended field operation without returning to the shop for gasoline refills.

Fabrication Stamina & Inverter Reliability

Built for structural contractors and mechanical pipe crews, this enclosed gas rig delivers all-process capability with low sound emissions.

- Fully enclosed sheet metal housing keeps road grime and driving rain away from internal alternator windings and circuit breakers.
- Electric fuel pump prevents vapor lock when operating at high ambient temperatures on summer road construction sites.
- High auxiliary continuous wattage powers truck-mounted air compressors while operators maintain steady welding arcs.

Plate Thickness Clearance & Power Integration

Weighing 602 pounds dry with an exterior length of 42.3 inches, this commercial machine welds 1/2-inch structural plate in a single pass and mounts in standard truck beds.

Commercial Warranty & Preventive Maintenance

- Lincoln Electric covers the Ranger 250 GXT powerhead and generator stator with a 3-Year factory warranty.
- The Kohler Command PRO engine receives 3-Year commercial warranty protection through authorized Kohler service centers.

Service engine oil and filter every 100 operating hours using 10W-30 motor oil. Inspect generator air intake screens weekly, check battery terminal connections, and test GFCI receptacles monthly. Order the Lincoln Ranger 250 GXT Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
