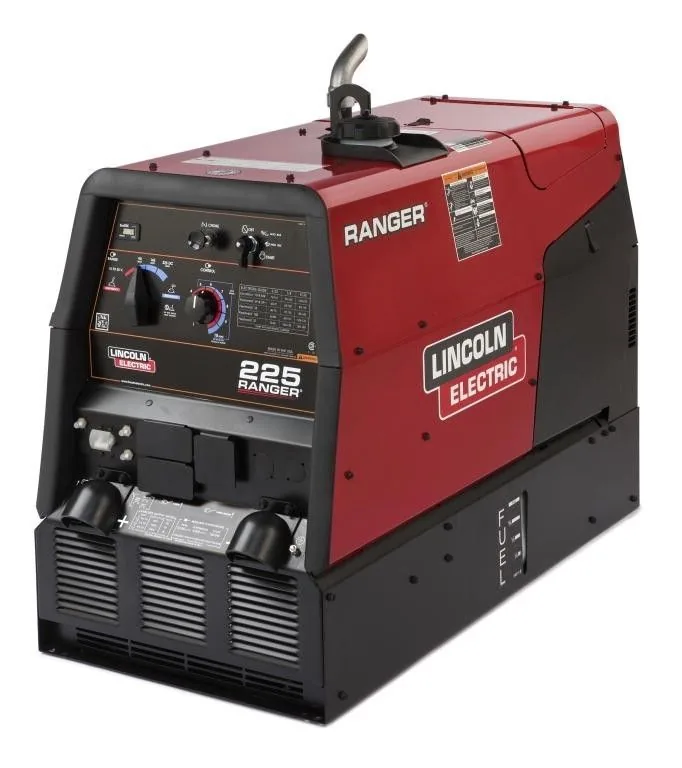

Lincoln Ranger 225 Kohler Engine Driven Welder Generator – P/N K2857-1

Field repair contractors relying on the Lincoln Ranger 225 Kohler engine driven welder generator (P/N K2857-1) eliminate auxiliary generator transport while running heavy stick welding arcs on remote jobsites. Agricultural machinery and structural fences break far from utility power drops, leaving mechanics stranded without arc welding current. This gas-drive machine features a multi-process 225-amp DC stick, TIG, and wire powerhead paired with a 10,500-watt peak AC generator, driven by a twin-cylinder 23HP Kohler Command PRO engine.

You run heavy 9-inch angle grinders and portable plasma cutters from the four 120V 20A GFCI outlets and one 240V 50A receptacle while holding a steady welding puddle. The 12-gallon fuel tank supports all-day field service without refueling stops. Heavy steel tube wrap-around framing protects the engine and generator assemblies from mechanical impacts, while low-lift grab handles ease truck bed loading.

Core Mechanical Specifications of Lincoln Ranger 225

- 225A DC Multi-Process Output: Burns cellulosic and low-hydrogen electrodes up to 3/16-inch diameter for heavy structural repairs.
- 10,500-Watt Peak AC Generator: Delivers 9,000 watts of continuous power to run heavy chop saws and hydraulic power packs.
- 23HP Kohler Command PRO Engine: Twin-cylinder overhead valve block includes cast-iron cylinder liners and low oil protection.
- 12-Gallon Metal Fuel Tank: Keeps field fabrication crews working up to 14 hours on a single tank.
- All-Metal Protective Wrap Frame: Defends mechanical components against falling debris on construction sites and truck beds.
- Four 120V GFCI Duplex Receptacles: Meets OSHA jobsite electrical safety codes for auxiliary tool operation.
- Smooth DC Arc Tuning: Delivers clean welding characteristics for Stick, DC TIG, and wire feeding operations.

Production Efficiency & Reduced Post-Weld Cleanup

This gas-drive welder delivers independent arc welding and generator capability to mobile service trucks and rural maintenance properties.

- Pure DC stick welding arc produces deeper penetration and less spatter on painted equipment than alternating current welders.
- Combined welder and generator design eliminates the expense of hauling separate generators to remote pasture repairs.

Material Capacities & Workshop Integration

Weighing 514 pounds dry with an exterior length of 42.3 inches, this machine welds 1/2-inch steel plate in one pass and mounts securely across standard pickup truck beds.

Factory Warranty Terms & Consumable Care

- Lincoln Electric backs the Ranger 225 generator and electrical components with a 3-Year factory warranty.
- Kohler covers the 23HP Command PRO engine with a 3-Year commercial engine warranty through authorized dealers.

Change engine oil after the initial 20 run hours, maintain regular 100-hour oil changes with 10W-30 oil, and clean the air filter monthly on dusty ranch roads. Order the Lincoln Ranger 225 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
