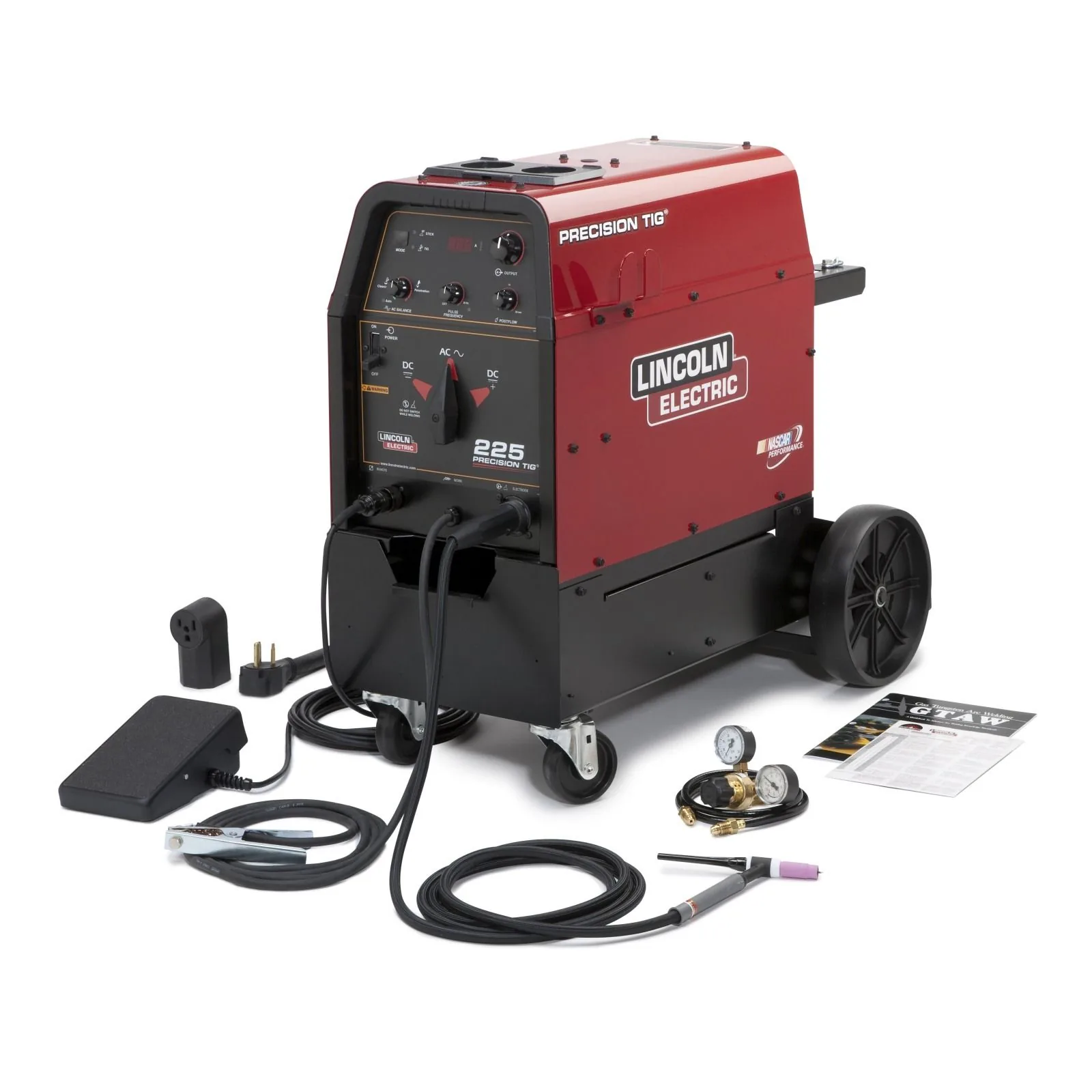

Lincoln Precision TIG 225 Welder – 5-230A Amp Range, P/N K2535-2

Constructed with a complete Ready-Pak accessory bundle, the Lincoln Precision TIG 225 welder (P/N K2535-2) delivers out-of-the-box AC/DC TIG and Stick capability for custom metal shops. Fabricators lose billable days shopping for compatible foot pedals, TIG torches, gas regulators, and cable adapters to complete bare welding power sources. This complete Ready-Pak bundles the 230-amp transformer powerhead with a foot pedal remote, a flexible PTA-17 TIG torch, parts kit, gas regulator, and heavy work clamp.

Micro-Start II technology initiates the welding arc smoothly down to 5 amps, allowing precise puddle control on thin chromoly tubing and stainless marine hardware. The foot pedal control gives you stepless current adjustments to start the puddle gently and taper off amperage to prevent crater cracks at the end of pipe runs. A built-in front storage drawer organizes spare collets, nozzles, and tungsten, keeping critical consumables within arm reach at the welding table.

Technical Specifications of Lincoln Precision TIG 225 Ready-Pak

- Complete Ready-Pak Package Configuration: Includes Precision TIG 225, foot pedal, PTA-17 torch, parts kit, and gas regulator.
- 5-230A AC/DC Welding Amperage: Fuses thin sheet metal up to 3/16-inch aluminum and 1/4-inch steel plate.
- Micro-Start II Arc Ignition: Ignites soft high-frequency arcs without blasting holes in thin gauge metals.
- Automatic AC Balance Technology: Balances cleaning versus penetration automatically to maintain a clean aluminum puddle.
- Integrated Tool & Parts Tray: Stores tungsten, collets, and nozzles inside a slide-out drawer on the machine front.
- Heavy-Duty Stick Welding Terminal: Burns 3/32-inch and 1/8-inch 7018 and 6011 stick electrodes with deep penetration.
- All-Copper Transformer Windings: Delivers superior electrical conductivity and thermal heat absorption on heavy runs.

Operational Reliability in Commercial Service

This complete TIG package gives automotive restoration and custom metal shops laboratory arc stability with industrial transformer durability.

- Heavy copper transformer windings withstand electrical surges and voltage spikes that ruin solid-state inverter boards.
- Foot pedal remote control lets you adjust heat dynamically while welding out-of-position roll cage joints and exhaust collectors.
- Micro-Start II technology eliminates tungsten spit, keeping stainless weld seams free of foreign inclusions.

Machinery Compatibility & Chassis Mounting

Weighing 192 pounds dry with a base length of 28 inches, this complete welding station sits on mobile running gear carts and connects to standard 230V shop drops.

Warranty Coverage & Preventive Maintenance

- Lincoln Electric provides a 3-Year factory warranty covering the main transformer, rectifiers, and internal wiring.
- The PTA-17 TIG torch and foot remote assembly receive 1-Year manufacturer warranty protection.

Maintain peak performance by sharpening 2 percent ceriated or lanthanated tungsten clean, blowing shop dust out of the cabinet every 50 hours, and inspecting gas hose connections. Order the Lincoln Precision TIG 225 welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
