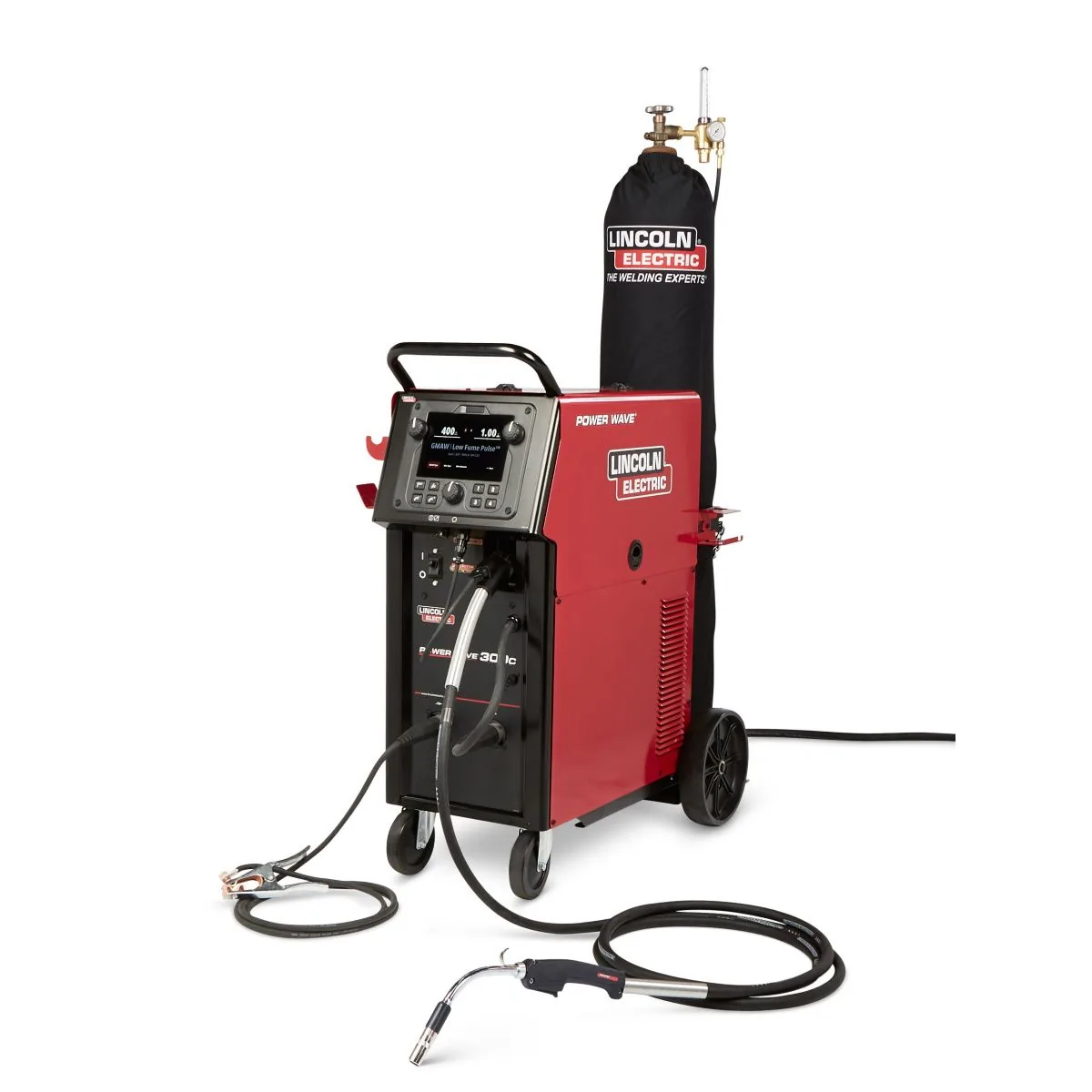

Lincoln Power Wave 300C Multi Process Welder – P/N K4487-1

Need to eliminate spatter and root pass defects on stainless pipe? The Lincoln Power Wave 300C multi process welder (P/N K4487-1) provides Surface Tension Transfer (STT) technology and digital waveform control to deposit sound open-root welds fast. Pipe welding shops lose billable hours running slow TIG root passes on carbon steel and stainless piping. This DC-only industrial multi-process inverter incorporates STT, advanced pulsed MIG, DC TIG, and Stick welding, backed by CheckPoint cloud production tracking.

STT technology senses the droplet short-circuit event, dropping current in micro-seconds to prevent droplet explosion and eliminate weld spatter entirely. Pulsed MIG waveforms adjust heat input dynamically, allowing out-of-position vertical-up welds on thin stainless sheet without burn-through or warping. The integrated wire drive mechanism handles solid, flux-cored, and metal-cored wires up to 0.045-inch, while the digital display shows real-time voltage and wire feed speed with precision.

Core Mechanical Specifications of Lincoln Power Wave 300C (DC)

- Advanced DC Multi-Process Inverter: Combines STT, Pulsed MIG, Standard MIG, Flux-Cored, DC TIG, and Stick welding.
- Surface Tension Transfer (STT) Powerhead: Deposits high-speed open root passes on pipe with zero spatter and full back-bead penetration.
- CheckPoint Welding Software Integration: Streams live weld metrics, arc duration, and material usage to shop computers over Ethernet.
- Multi-Voltage 208V to 575V Primary Input: Adapts to single-phase or three-phase commercial power drops automatically.
- All-Metal Heavy-Duty Wire Drive: Drives solid and metal-cored wire smoothly up to 700 IPM without slip.
- Digital Parameter Memory Registers: Stores custom welding procedures for fast changeovers between stainless and carbon steel.
- Rated 300A Output at 40% Duty Cycle: Maintains steady arc deposition on structural steel assemblies without thermal trip cutouts.

Fabrication Stamina & Inverter Reliability

Engineered for pipe spool fabrication and structural manufacturing, this DC multi-process inverter maximizes joint completion speed.

- STT open-root welding eliminates backing gas on carbon steel pipe, cutting shielding gas expenses and setup labor.
- Waveform control creates flat weld beads with minimal spatter to eliminate post-weld chipping and wire wheel grinding.

Chassis Integration & Industrial Fitment

Measuring 24.8 inches long and weighing 110 pounds dry, this industrial powerhead fits on standard shop carts and connects to factory three-phase circuits.

Factory Warranty Protection & Service Care

- Lincoln Electric covers the Power Wave 300C powerhead with a 3-Year factory warranty against electrical component defects.
- The wire drive motor and digital control board receive full 3-Year manufacturer warranty backing.

Blow dry compressed air through the powerhead cooling tunnels every 100 operating hours, check output cable lugs for heat discoloration, and verify secondary lead connections. Order the Lincoln Power Wave 300C multi process welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
