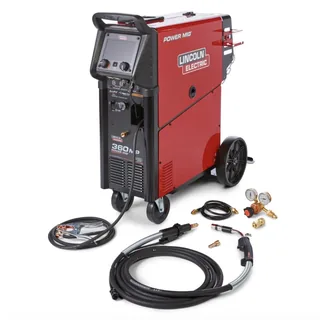

Lincoln Power MIG 360MP Multi Process Welder – 5-360A Amp Range, P/N K4467-1

Prevent out-of-position weld puddle sagging on pipe and plate joints using the Lincoln Power MIG 360MP multi process welder (P/N K4467-1) with advanced waveform processing. Structural steel contractors lose billable hours when multi-process machines lack specific arc modes for vertical-up and overhead joint welds. This 360-amp multi-process workstation incorporates specialized waveforms for Stick, TIG, MIG, and Flux-Cored welding, backed by an industrial inverter that runs on 208V through 575V single-phase power.

Power Mode adjusts current and voltage simultaneously to maintain stable heat input when the welder changes stickout distance. In Stick mode, adjustable arc force prevents 7018 low-hydrogen electrodes from sticking in narrow root joints, while Lift TIG provides clean arc starts without high-frequency electrical interference. The heavy-duty all-metal MAXTRAC wire drive pushes 0.025-inch to 0.052-inch wire through 15-foot guns without feed hesitation.

Key Engineering Features of Lincoln Power MIG 360MP

- 5-360A Comprehensive Multi-Process Range: Delivers precision Stick, DC TIG, MIG, Flux-Cored, and Pulsed MIG from one cabinet.
- Advanced Power Mode Arc Control: Maintains uniform bead penetration despite operator stickout distance changes.
- 7-Inch Full-Color LCD Dashboard: Features intuitive push-and-turn navigation to configure welding parameters fast.
- MAXTRAC Heavy-Duty Dual-Roll Drive: Feeds solid steel, cored, and aluminum wire up to 700 IPM without slip.
- Autopower 208V-575V Primary Sensing: Connects to single-phase commercial circuits without opening the cabinet to change wires.
- ArcFX Visual Puddle Graphics: Displays on-screen cross-section representations of weld penetration profiles.
- Rated 300A Output at 60% Duty Cycle: Sustains continuous spray-arc deposition on heavy structural assemblies.

Shop Floor Durability & Deposition Rates

Engineered for high-volume structural manufacturing and heavy repair shops, this multi-process workstation consolidates diverse welding jobs.

- Advanced waveform technology produces flat, spatter-free weld beads, slashing grinding and chipping hammer hours.
- Inverter power conversion draws lower primary current than conventional transformer powerheads, lowering shop utility bills.
- Heavy steel cabinet with rugged corner bumpers protects internal circuit boards from physical shop floor collisions.

Material Capacities & Workshop Integration

Weighing 255 pounds dry with a base length of 40 inches, this industrial power source operates on single-phase commercial lines to fuse 5/8-inch steel plate.

Warranty Coverage & Field Maintenance

- Lincoln Electric covers the Power MIG 360MP power source with a 3-Year factory warranty against electrical component defects.
- The wire drive motor and digital control board receive full 3-Year manufacturer warranty backing.

Blow dry compressed air through the powerhead cooling tunnels every 100 operating hours, check output cable lugs for heat discoloration, and verify secondary lead connections. Order the Lincoln Power MIG 360MP multi process welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
