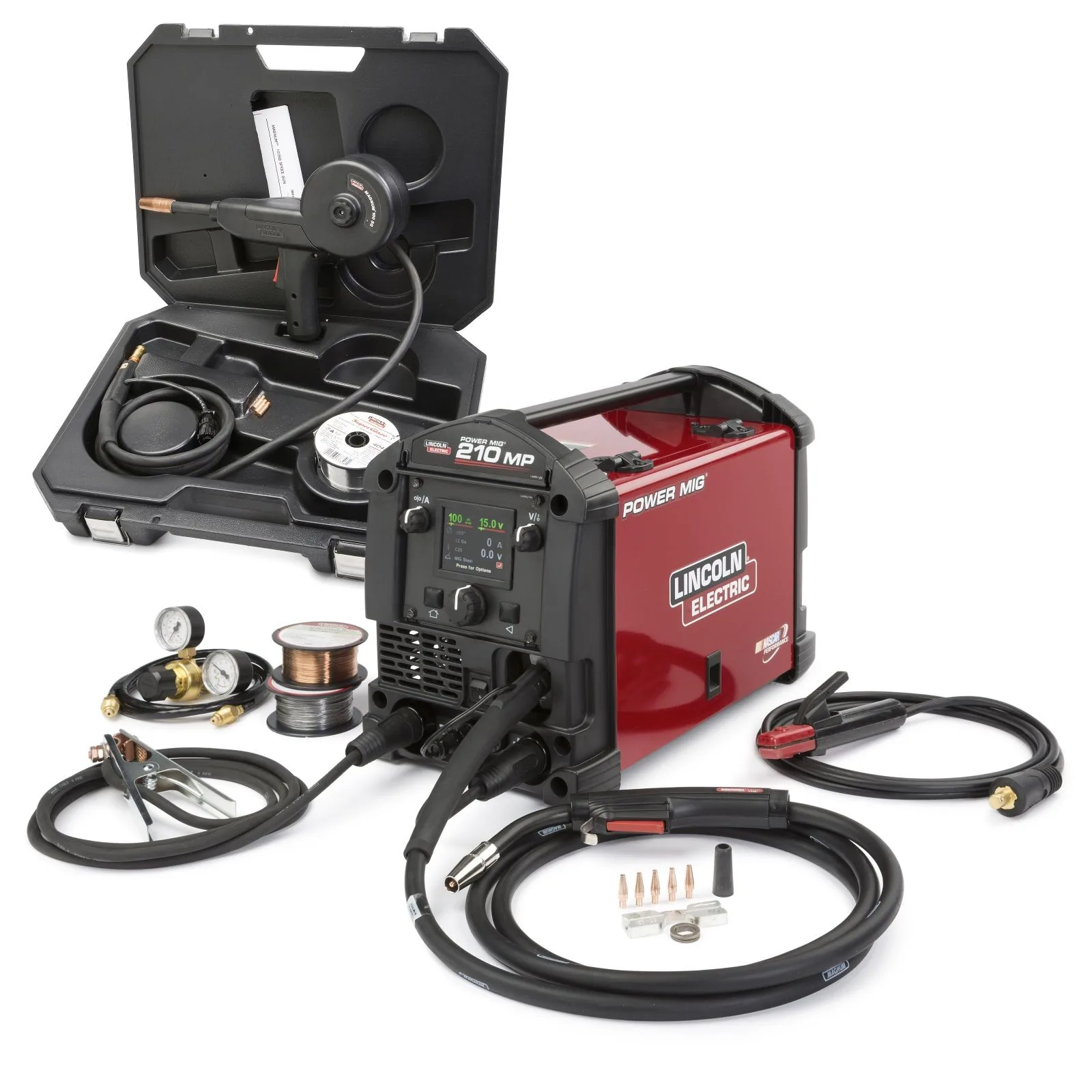

Lincoln Power MIG 210 MP Welder – 20-210A Amp Range, P/N K4195-1

During continuous 8-hour sheet metal fabrication shifts, the Lincoln Power MIG 210 MP welder (P/N K4195-1) maintains steady arc voltage across solid steel and flux-cored production jobs. Structural job shops lose money when operators spend minutes calculating wire speeds and fine-tuning voltage taps between metal gauges. This base MIG package includes the 210-amp dual-voltage powerhead, a 10-foot Magnum PRO 175L MIG gun, drive rolls, and gas regulator to start welding structural assemblies immediately.

Push-and-turn digital controls let you select steel thickness on the full-color LCD screen, setting optimal wire feed speed and arc voltage in seconds. Dual-voltage input allows you to plug into 120V utility lines for light repairs or connect to 230V outlets to weld 5/16-inch plate in a single pass. The heavy cast-aluminum wire drive feeds 0.025-inch to 0.035-inch solid wire without slippage, while the built-in gas solenoid provides clean pre-flow and post-flow shielding.

Technical Features of Lincoln Power MIG 210 MP (P/N K4195-1)

- 20-210A Multi-Process Output: Powers MIG, Flux-Cored, Stick, and DC TIG processes across diverse metal alloys.
- Ready-to-Weld MIG Package: Includes Magnum PRO 175L gun, ground clamp, dual-groove drive roll, and gas regulator.
- Color Digital Display Interface: Displays visual parameter charts, setup instructions, and stored welding programs.
- Dual-Voltage 120V/230V Primary Flexibility: Operates at 140 amps on 120V utility power and 210 amps on 230V shop current.
- All-Metal Dual-Roll Wire Feeder: Drives solid steel and flux-cored wire from 50 to 500 IPM without slip.

Heavy-Duty Architecture & Low Maintenance

Built for structural welding contractors and maintenance shops, this multi-process inverter provides extreme durability and fast arc setup.

- Digital setup menu slashes post-weld cleanup time by calculating optimal inductance parameters that reduce weld spatter.
- Heavy cast-aluminum drive mechanism feeds solid and tubular wire with consistent tension across full 8-inch spools.
- Stiff sheet metal cabinet with corner bumpers resists frame deformation when transported in commercial work trucks.

Equipment Integration & Fitment Specs

Weighing 40 pounds dry with an exterior length of 19 inches, this versatile multi-process powerhead fits on standard shop carts and operates on clean generator power.

Commercial Coverage & Maintenance Upkeep

- Lincoln Electric covers the Power MIG 210 MP powerhead with a 3-Year factory warranty against electrical component defects.

Service this welder by checking drive roll alignment monthly, blowing shop dust out of the cooling tunnels every 100 hours, and replacing contact tips when arc stability drifts. Order the Lincoln Power MIG 210 MP welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
