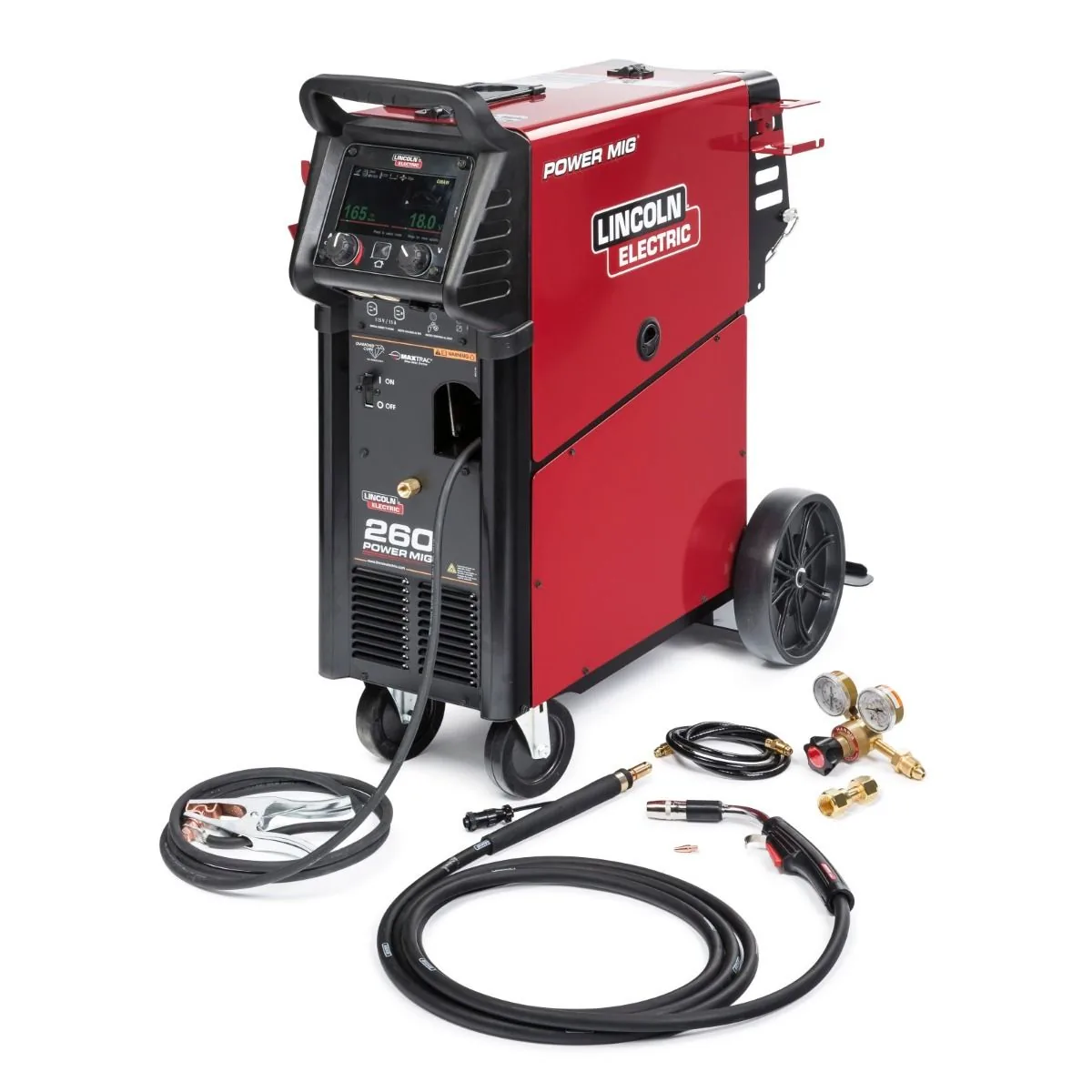

Lincoln Power MIG 260 Welder – 30-300A Amp Range, P/N K3520-1

Structural fabrication shops using the Lincoln Power MIG 260 welder (P/N K3520-1) eliminate parameter setup guesswork through an intuitive 7-inch color display and ReadySet technology. Welders waste productive hours referencing chart books and adjusting analog dials to establish proper wire feed speeds on unfamiliar plate thicknesses. This modern inverter-based machine features a high-resolution graphical interface, multi-voltage primary input, and a heavy-duty MAXTRAC wire drive that outputs up to 300 amps of clean arc power.

The ReadySet interface prompts operators to input material thickness and wire diameter, setting arc voltage and wire feed speed in seconds. Advanced inverter power electronics maintain arc stability on mixed gases, while integrated push-pull gun circuitry allows direct connection of aluminum guns without auxiliary control modules. A front-accessible accessory compartment stores spare contact tips, drive rolls, and nozzles right at the workstation.

Core Mechanical Specifications of Lincoln Power MIG 260

- 30-300A Inverter Output Range: Fuses thin sheet steel up to 1/2-inch plate with smooth short-circuit and spray arc transfer.
- 7-Inch Color Graphical User Interface: Visual setup menus guide operators through material and joint selections with gloved hands.
- ReadySet Automatic Parameter Configuration: Calculates optimal voltage and wire feed speed based on plate thickness input.
- Universal 208V to 575V Input Power: Connects to single-phase commercial voltages automatically without manual jumper changes.
- MAXTRAC Heavy-Duty Dual-Roll Drive: Feeds 0.025-inch to 0.045-inch wire up to 700 IPM without slip or wire deformation.
- Direct Push-Pull Gun Connection: Plugs directly into aluminum push-pull guns to feed soft 4043 wire without birdnesting.
- Under-Deck Storage Drawer: Keeps drive rolls, contact tips, and gas diffusers organized inside the machine cart base.

Production Efficiency & Reduced Post-Weld Cleanup

This inverter-based commercial MIG station streamlines operator workflow and lowers power consumption across busy production floors.

- Inverter technology draws lower primary amperage than older transformer welders, reducing monthly electrical overhead in manufacturing plants.
- ReadySet programming speeds up job changeovers, allowing crews to shift from thin sheet metal to heavy plate in seconds.

Material Capacities & Workshop Integration

Weighing 247 pounds dry with an exterior length of 40 inches, this multi-voltage shop welder operates on commercial drops from 208V to 575V to fuse 1/2-inch carbon steel plate.

Factory Warranty Terms & Consumable Care

- Lincoln Electric provides a 3-Year factory warranty covering the internal inverter powerhead, wire drive motor, and color display.

Blow metal grinding dust out of the cooling louvers monthly, inspect drive roll alignment pins, and replace contact tips when arc stability drifts. Order the Lincoln Power MIG 260 welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
