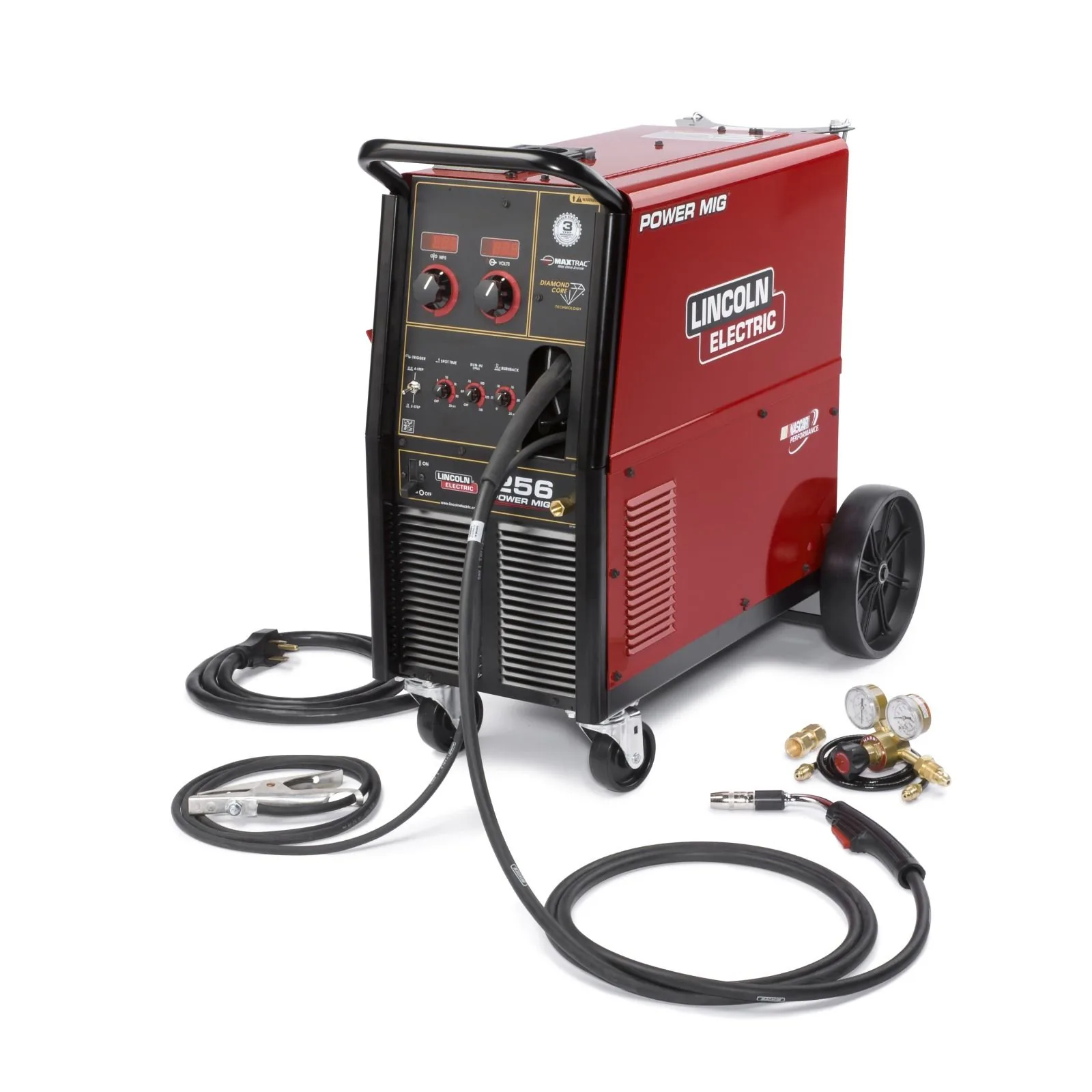

Lincoln Power MIG 256 Welder – 30-300A Amp Range, P/N K3068-1

Depositing heavy spray-arc beads on structural steel, the Lincoln Power MIG 256 welder (P/N K3068-1) maintains stable arc voltage across a 30 to 300-amp output window. Industrial fabrication shops face cold-lap defects and excessive spatter when using lightweight wire feeders on 1/2-inch plate. This commercial transformer-rectifier machine incorporates Diamond Core Technology, an all-metal MAXTRAC wire drive, and a digital preset display that locks in exact arc voltage before you strike an arc.

The heavy-duty cast-aluminum wire feeder pushes 0.025-inch to 0.045-inch solid steel and flux-cored wire without drive roll slippage or casing deformation. An industrial copper-wound transformer stabilizes the arc puddle during short-circuit transfer, while broad output voltage settings permit true spray-arc deposition on heavy weldments. The rugged steel chassis houses a low-profile gas cylinder rack, allowing operators to roll full-size shielding gas bottles into position with minimal lifting effort.

Key Engineering Features of Lincoln Power MIG 256

- 30-300A Commercial Output Window: Welds 22-gauge automotive sheet metal up to 1/2-inch steel plate in a single pass.
- MAXTRAC Cast-Aluminum Wire Drive: Feeds solid, cored, and aluminum wire from 50 to 700 IPM without birdnesting.
- Diamond Core Arc Stabilizing Technology: Delivers a wide voltage sweet spot with low spatter on mixed gas and pure CO2.
- Rated 250A Output at 40% Duty Cycle: Maintains steady arc deposition on structural steel assemblies without thermal trip cutouts.
- Digital Voltage and Wire Feed Speed Displays: Shows preset and actual parameters for procedure compliance across work shifts.
- Magnum PRO 250L 15-Foot Gun Package: Features heavy copper contact tips and a flexible cable that reduces welder wrist fatigue.

Shop Floor Durability & Deposition Rates

Built for structural manufacturing shops, this transformer-based MIG welder delivers high deposition rates with low post-weld cleanup labor.

- A heavy copper transformer stabilizes short-circuit arc transfer, stopping BB spatter accumulation on finished structural assemblies.
- Cast-aluminum wire drive housing maintains steady roll alignment across hundreds of 33-pound wire spools without mechanical wear.
- Low-profile cylinder tray allows single-worker loading of high-pressure shielding gas cylinders onto the mobile cart base.

Plate Thickness Clearance & Power Integration

Operating on single-phase 208V or 230V shop current, this 245-pound industrial unit fuses 1/2-inch steel plate in a single pass and rolls between fabrication bays on heavy rubber tires.

Warranty Coverage & Field Maintenance

- Lincoln Electric backs the Power MIG 256 powerhead with a 3-Year factory warranty covering internal transformer coils and rectifiers.
- The Magnum PRO 250L gun assembly receives 90-day manufacturer warranty protection.

Clean drive roll grooves weekly with a wire brush, blow dry compressed air through the gun liner during wire spool changes, and inspect copper contact tips daily for keyhole erosion. Order the Lincoln Power MIG 256 welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
