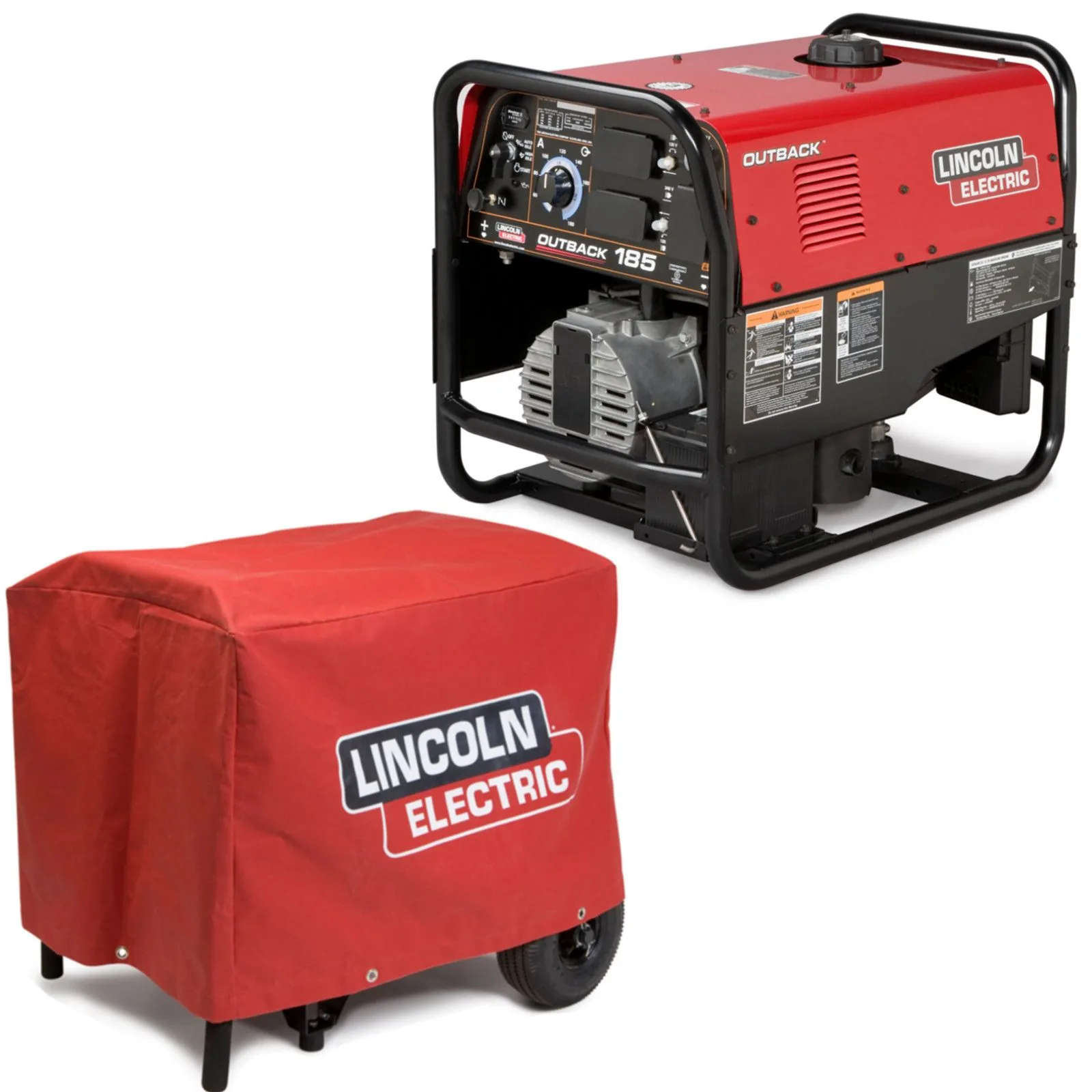

Lincoln Outback 185 Kohler Engine Driven Welder Generator

Burning 5/32-inch 7018 electrodes on heavy farm equipment, the Lincoln Outback 185 Kohler engine driven welder generator produces smooth DC stick welding current without utility power connections. Field mechanics struggle with poor arc stability and slag inclusions when running alternating current welders on structural repairs. This gas-drive machine features a 185-amp DC stick and TIG powerhead paired with a 5,700-watt peak AC generator, driven by a 14HP Kohler Command PRO engine.

Low-Lift grab handles distribute machine weight across four lifting points for loading into pickup truck beds. The pure DC welding arc burns 6010, 6011, and 7018 rods with deep root penetration on rusty carbon steel implements. Four 120V GFCI outlets and one 240V receptacle deliver 5,200 watts of continuous electrical power, running 9-inch angle grinders and air compressors simultaneously while you weld broken trailer tongues.

Key Engineering Features of Lincoln Outback 185

- 185-Amp DC Output: Burns cellulosic and low-hydrogen electrodes up to 5/32-inch diameter for heavy structural repairs.
- 5,700-Watt Peak AC Generator: Delivers 5,200 watts of continuous power to run heavy chop saws and hydraulic power packs.
- 14HP Kohler Command PRO Engine: Overhead valve commercial engine features a cast-iron cylinder sleeve and low oil shutdown.
- Low-Lift Ergonomic Lift Frame: Positions lifting points low on the chassis to ease truck bed loading and jobsite handling.
- All-Metal Protective Wrap Enclosure: Protects engine, fuel tank, and alternator components from falling debris and jobsite knocks.
- 6.8-Gallon Fuel Tank Capacity: Allows continuous all-day field service runs without returning to the shop for gasoline refuels.

Field Durability & Jobsite Power Delivery

Built for mobile ranch repair and construction trucks, this DC engine-drive unit delivers clean arc stability and auxiliary utility power.

- Pure DC stick welding arc produces deeper penetration and less spatter on painted equipment than alternating current welders.
- Combined welder and generator design eliminates the expense of hauling separate generators to remote pasture repairs.
- Cast-iron cylinder sleeve and low oil shutdown protect engine longevity on dusty, unlevel pasture terrain.

Plate Thickness Clearance & Field Portability

Weighing 297 pounds dry with an exterior length of 31.5 inches, this machine welds 1/2-inch steel plate in one pass and mounts securely across standard pickup truck beds.

Warranty Coverage & Field Maintenance

- Lincoln Electric backs the Outback 185 generator and electrical components with a 3-Year factory warranty.
- Kohler covers the 14HP Command PRO engine with a 3-Year commercial engine warranty through authorized dealers.

Change engine oil after the initial 20 run hours, maintain regular 100-hour oil changes with 10W-30 oil, and clean the foam air pre-cleaner monthly on dusty ranch roads. Order the Lincoln Outback 185 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
