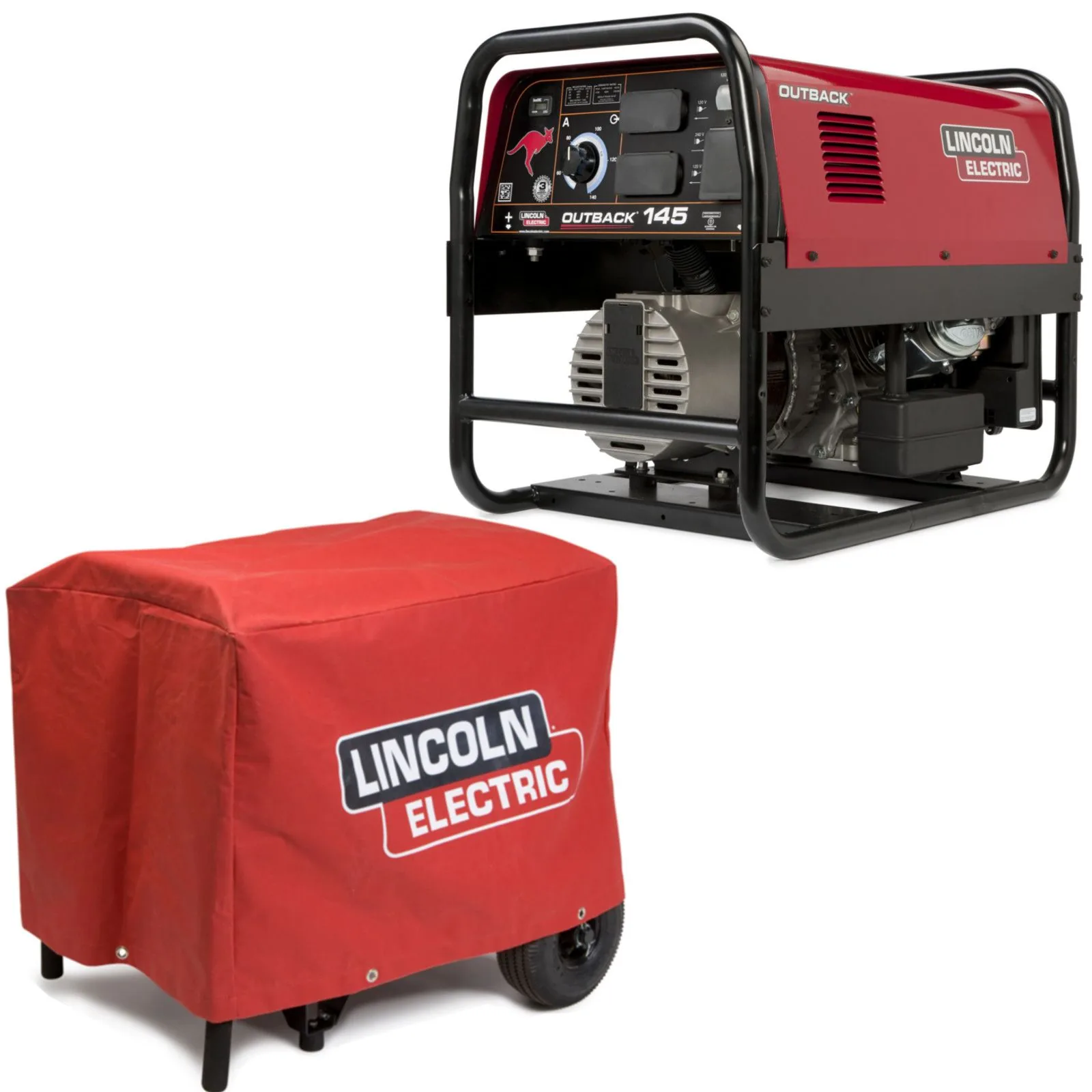

Lincoln Outback 145 Kohler Engine Driven Welder Generator – P/N K2707-2

Spinning a commercial Kohler Command PRO engine with a 145-amp AC stick powerhead, the Lincoln Outback 145 Kohler engine driven welder generator (P/N K2707-2) supplies reliable field welding and 4,750 watts of auxiliary electric power on mobile service trucks. Fence lines and farm machinery break far from electrical outlets, leaving mechanics stranded without arc welding current. This all-in-one commercial unit combines a 9.5HP Kohler overhead valve engine with a 145-amp AC stick welder and an AC generator that powers grinders and lights simultaneously.

The AC stick output produces a broad, penetrating welding arc that burns 3/32-inch and 1/8-inch 6011 and 6013 electrodes on rusty farm implements without sticking. Four 120V outlets and one 240V receptacle deliver clean auxiliary power, running heavy angle grinders and chop saws without bogging down the engine. A heavy-duty steel tube frame defends the engine block and generator stator from falling debris on remote rural jobsites.

Key Engineering Features of Lincoln Outback 145 (P/N K2707-2)

- 145-Amp AC Stick Welding Alternator: Strikes clean AC stick arcs to join rusted carbon steel and farm machinery parts.
- 4,750-Watt Peak AC Auxiliary Generator: Supplies 4,250 watts of continuous electrical power for heavy angle grinders and saws.
- 9.5HP Kohler Command PRO Engine: Features cast-iron cylinder sleeve, low-oil shutdown, and commercial air filtration.
- Low-Lift Grab Handle System: Distributes weight across four lifting handles for easy two-man truck bed loading.
- Four 120V & One 240V Outlets: Provides standard jobsite electrical power outputs for auxiliary hand tools.
- All-Metal Protective Wrap Frame: Shields engine, fuel tank, and generator components from jobsite impacts.
- 6.8-Gallon Fuel Tank Capacity: Keeps field maintenance crews working up to 10 hours on a single tank.

Engineering Integrity & Operational Economy

Engineered for remote mobile service trucks and agricultural operations, this engine-driven welder delivers independent field fabrication stamina.

- Combined welder and generator capability eliminates the need to transport separate powerheads on service truck beds.
- The commercial Kohler Command PRO engine features a forged crankshaft and full-pressure lubrication for long engine life.
- AC stick welding arc penetrates through heavy paint, rust, and dirt on agricultural equipment without arc blow.

Target Acreage & Trailer Transport

Weighing 238 pounds dry with an exterior length of 31.5 inches, this engine-driven welder mounts securely on service truck side packs, utility trailers, or farm utility vehicles.

Factory Warranty Terms & Routine Upkeep

- Lincoln Electric backs the Outback 145 welder generator with a 3-Year limited warranty covering the generator stator and control assemblies.
- The Kohler Command PRO engine receives full 3-Year manufacturer warranty backing through authorized Kohler dealer networks.

Execute engine oil changes every 50 operating hours using 10W-30 motor oil. Inspect the air filter weekly on dusty routes, check spark plug electrode gap at 0.030 inches, and drain carburetor fuel before seasonal storage. Order the Lincoln Outback 145 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
