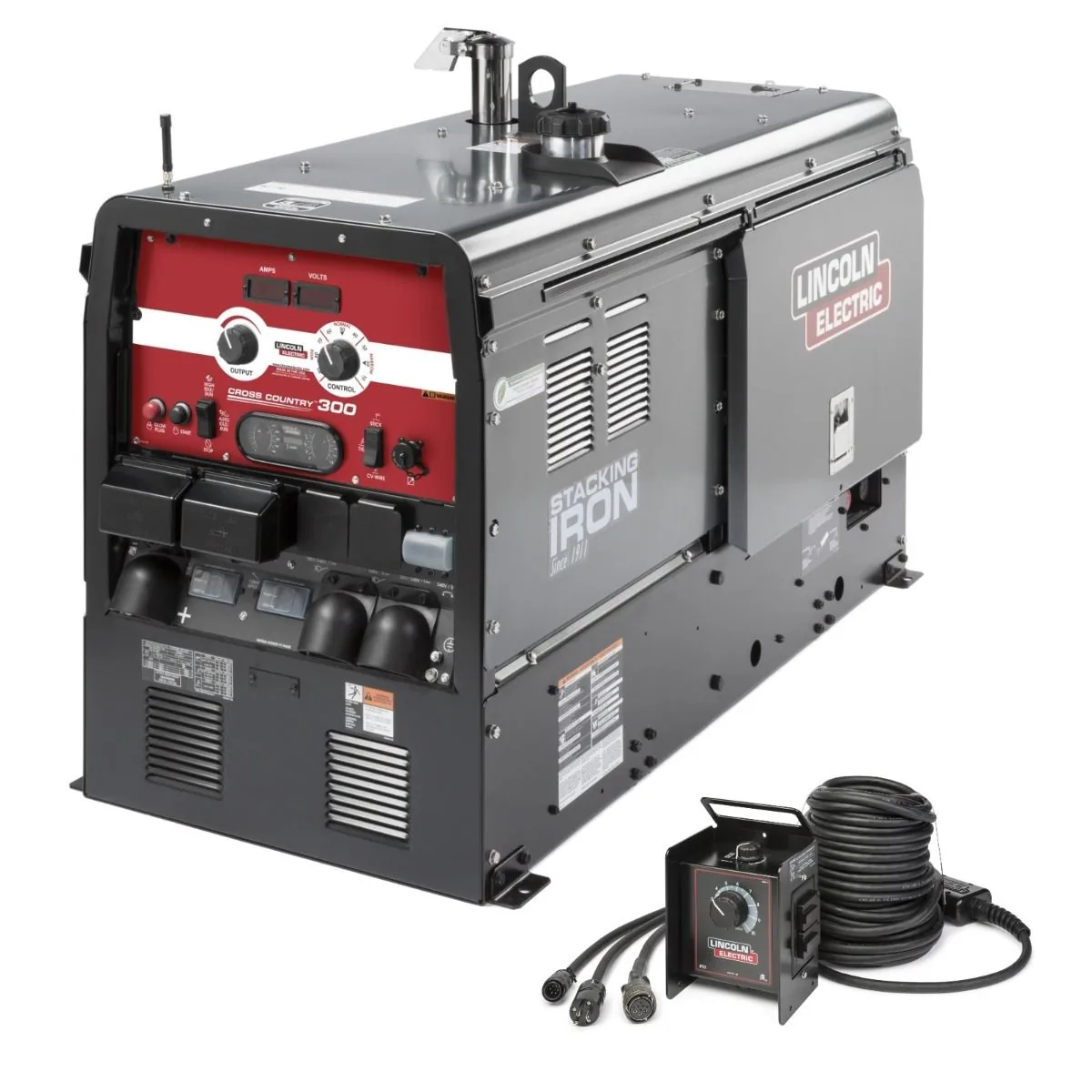

Lincoln Cross Country 300 Kubota Engine Driven Welder Generator – P/N K4166-7

Operating with dedicated digital remote control compatibility, the Lincoln Cross Country 300 Kubota engine driven welder generator (P/N K4166-7) eliminates trips back to the truck bed to adjust heat between pipe passes. Pipeline welders waste billable minutes climbing in and out of bell holes and muddy trenches to alter amperage between root and cap passes. This compact diesel machine features specialized remote control circuitry, a water-cooled Kubota engine, 300 amps of pure DC stick power, and an integrated 10,000-watt AC auxiliary generator.

Chopper Technology delivers soft, controllable arc dynamics that prevent root pass blow-through while maintaining arc stability on high-strength X80 pipeline steels. You adjust heat settings directly from the trench using a remote control box connected to the front standard 6-pin remote receptacle. The rugged steel housing features sloped side louvers that shed rain, keeping internal electronic components dry and cool during long welding shifts in rough right-of-way weather.

Technical Specifications of Lincoln Cross Country 300 (P/N K4166-7)

- Integrated 6-Pin Remote Receptacle: Connects to pipeline remote hand controls for stepless heat adjustments at the pipe joint.
- 300-Amp DC Output at 100% Duty Cycle: Delivers non-stop welding current for downhill cellulosic and low-hydrogen electrodes.
- 10kW Continuous Single-Phase AC Power: Runs high-draw auxiliary tools, induction preheat blankets, and trailer floodlights.
- Kubota Tier 4 Final Diesel Powerhead: Industrial 3-cylinder diesel engine provides clean combustion and low fuel consumption.
- All-Weather Heavy-Gauge Steel Enclosure: Resists road salt, pipeline mud, and heavy vibration without panel fatigue.

Fabrication Stamina & Inverter Reliability

Engineered for mainline transmission pipe and tie-in welds, this diesel rig maximizes welder deposition rates with remote control convenience.

- Trench-side remote heat adjustment eliminates trips back to the truck cab, speeding up joint completion times across spreads.
- Pure DC arc output prevents undercut and internal porosity on critical X-ray radiographic inspection joints.
- A 10,000-watt auxiliary alternator eliminates the need to haul secondary gas generators for helper grinding tools.
- Compact chassis length fits crosswise on custom welding flatbeds without extending beyond truck side rails.

Plate Thickness Clearance & Power Integration

Weighing 1,045 pounds dry with an exterior length of 54.3 inches, this diesel machine welds heavy-wall pipe of unlimited thickness and operates on standard diesel fuel.

Commercial Warranty & Preventive Maintenance

- Lincoln Electric backs the Cross Country 300 welder generator with a 3-Year factory warranty against electrical component defects.
- Kubota provides a 2-Years or 2,000-hour manufacturer warranty covering the diesel engine assembly.

Change diesel motor oil and filter every 100 operating hours with 15W-40 oil, drain water from the fuel filter bowl weekly, and check battery cable connections for corrosion. Order the Lincoln Cross Country 300 Kubota engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
