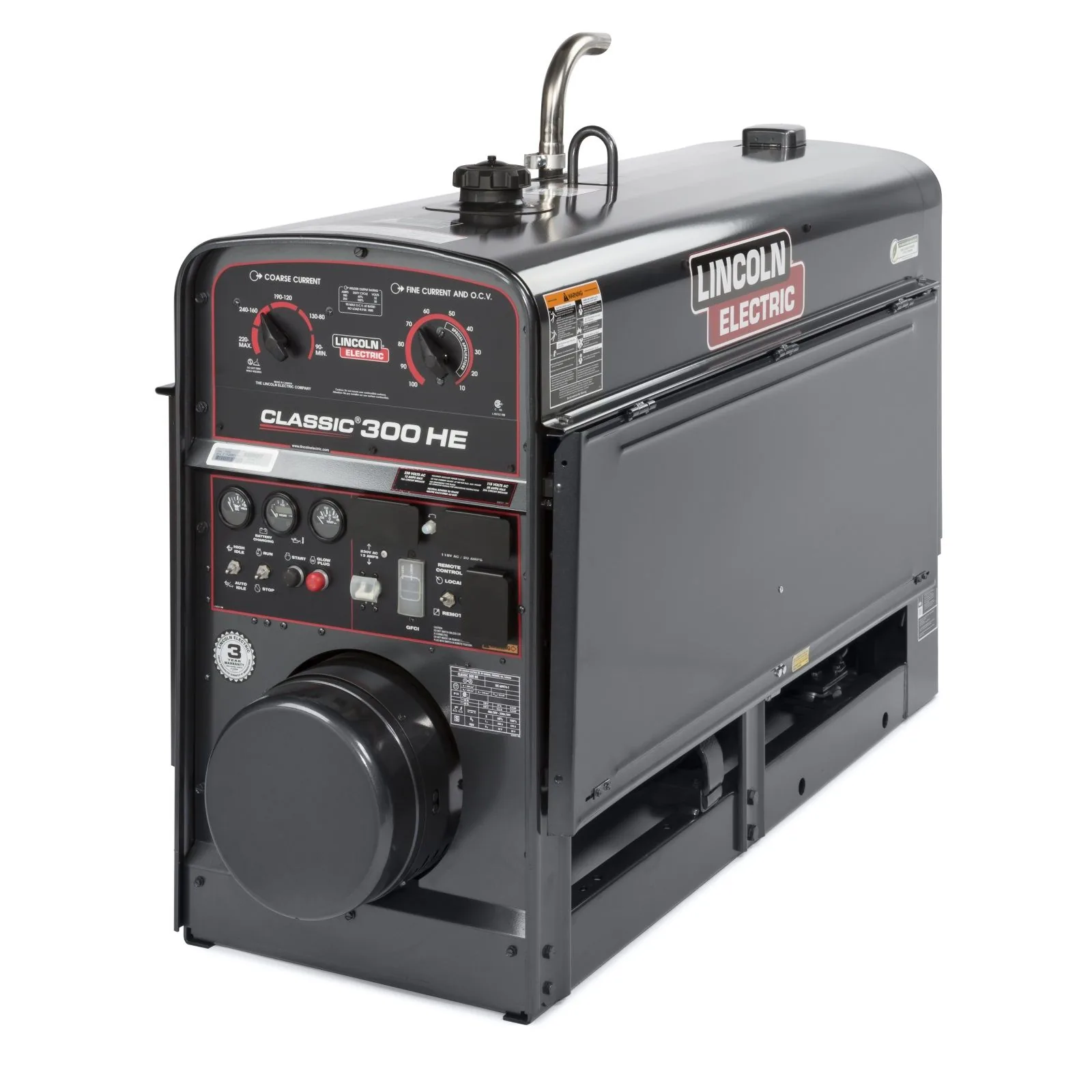

Lincoln Classic 300 HE Kubota Engine Driven Welder Generator – P/N K3198-1

Stacking downhill cross-country pipeline root passes, the Lincoln Classic 300 HE Kubota engine driven welder generator (P/N K3198-1) supplies pure DC generator arc characteristics for precision stick welding. Pipeline contractors face rejected X-ray welds when modern inverters create arc wander or harsh puddle freeze on cellulosic pipe joints. This pure DC generator power source combines all-copper generator windings with a pure DC commutator and a water-cooled Kubota V1505 4-cylinder diesel engine, generating 300 amps of pure DC current at 60 percent duty cycle.

Pure DC generator technology produces a buttery, soft arc that wets out 5/32-inch 6010 cellulosic root passes without digging or undercut defects. The liquid-cooled Kubota diesel engine runs at a slow 1,800 RPM, lowering fuel burn and operating noise on remote right-of-way spreads. Five current ranges with fine-adjustment rheostat dials let you tune puddle freeze precisely for vertical-down travel, while 3,000 watts of auxiliary AC power runs pipe beveling machines and grinders.

Key Engineering Features of Lincoln Classic 300 HE Kubota

- Pure DC Generator Architecture: Uses all-copper generator coils and commutator to produce the legendary soft pipeline welding arc.
- 300A DC Output at 60% Duty Cycle: Fuses heavy-wall transmission pipe joints with 6010, 7010, and 8010 cellulosic electrodes.
- Kubota V1505 4-Cylinder Liquid-Cooled Diesel: Operates at low 1,800 RPM for extended engine life and exceptional fuel economy.
- Five Continuous Current Ranges: Combines coarse range selection with fine-tuning rheostat for exact arc control.
- All-Copper Windings: Delivers superior electrical conductivity and thermal heat dissipation on cross-country pipelines.
- 3,000-Watt Auxiliary AC Generator: Delivers 120V and 240V power for pipe facing tools, grinders, and preheating torches.
- Heavy-Gauge Industrial Steel Enclosure: Protects diesel engine and copper generator from mud, snow, and rough right-of-way terrain.

Engineering Integrity & Operational Economy

Engineered for cross-country transmission pipelines, this pure DC generator delivers X-ray root pass quality under brutal outdoor conditions.

- All-copper generator construction produces an ultra-smooth DC arc that prevents root pass undercut and porosity on high-yield pipe.
- Low 1,800 RPM operating speed cuts diesel fuel consumption significantly compared to high-speed 3,600 RPM welding rigs.
- Liquid-cooled Kubota 4-cylinder diesel engine provides decades of dependable operation across remote cross-country spreads.

Trailer Transport & Rig Mounting

Weighing 1,440 pounds dry with an exterior length of 63.8 inches, this heavy pipeline machine mounts securely on four-wheel road trailers or custom flatbed welding rigs.

Factory Warranty Terms & Routine Upkeep

- Lincoln Electric backs the Classic 300 HE generator and copper windings with a 3-Year limited commercial warranty.
- Kubota covers the V1505 diesel engine through a 2-Years or 2,000-hour factory warranty through authorized diesel distributors.

Execute diesel engine oil and filter changes every 100 operating hours with 15W-40 oil, service fuel-water separators monthly, and inspect copper commutator brushes for wear every 500 hours. Order the Lincoln Classic 300 HE Kubota engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
