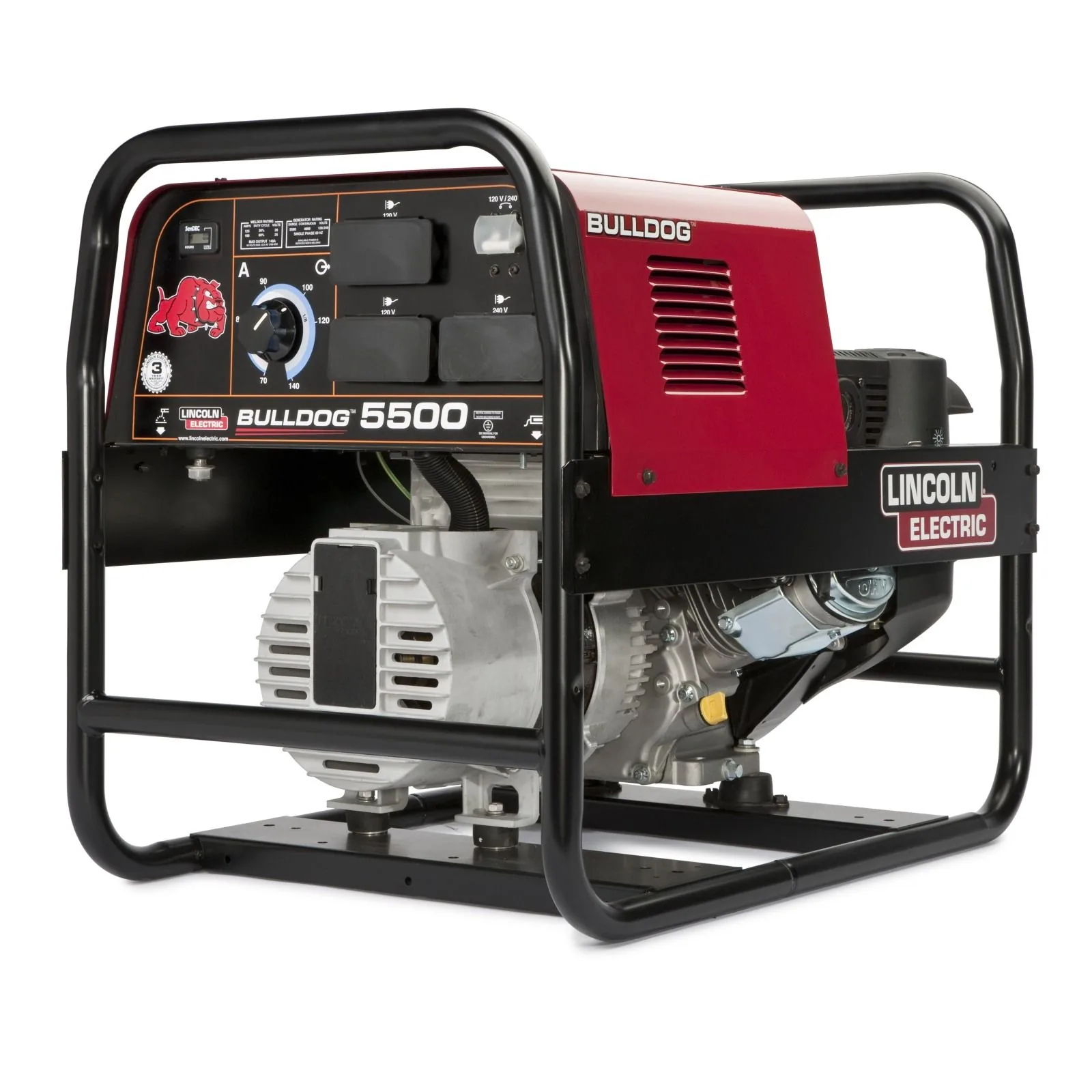

Lincoln Bulldog 5500 Kohler Engine Driven Welder Generator(ID 15488)

Built with heavy steel roll-tube wrap-around protection, the Lincoln Bulldog 5500 Kohler engine driven welder generator (ID 15488) withstands jobsite truck transit and rough field work without frame cracking. Farm equipment breakdowns leave structural steel gates and trailers stranded in pastures without electrical drops. Lincoln builds this multi-purpose gas unit with a 140-amp AC welding alternator and a 5,500-watt auxiliary power generator, driven by an industrial 9.5HP Kohler engine with cast-iron bore protection.

You strike fast AC stick arcs with 6011 and 7014 rods to fuse rusted steel plates without grinding down to bare metal. The 1-1/4-inch steel tubing frame protects the engine crankcase, fuel tank, and electrical control panel when shifting on unpaved ranch tracks. Five protected power outlets deliver clean 120V and 240V current to run angle grinders, battery chargers, and air compressors simultaneously on remote jobsites.

Technical Specifications of Lincoln Bulldog 5500 (ID 15488)

- 140-Amp AC Welding Alternator: Strikes clean AC stick arcs to join rusted carbon steel and farm equipment implements.
- 5,500-Watt Peak Auxiliary Generator: Supplies 4,000 watts of continuous electrical power for saws, grinders, and work lighting.
- 9.5HP Kohler Commercial Gas Engine: Overhead valve design features low oil shutdown and cast-iron cylinder sleeve.
- 1-1/4-Inch Tubular Steel Roll Cage: Defends all critical engine and generator assemblies against jobsite impact damage.
- Low-Lift Ergonomic Lift Handles: Positions lifting points low on the frame to ease loading into truck beds.
- Multiple 120V and 240V Outlets: Supplies multi-voltage power for auxiliary tools and home emergency power transfer panels.

Operational Reliability in Commercial Service

This gas-drive welder delivers independent arc welding and generator capability to mobile service trucks and rural maintenance properties.

- AC stick arc characteristics cut through surface contamination and mill scale on agricultural implements with minimal preparation.
- Compact chassis length fits crosswise across standard pickup truck beds behind the cab without blocking rear window view.
- Single-cylinder Kohler engine provides exceptional fuel efficiency, running up to 5 hours under continuous half-load tool operation.

Machinery Compatibility & Chassis Mounting

Weighing 198 pounds dry with a base length of 31.5 inches, this unit mounts securely in pickup truck beds or utility trailers with four-bolt corner hold-down points.

Warranty Coverage & Preventive Maintenance

- Lincoln Electric provides a 3-Year factory warranty covering the generator rotor, stator, and front control panel.
- The Kohler engine receives 3-Year commercial warranty backing through authorized Kohler service centers nationwide.

Change engine oil every 100 hours with 10W-30 motor oil, inspect spark plug gap at 0.030 inches, and clean dirt from the cooling fins to prevent engine overheating. Order the Lincoln Bulldog 5500 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
