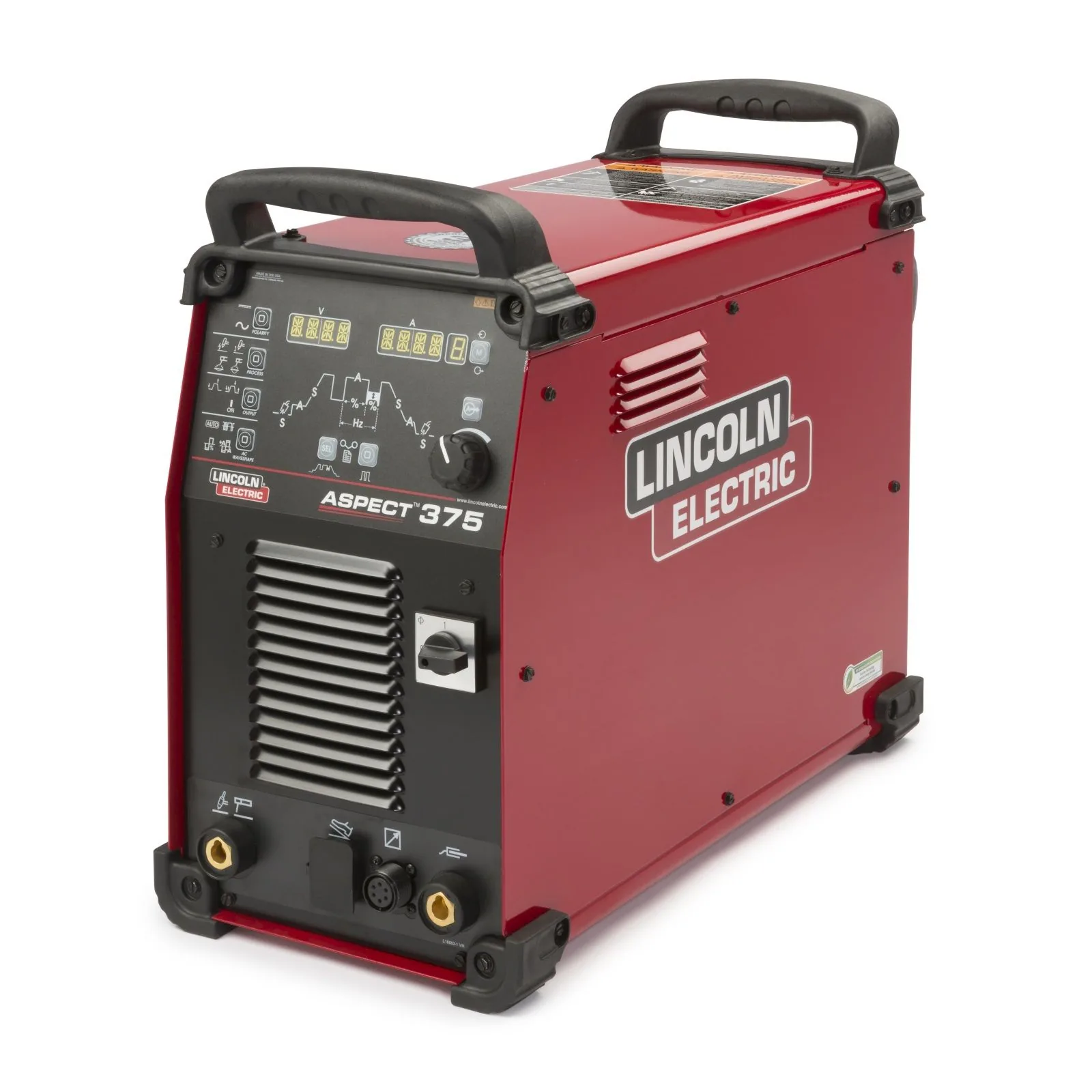

Lincoln Aspect 375 AC/DC TIG Welder – 2-375A Amp Range, P/N K3945-1

During heavy multi-pass aluminum tank fabrication shifts, the Lincoln Aspect 375 AC/DC TIG welder (P/N K3945-1) maintains stable arc cone focus and deep root penetration across thick structural plate. High-amperage aluminum welding draws massive electrical current that causes arc wander and transformer overheating on lesser machines. This 375-amp industrial inverter delivers 250 amps at 100 percent duty cycle, operating on primary electrical services from 200 volts to 600 volts across single-phase or three-phase systems.

Advanced AC wave controls allow you to set independent positive and negative amplitude, directing extra amperage into the workpiece while lowering current on the tungsten electrode to prevent balling. High-frequency arc starting lights the puddle with clean energy, preventing tungsten spitting on high-stress pressure vessel roots. The digital control interface stores custom weld procedures, allowing production crews to lock in verified welding parameters across manufacturing runs.

Technical Specifications of Lincoln Aspect 375 (P/N K3945-1)

- 2-375A Industrial Output Capability: Supplies high current for 1/2-inch aluminum plate down to 2 amps for micro-thin repairs.
- Heavy Industrial 100% Duty Cycle: Operates continuously at 250 amps without thermal cutout or arc degradation.
- 200V-600V Universal Primary Input: Senses single-phase or three-phase shop power lines without internal reconnection jumpers.
- Independent AC Amplitude Controls: Adjusts electrode negative and electrode positive amperage independently for deep penetration.
- Variable AC Frequency 10 to 400 Hz: Tightens arc focus to penetrate deep corner fillets on heavy structural assemblies.
- Four Tailored Waveform Options: Selects square, soft square, sine, or triangle waves to match specific metallurgical demands.

Production Efficiency & Reduced Post-Weld Cleanup

This industrial 375-amp TIG power source deposits heavy weld beads on aluminum and stainless steel with minimal heat distortion.

- Independent amplitude control lets you use smaller tungsten diameters at high amperage, creating narrow, deep weld beads.
- Pulsing current up to 500 Hz stabilizes the molten pool on vertical pipe welds, eliminating joint sagging and backside root suckback.

Material Capacities & Workshop Integration

Weighing 111 pounds dry with an industrial cabinet length of 21.5 inches, this bare power source fuses 1/2-inch aluminum plate in a single pass on heavy 460V shop circuits.

Commercial Warranty & Preventive Maintenance

- Lincoln Electric covers the Aspect 375 industrial power source with a 3-Year factory warranty against electrical component defects.

Blow dry compressed air through the powerhead cooling tunnels every 50 hours, inspect dinse cable studs for heat tightness, and verify argon shielding pre-flow settings. Order the Lincoln Aspect 375 AC/DC TIG welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
