Lincoln Aspect 230 AC/DC TIG Welder – 2-230A Amp Range, P/N K4342-1

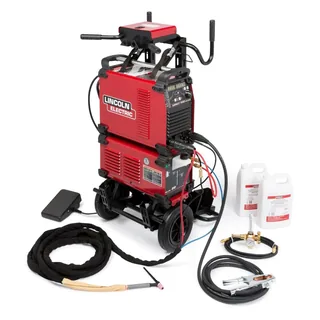

Prevent torch handle heat rise during long production runs using the Lincoln Aspect 230 AC/DC TIG welder (P/N K4342-1) with an integrated water cooler and mobile cart. Air-cooled TIG torches heat up past comfortable handling limits during high-amperage aluminum passes, forcing welders to stop work and wait for equipment to cool down. This Water-Cooled Ready-Pak bundles the 230-amp inverter with a Cool Arc 22 water cooler, mobile running gear cart, foot pedal, and a high-flex PTW-20 water-cooled TIG torch.

The Cool Arc 22 water circulator feeds cold liquid through the torch cable, keeping the PTW-20 torch cool during continuous 200-amp AC welding passes. Waveform controls allow you to select soft square wave for smooth puddle wetting or triangle wave for rapid heat dissipation on thin sheet metal. The heavy-duty cart holds the powerhead, cooler, and a full-size shielding gas cylinder, allowing you to wheel the entire welding system across shop floors without lifting.

Key Engineering Features of Lincoln Aspect 230 Ready-Pak

- Water-Cooled Ready-Pak System: Bundles powerhead, Cool Arc 22 cooler, running cart, PTW-20 torch, and foot control.
- Cool Arc 22 Closed-Loop Circulator: Keeps torch handle head temperature low under continuous full-throttle TIG welding.
- 2-230A AC/DC Welding Amperage: Delivers clean arc ignition down to 2 amps up to 230 amps for thick alloy plates.
- Autopower Multi-Voltage Flexibility: Connects to single-phase or three-phase lines from 120V to 460V automatically.
- Four Specialized AC Waveforms: Tailors arc characteristics with square, soft square, sine, and triangle wave options.
- Pulse TIG Controls up to 200 Hz: Regulates heat input to prevent burn-through on thin automotive body panels and tubing.
- Heavy-Duty Mobile Cylinder Cart: Carries the complete water-cooled system and heavy shielding gas bottles across shop bays.

Shop Floor Durability & Deposition Rates

This water-cooled TIG station gives industrial production shops continuous high-amperage arc operation without thermal handling limits.

- Water cooling keeps torch neck parts cool, extending copper collet and gas lens consumable life under high duty cycles.
- Integrated cart platform carries all cables, hoses, and gas cylinders, eliminating tangled leads around welding tables.
- Dual high-speed cooling fans protect internal inverter modules from heat breakdown during full-shift production runs.

Chassis Integration & Industrial Fitment

The cart base measures 42 inches long by 26 inches wide, holding the powerhead, cooler, and gas cylinder while rolling over floor grates on large rubber wheels.

Warranty Coverage & Field Maintenance

- Lincoln Electric backs the Aspect 230 powerhead and Cool Arc 22 water cooler with a 3-Year factory warranty.
- The water-cooled PTW-20 torch assembly receives 1-Year manufacturer warranty protection.

Check water cooler reservoir levels weekly with Lincoln industrial coolant, flush the cooling lines every six months, and clean the cabinet air filter to stop dust buildup. Order the Lincoln Aspect 230 AC/DC TIG welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
