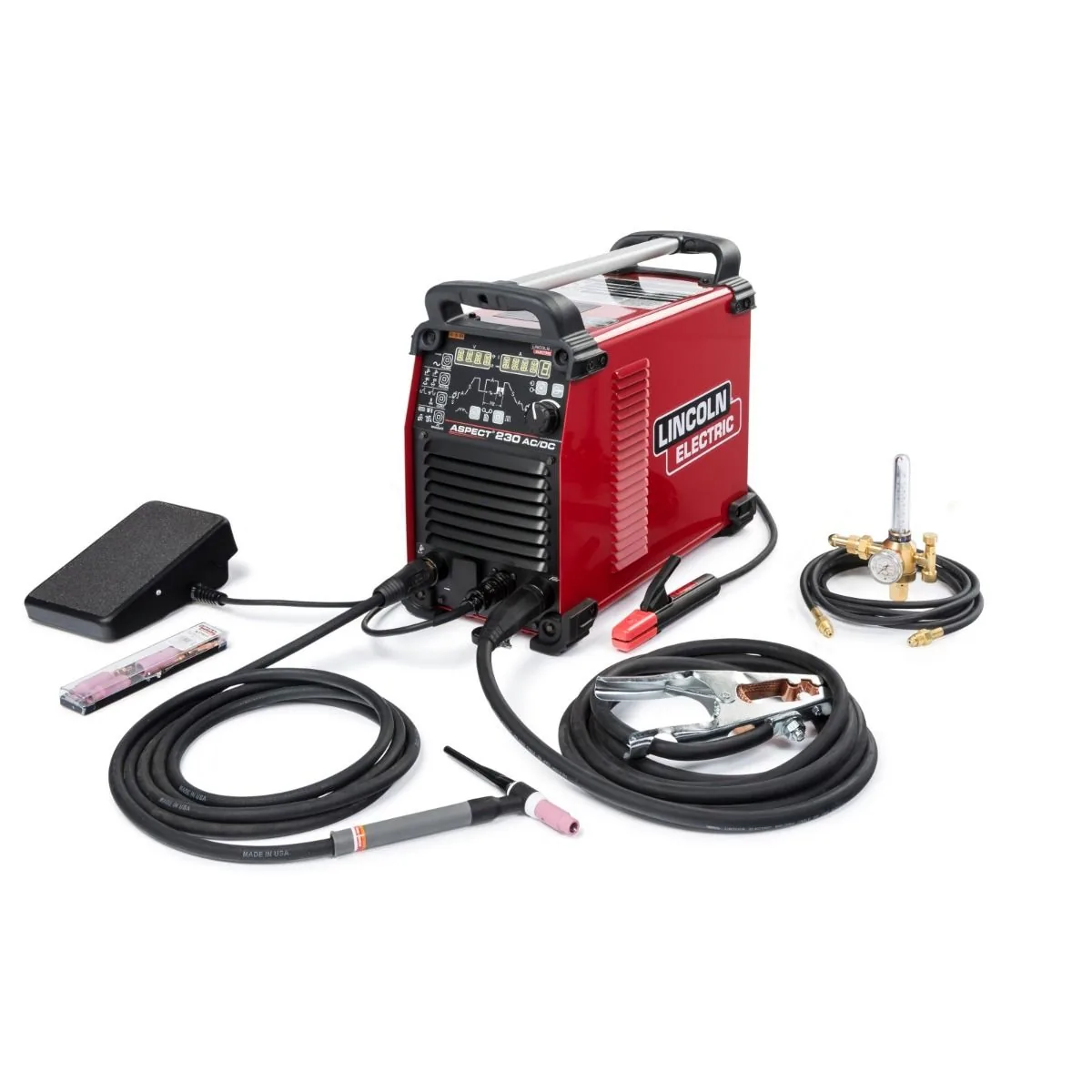

Lincoln Aspect 230 AC/DC TIG Welder – 2-230A Amp Range, P/N K4341-1

Weld thin titanium and aluminum aerospace parts with the Lincoln Aspect 230 AC/DC TIG welder (P/N K4341-1) using specialized wave shaping in a complete air-cooled package. Sheet metal fabricators lose production hours sourcing separate TIG torches, regulators, and foot remotes to assemble complete welding stations. This Air-Cooled One-Pak package bundles the 230-amp multi-voltage inverter powerhead with a foot pedal remote, gas regulator, work clamp, and a flexible PTA-17 air-cooled TIG torch.

Adjustable AC balance control lets you dial in the cleaning ratio from 35 to 90 percent electrode negative, clearing heavy oxide skins on cast aluminum without chewing up the tungsten tip. Pulse TIG parameters adjust peak time and background amperage, controlling overall heat input to prevent thermal distortion on thin stainless food-grade tables. The front control panel features push-button navigation and digital readouts that show real-time voltage and amperage through your welding helmet lens.

Core Mechanical Specifications of Lincoln Aspect 230 One-Pak

- Air-Cooled TIG One-Pak Bundle: Includes Aspect 230 power source, foot pedal, PTA-17 torch, gas hose, and ground clamp.
- 2-230A Operating Output Range: Produces stable low-amperage arcs for thin metal and heavy amperage for thick assemblies.
- Autopower 120V-460V Voltage Sensing: Runs on any jobsite power source without changing internal mechanical jumpers.
- Adjustable AC Balance 35% to 90%: Balances oxide surface cleaning against weld root penetration depth on aluminum.
- High-Frequency Arc Initiation: Ignites the arc without touching tungsten to plate, preventing contamination in medical weldments.
- Up to 400 Hz AC Frequency: Tightens arc cone width to penetrate narrow joint bevels with minimal heat input.

Mechanical Advantages for Commercial Fleets

This complete air-cooled TIG station gives fabrication technicians precise puddle control on exotic alloys without assembly delays.

- The included 14-pin foot control gives you stepless current adjustments to freeze the weld crater without pinhole cracking.
- Air-cooled torch setup eliminates water cooler maintenance, pump seals, and coolant leaks on mobile jobsite service calls.

Input Power Versatility & Jobsite Mobility

Weighing 50 pounds dry with an exterior length of 19.8 inches, this package operates on 120V household lines or 460V industrial drops to fuse 1/4-inch aluminum assemblies.

Factory Warranty Protection & Service Care

- Lincoln Electric covers the Aspect 230 inverter powerhead with a 3-Year factory warranty against internal electrical failure.
- The PTA-17 TIG torch and foot remote assembly receive 1-Year manufacturer warranty backing.

Blow dry compressed air through the powerhead cooling louvers every 100 hours, inspect torch collet bodies for heat discoloration, and check ground clamp contact jaws before welding. Order the Lincoln Aspect 230 AC/DC TIG welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
