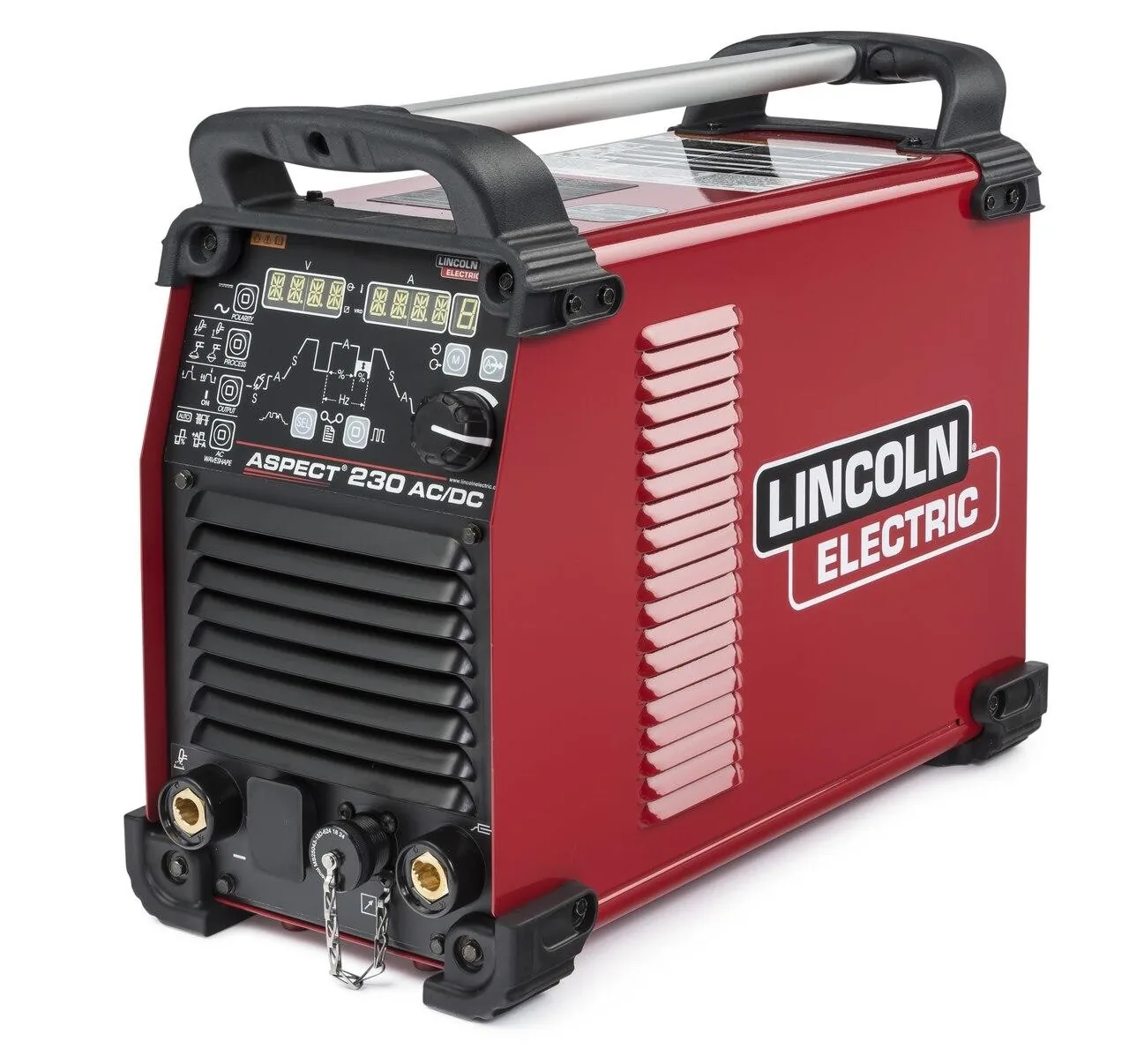

Lincoln Aspect 230 AC/DC TIG Welder – 2-230A Amp Range, P/N K4340-1

Operating across an ultra-low 2 to 230-amp range, the Lincoln Aspect 230 AC/DC TIG welder (P/N K4340-1) controls heat input on thin sheet metal without arc pop-outs. Aerospace technicians and motorsport welders fight tungsten spit and weld puddle contamination when running basic inverters on alternating current. This inverter power source provides full waveform shaping, including square, soft square, sine, and triangle waves, allowing you to tailor cleaning action and penetration profiles to specific aluminum alloys.

Autopower technology accepts primary electrical input from 120 volts up to 460 volts across single-phase or three-phase lines, eliminating factory rewiring delays. Variable AC frequency up to 400 Hz narrows the arc cone, concentrating heat into narrow corner fillets on aircraft tanks. Intellistart technology monitors tungsten size, adjusting initial striking current automatically to prevent high-frequency etching marks on polished base metal.

Technical Specifications of Lincoln Aspect 230 (P/N K4340-1)

- 2-230A Precision Output Range: Starts stable arcs down to 2 amps for foil-thin metal and peaks at 230 amps for heavy pipe.
- Multi-Voltage Autopower Circuitry: Connects to 120V, 208V, 230V, 400V, or 460V electrical service automatically.
- Four AC Waveform Profiles: Selects square, soft square, sine, or triangle wave shapes to match weld bead aesthetics.
- Variable AC Frequency to 400 Hz: Pinpoints arc direction in deep root passes, reducing the heat-affected zone on alloy sheets.
- Pulse TIG Frequency to 200 Hz: Freezes the molten puddle fast to eliminate joint sagging on vertical-up pipe welds.
- Intellistart Arc Ignition: Delivers soft or high-energy arc starts tailored to tungsten diameter without spitting.

Fabrication Stamina & Inverter Reliability

Built for aerospace cleanrooms and custom motorsport shops, this industrial inverter powerhead maintains laboratory arc stability under tight production schedules.

- Solid-state inverter switching elements prevent arc wander on polished aluminum without excessive shielding gas waste.
- The sealed internal wind tunnel channels airflow across heat sinks while shielding electronic control boards from grinding dust.
- Digital memory registers store up to nine custom welding programs for quick recall during repetitive production runs.

Plate Thickness Clearance & Power Integration

Weighing 50 pounds with a cabinet length of 19.8 inches, this bare power source fuses 1/4-inch aluminum plate and connects to 14-pin foot pedals or hand remotes.

Commercial Warranty & Preventive Maintenance

- Lincoln Electric backs the Aspect 230 power source with a 3-Year factory warranty covering internal inverters and control boards.

Clean cabinet ventilation screens monthly, maintain dedicated grinding wheels for 2 percent ceriated or lanthanated tungsten, and inspect argon gas line fittings for micro-leaks. Order the Lincoln Aspect 230 AC/DC TIG welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
