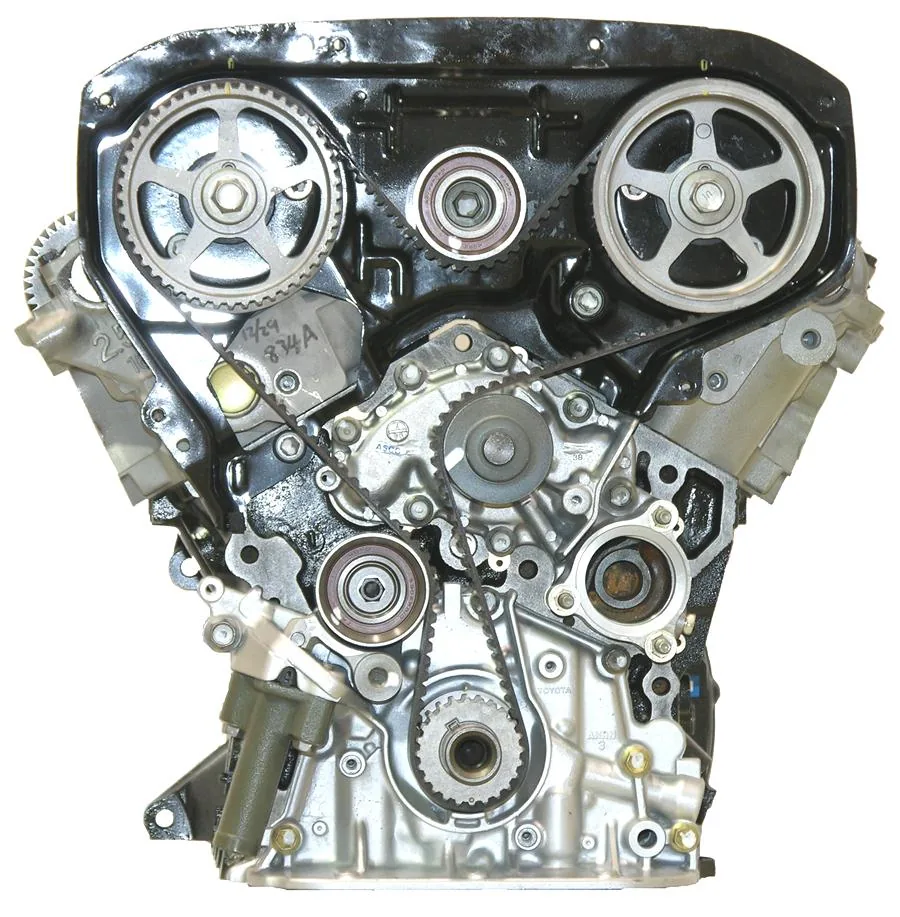

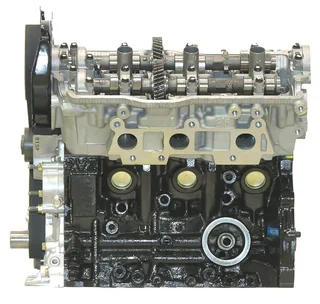

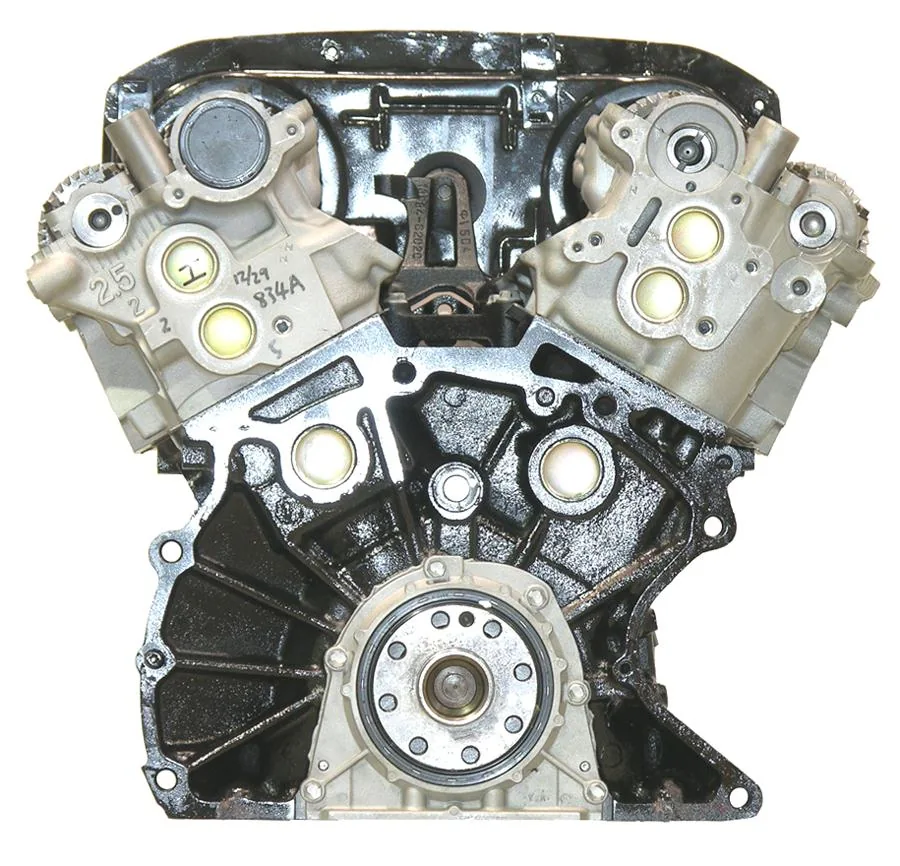

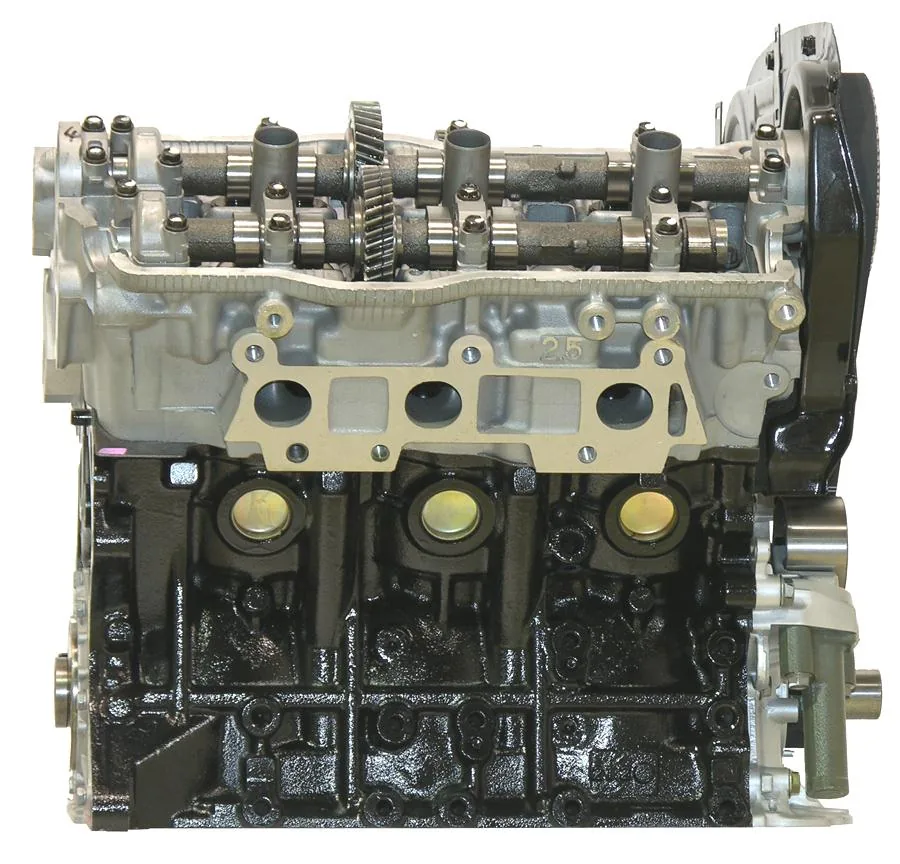

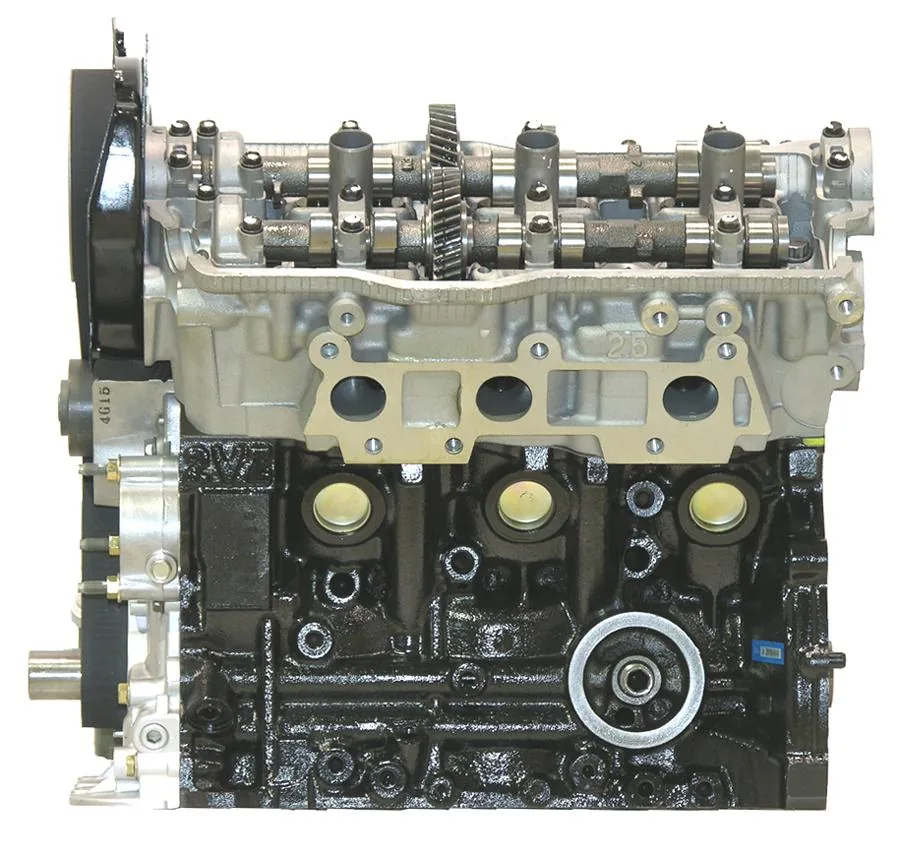

Rebuild front-wheel-drive luxury performance with this precision-machined Toyota Camry 2VZFE Remanufactured Engine. Each 2.5L 6-Cylinder 24-Valve DOHC long block features diamond-surfaced cylinder decks and align-honed main saddles. Technicians must prime internal oil galleries prior to initial ignition and execute an exact 500-mile break-in oil change to protect scissor-gear camshaft drives from premature contact wear.

Cast iron block casting 2VZ features a reinforced knock sensor boss located in the cylinder valley. Centrifugal iron bores receive precision boring to match graded hypereutectic pistons with coated skirts. A micro-polished forged steel crankshaft rides on tri-metal bearings with total indicator runout under 0.0003in TIR. Dual cylinder heads marked 2VZ receive diamond milling for head gasket retention. Net weight totals 240 lbs within crated dimensions of 36in length by 36in width by 36in height. Sump capacity measures 4.8 quarts.

Key Features of Toyota 2VZFE

Professional engine rebuilders buy Toyota 2VZFE remanufactured engine long blocks to resolve chronic oil consumption and restore factory valvetrain quietness. This assembly provides verified machine tolerances for vintage Japanese transverse front-wheel-drive sedans.

- Pre-installed water pump and timing belt tensioner assembly reduce installation labor hours.
- Knock sensor valley boss maintains precise structural placement for factory detonation sensor operation.
- Dual overhead camshaft scissor gears undergo lash calibration to eliminate mechanical valvetrain rattle.
- Diamond plateau honed cylinder walls establish an Ra 15 micro-inch oil-retaining crosshatch finish.
- Micro-polished crankshaft journals eliminate journal taper to ensure hydrodynamic bearing oil film separation.
- Multi-layer composite cylinder head gaskets withstand high thermal cycles across both aluminum banks.
- Align-honed main bearing saddles maintain roundness to prevent crankshaft binding under heavy load.

Dyno Bench Clearance Machining Specifications

Dyno cell spin testing verifies mechanical oil gallery pressurization and rotating balance before crate packaging. The 2.5L 2508cc DOHC V6 produces 156 HP at 5,600 RPM and 160 ft-lbs of shaft torque at 4,400 RPM. Crankshaft main journal oil clearance holds between 0.0011in and 0.0015in, while connecting rod clearance measures 0.0012in. Individual cylinder compression gauges show 185 PSI across all 6 cylinders. Hot oil pressure maintains 55 PSI at 3,000 RPM with regulated coolant operating temperatures steady at 190°F.

Vehicle Fitment Drivetrain Guide

This long block fits 1989 to 1991 Toyota Camry V6 sedans and 1990 to 1991 Lexus ES250 luxury sedans equipped with the 2.5L 2508cc 2VZ-FE engine with knock sensor boss in the valley. Compatible drivetrains include front-wheel drive paired with a 5-Speed manual or 4-Speed automatic transaxle. This unit does not fit subsequent 3.0L 3VZ-FE Camry platforms or 4-Cylinder 3S-FE models due to block height, bellhousing pattern, and engine cradle differences.

Installation Protocol Service Requirements

Technicians must inspect hydraulic cooling fan pump lines, verify camshaft sensor air gaps, and bleed cooling passages during initial chassis setup. Operational warnings restrict use in custom forced induction turbo conversions exceeding 6 PSI boost or demolition derby vehicles lacking auxiliary oil cooling.

- Pre-fill the oil filter and prime the lubrication circuit with 10W-30 conventional oil before cranking.
- Drain initial break-in oil and install a replacement oil filter at the 500-mile maintenance mark.
- Inspect timing belt tracking and check cooling system hose clamp tensions at 1,500 miles.

Warranty Terms Core Return Policy

This long block carries our standard 3-Year Unlimited-Mile warranty for reliable road service. We provide free prepaid return freight shipping for your original core engine within a standard 30-day window. The crated assembly contains the remanufactured long block, pre-installed water pump, timing components, oil pan, and valve covers.
