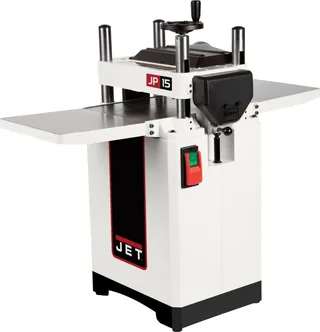

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph The new Jet 15 In. helical head planer quickly and quietly transforms rough lumber into smooth boards. This machine means business with a powerful 3 HP motor combined with a helical cutter head housing 48 staggered carbide quick change knives. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutter head, reducing the chance of board snipe.

Specifications

Brand Name

JET

Amperage (A)

11

Assembled Weight (lbs)

129.8

Bench or Stationary

Stationary

Blade Count

48

Blade Type

4 sided knife inserts

California Proposition 65 Warning Required

Yes

Color

White

Country of Origin

Taiwan

CSA Certified

Yes

ETL Listed

No

Height (in)

48

Horsepower (hp)

3

Length

7 ft

MFG Part # (OEM)

722155

Maximum Cutting Depth (in)

0.188

Maximum RPM

5200

Maximum Width Cutting Capacity (in)

15

Overall Weight (lbs)

129.8

Package Contents

1 Planer, 1 Handwheel assembly, 1 Dust port, 1 Torx point screwdriver T30 (with magnets), 1 Operating Instructions and Parts Manual, 1 Product registration card, 2 Cast iron extension tables, 2 Star point screwdrivers, 5 Knife inserts 10 Knife insert screws, 1 Hardware package

Package Depth

29.92

Package Height

44.88

Package Weight

330.5

Package Weight (lbs)

330.5

Product Condition

New

Switch Type

Magnetic with LED illumination, 14 A overload protector

UL Listed

Yes

UPC

731325762365

Variable Speed

No

Voltage

230 Volts

Warranty Type

5 Years
