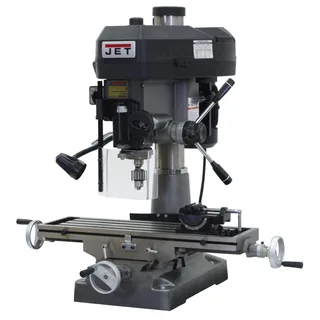

JET JMD-18 Metal Working Mill/Drill with R-8 Taper 2HP 115/230V 1PH

JET JMD-18 Metal Working Mill/Drill with R-8 Taper 2HP 115/230V 1PH The JMD-18 Mill/Drill with R-8 taper by JET® offers a lightweight choice to traditional milling machines. These devices feature a belt-driven drill press and are equipped with dual-coordinate functions typical of milling machines, achieving efficient, flexible operation. The Jet JMD-18 Mill/Drill with R-8 taper is constructed with a cast-iron column made from a single piece for additional stability and support. A belt cover combined with a slide latch allows for fast belt adjustments when changing spindle speeds. The drill press angle vise holds securely, and the 360-degree swivel with added lamp make safe operation easy and well-lit. The unit has a heavy-duty powered downfeed and a manual fine feed system.

Specifications

Brand Name

JET

Amperage (A)

24

Assembled Weight (lbs)

595

California Proposition 65 Warning Required

Yes

Chuck Design

Keyless

Chuck Size

1/2 In

Color

Gray

Country of Origin

Taiwan

CSA Certified

No

ETL Listed

No

Head Tilt (Left Or Right)

0

Height (in)

43.5

Horsepower (hp)

2

Length

42.5 in

MFG Part # (OEM)

350018J

Material

Cast Iron

Package Contents

JMD-18 Metal Working Mill/Drill with R-8 Taper 2HP 115/230V 1PH

Package Depth

42.5

Package Height

43.5

Package Weight

662

Package Weight (lbs)

662

Product Condition

New

Quill Diameter

3

RPM

150 – 3000

Stand Included

No

Switch Type

Push Button

UL Listed

Yes

Unit of Measurement

Metric

UPC

662755103902

Variable Speed

Yes

Voltage

115/230 Volts

Warranty Type

2 Years Limited

Weight (lbs)

662

X Axis, Longitudinal (in)

20.5

Y Axis, Cross (in)

0.0

Z Axis, Knee (in)

0
