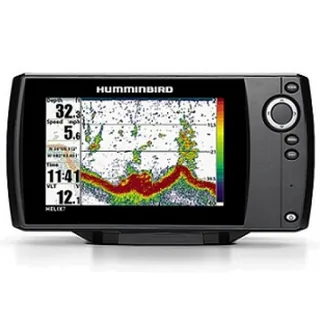

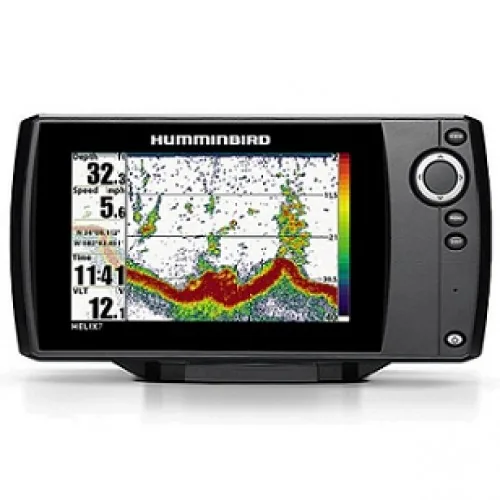

HUMMINBIRD HELIX 7 SONAR FISHFINDER

<p>Key Features</p> <p>- Bright widescreen 7″ display<br>- Shows fish and bottom structure down to 1500′<br>- DualBeam PLUS w/Switchfire Sonar</p> <p>The Helix family of compact fishfinders offers a best-in-class, widescreen color display and powerful professional-grade features at a terrific price. The 7″ 256-color TFT display with 800H x 480V resolution recalls the 16:9 aspect ratio, but in a compact format. This allows for optimal viewing with a bright widescreen that reliably shows fish, bottom, and structure down to 1500′. This unit also features the X-Press Menu Display keypad control that’s quick and user-friendly.</p> <p>This Helix 7 Sonar is designed for the angler who only requires DualBeam PLUS Sonar. It includes the XNT 9 20 T transducer with 200/83 kHz frequencies for 20° and 60° coverage. 20′ transducer cable. Water surface temperature gauge is built into the transducer. Unit size gimbal mount: 10.54″W x 5.8″H x 3.68″D. Unit size in-dash mount: 10.54″W x 5.44″H x 1.13″D.</p> <p>• Display: 7″ HD Color Screen<br>• Resolution: 480 x 800<br>• Power: 500 Watts (RMS)/4000 Watts (PTP)<br>• Depth Capability: 1500′</p> <p>DualBeam PLUS w/SwitchFire Sonar<br>• 200/83 kHz frequencies<br>• 20°/60° coverage</p> <p>Specifications</p> <p>Model Helix 7 Sonar</p> <p>Display Type 256-Color TFT</p> <p>Display Size 7″ diag.</p> <p>Display Resolution 800 x 480</p> <p>Power Output 500 Watts RMS</p> <p>Operating Frequency 200/83 kHz</p> <p>Max. Depth 1500′</p> <p>Temp Yes</p> <p>Transducer XNT 9 20 T Transom-Mount</p> <p>Sonar Coverage 20°/60°</p> <p>Dimensions 10.54″W x 5.8″H x 3.68″D w/gim</p>
