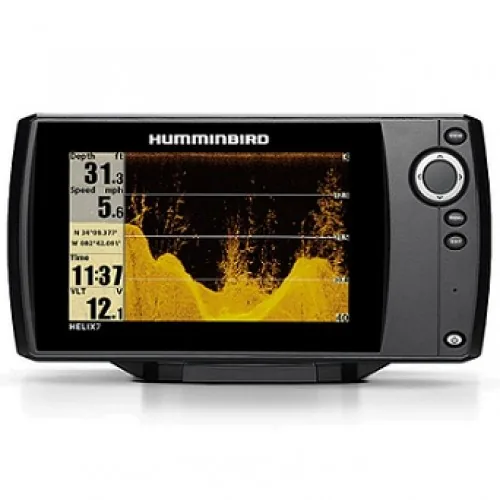

HUMMINBIRD HELIX 7 DI FISHFINDER

<p>Key Features</p> <p>- Bright widescreen 7″ display<br>- Can display sonar and DI screens side-by-side<br>- DualBeam PLUS w/Switchfire Sonar<br>- Down Imaging for detailed views</p> <p>The Helix family of compact fishfinders offers a best-in-class, widescreen color display and powerful professional-grade features at a terrific price. The 7″ 256-color TFT display with 800H x 480V resolution recalls the 16:9 aspect ratio, but in a compact format. This allows for optimal viewing with enough room for side-by-side displays of sonar and Down Imaging screens. Each unit also features the X-Press Menu Display keypad control that’s quick and user-friendly.</p> <p>The Helix 7 DI is designed for the angler who wants the advantage of Down Imaging Sonar. Down Imaging Sonar with DualBeam PLUS and Switchfire creates detailed images with high-frequency sound waves emitted in ultra-thin slices. The sonar returns from these waves produce a sensitive “snapshot” of what’s below your boat. This unit includes the XNT 9 DI T transducer with 455/800/200/455 kHz frequencies for 16°, 28°, 45°, and 75° coverage. 20′ transducer cable. Water surface temperature gauge is built into the transducer. Unit size gimbal mount: 10.54″W x 5.8″H x 3.68″D. Unit size in-dash mount: 10.54″W x 5.44″H x 1.13″D.</p> <p>• Display: 7″ HD Color Screen<br>• Resolution: 480 x 800<br>• Power: 500 Watts (RMS)/4000 Watts (PTP)</p> <p>Down Imaging Sonar Coverage:<br>• 455 kHz / 75° @ -10db<br>• 800 kHz / 45° @ -10db<br>• Depth: 350′</p> <p>DualBeam PLUS Sonar Coverage:<br>• 200 kHz / 28° @ -10db<br>• 455 kHz / 16° @ -10db<br>• Depth: 600′</p> <p>Specifications</p> <p>Model Helix 7 DI</p> <p>Display Type 256-Color TFT</p> <p>Display Size 7″ diag.</p> <p>Display Resolution 800 x 480</p> <p>Power Output 500 Watts RMS</p> <p>Operating Frequency 455/800/200/455 kHz</p> <p>Max. Depth 600’/350′ (DI)</p> <p>Temp Yes</p> <p>Transducer XNT-9-DI-T Transom-Mount</p> <p>Sonar Coverage 75°/45°/28°/16°</p> <p>Dimensions 10.54″W x 5.8″H x 3.68″D w/gim</p>
