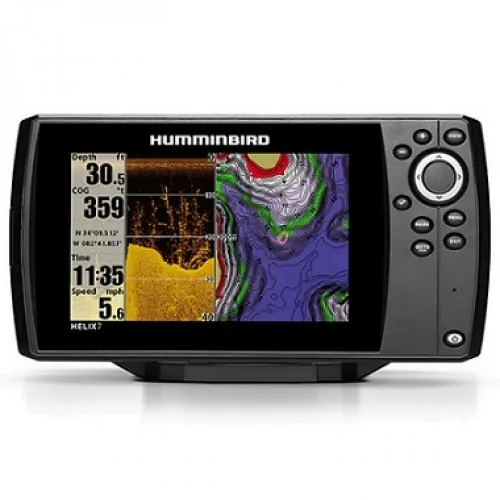

HUMMINBIRD HELIX 7 DI FISHFINDER GPS COMBO

Key Features

- Bright widescreen 7″ display
- Display sonar, DI, or GPS screens side-by-side
- DualBeam PLUS w/Switchfire Sonar
- Down Imaging for detailed views
- Internal GPS w/built-in UniMap

The Helix family of compact fishfinders offers a best-in-class, widescreen color display and powerful professional-grade features at a terrific price. The 7″ 256-color TFT display with 800H x 480V resolution recalls the 16:9 aspect ratio, but in a compact format. This allows for optimal viewing with enough room for side-by-side displays of sonar, DI, or GPS screens. Each unit also features the X-Press Menu Display keypad control that’s quick and user-friendly.

This Helix 7 DI GPS Combo functionality includes DualBeam PLUS and Down Imaging Sonar plus GPS chartplotting with an internal GPS receiver. Down Imaging Sonar with DualBeam PLUS and Switchfire creates detailed images with high-frequency sound waves emitted in ultra-thin slices. The sonar returns from these waves produce a sensitive “snapshot” of what’s below your boat.

The GPS comes with a built-in UniMap basemap and an SD card slot for upgrading to LakeMaster or Navionics cartography. Includes the XNT-9-DI-T transducer with 455/800/200/455 kHz frequencies for 16°, 28°, 45°, and 75° coverage. 20′ transducer cable. Water surface temperature gauge is built into the transducer. GPS speed is included. Unit size gimbal mount: 10.54″W x 5.8″H x 3.68″D. Unit size in-dash mount: 10.54″W x 5.44″H x 1.13″D.

• Display: 7″ HD Color Screen
• Resolution: 480 x 800
• Power: 500 Watts (RMS)/4000 Watts (PTP)

GPS Features:
• 2,500 Waypoints
• 45 Routes
• 50 Tracks w/20,000 Points Each
• Trackplotting
• Chartplotting
• GPS Speed
• Humminbird UniMap Built-In

Down Imaging Sonar Coverage:
• 455 kHz / 75° @ -10db
• 800 kHz / 45° @ -10db
• Depth: 350′

DualBeam PLUS Sonar Coverage:
• 200 kHz / 28° @ -10db
• 455 kHz / 16° @ -10db
• Depth: 600′

Specifications

Model Helix 7 DI GPS

Display Type 256-Color TFT

Display Size 7″ diag.

Display Resolution 800 x 480

Included Cartography UniMap

Accepts Data Cards microSD card

Power Output 500 Watts RMS

Operating Frequency 455/800/200/455 kHz

Max. Depth 600’/350′ (DI)

Speed GPS Speed

Temp Yes

Transducer XNT-9-DI-T Transom-Mount

Sonar Coverage 75°/45°/28°/16°

Dimensions 10.54″W x 5.8″H x 3.68″D w/gim
