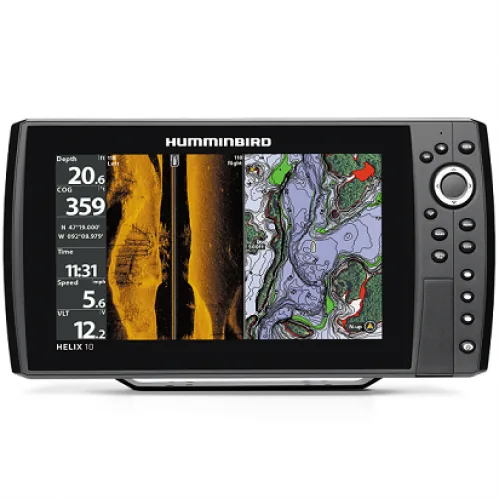

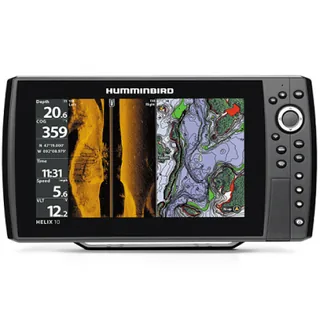

HUMMINBIRD HELIX 10 SI FISHFINDER GPS COMBO

Key Features

- Pre-loaded with AutoChart Live
- Eye-popping widescreen 10″ display
- Display sonar, DI, SI, or GPS screens side-by-side
- Side Imaging for a 180° view of the water
- Internal GPS w/LakeMaster PLUS cartography

Humminbird makes the once-thought-impossible look easy. The Helix 10 Series features unprecedented technology with AutoChart Live pre-loaded into each unit. AutoChart Live transforms unknown waters into detailed maps live, right on your screen. With the press of a button, you can mark over 2500 waypoints onto underwater structure and contours, so you can return to productive areas. Keep the maps you make or share them with friends with full network capabilities.

View Humminbird Imaging technologies on an eye-popping screen with 1500 nit brightness and amazing resolution. The widescreen 16:9 format allows side-by-side displays of sonar, DI, SI, or GPS screens. The internal precision GPS is complemented by LakeMaster PLUS cartography with invaluable features like 1′ contours. And the views are made even more potent by other Humminbird fish-finding technologies like Side Imaging, Down Imaging, SwitchFire Sonar, and i-Pilot Link compatibility. Dual card slots accommodate Navionics and Lakemaster map upgrades. Ethernet networking capable. 500 watts RMS.

This Helix 10 SI GPS Combo is the flagship unit of the Helix family. Its functionality includes DualBeam PLUS Sonar, GPS chartplotting with an internal GPS receiver, Down Imaging, and Side Imaging. The incredible Side Imaging Sonar combines with Down Imaging to create an amazing detailed 180° view of the water.

• Display: 10.1″ HD Color Screen
• Resolution: 600V x 1024H
• Transom-Mount Transducer Included: XHS 9 HDSI 180 T
• Power: 500 Watts (RMS)/4000 Watts (PTP)
• Size w/Gimbal Mount: 13.44″W x 7.12″H x 4.2″D

GPS Features
• 2,750 Waypoints
• 45 Routes
• 50 Tracks w/20,000 Points Each
• Trackplotting
• Chartplotting
• GPS Speed
• LakeMaster PLUS Cartography

Side Imaging / Down Imaging Sonar Coverage
• 455 kHz / (2) 85° @ -10db
• Depth: 350′ (DI) / 100′ (SI)
• Side Imaging Range to 240′ Either Side

DualBeam PLUS Sonar Coverage
• 200 kHz / 20° @ -10db
• 83 kHz / 60° @ -10db
• Depth: 1500′

Specifications

Model Helix 10 SI GPS

Display Type Color TFT

Display Size 10.1″ diag.

Display Resolution 1024 x 600

Included Cartography LakeMaster PLUS

Accepts Data Cards 2 microSD card slots

Power Output 500W RMS

Operating Frequency 200/83/455 kHz

Max. Depth 1500’/350′(DI)/100′

Speed GPS Speed

Temp Yes

Transducer XHS-9-HDSI-180-T Transom-Mount

Sonar Coverage 20°/60°/(2) 85°

Dimensions 13.44″W x 7.12″H x 4.2″D w/gim
