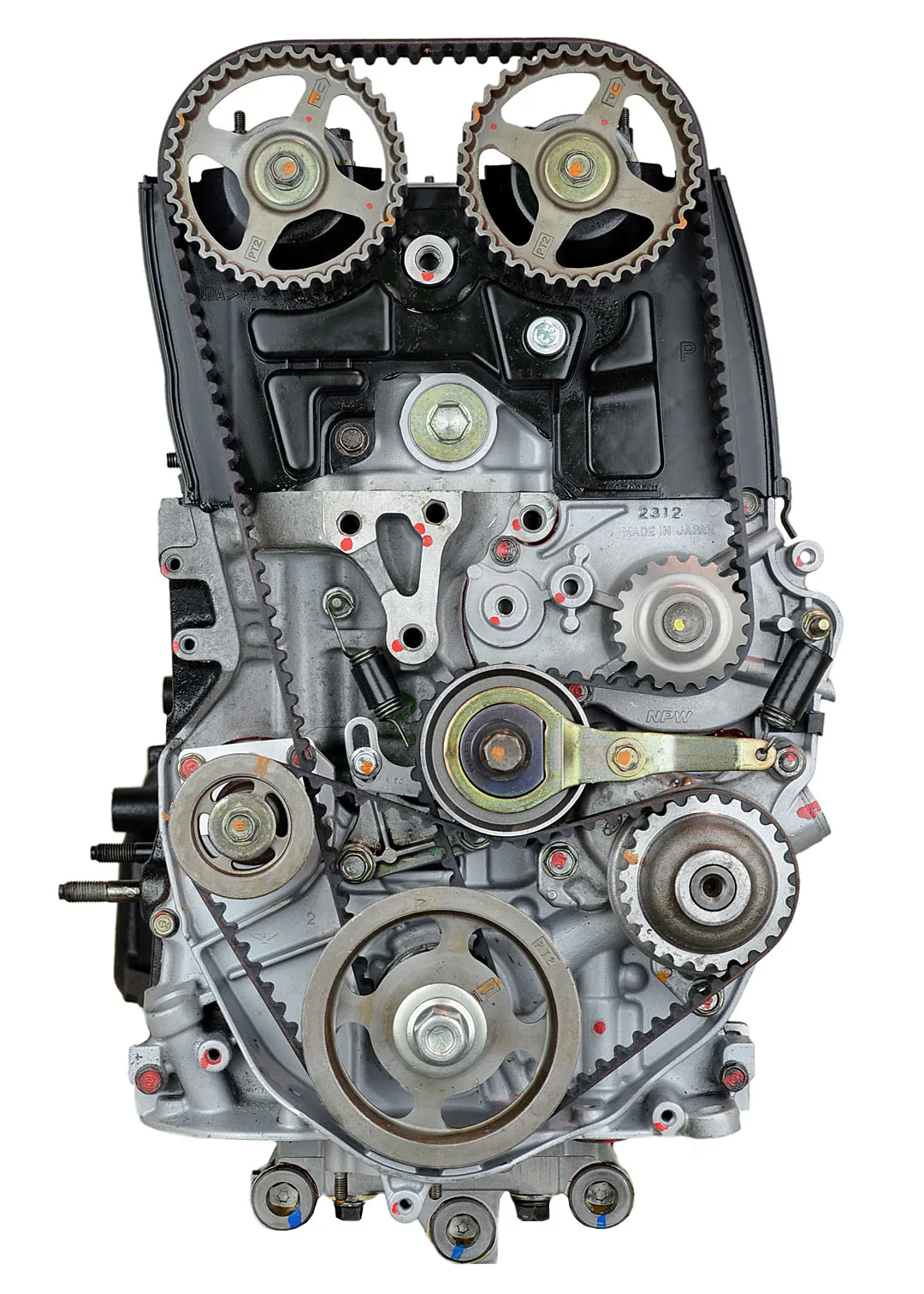

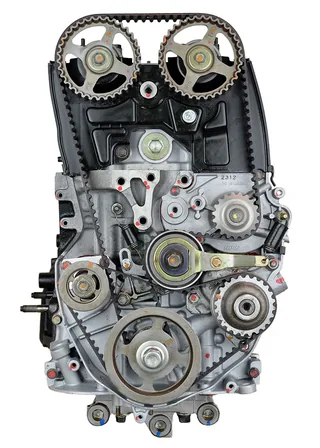

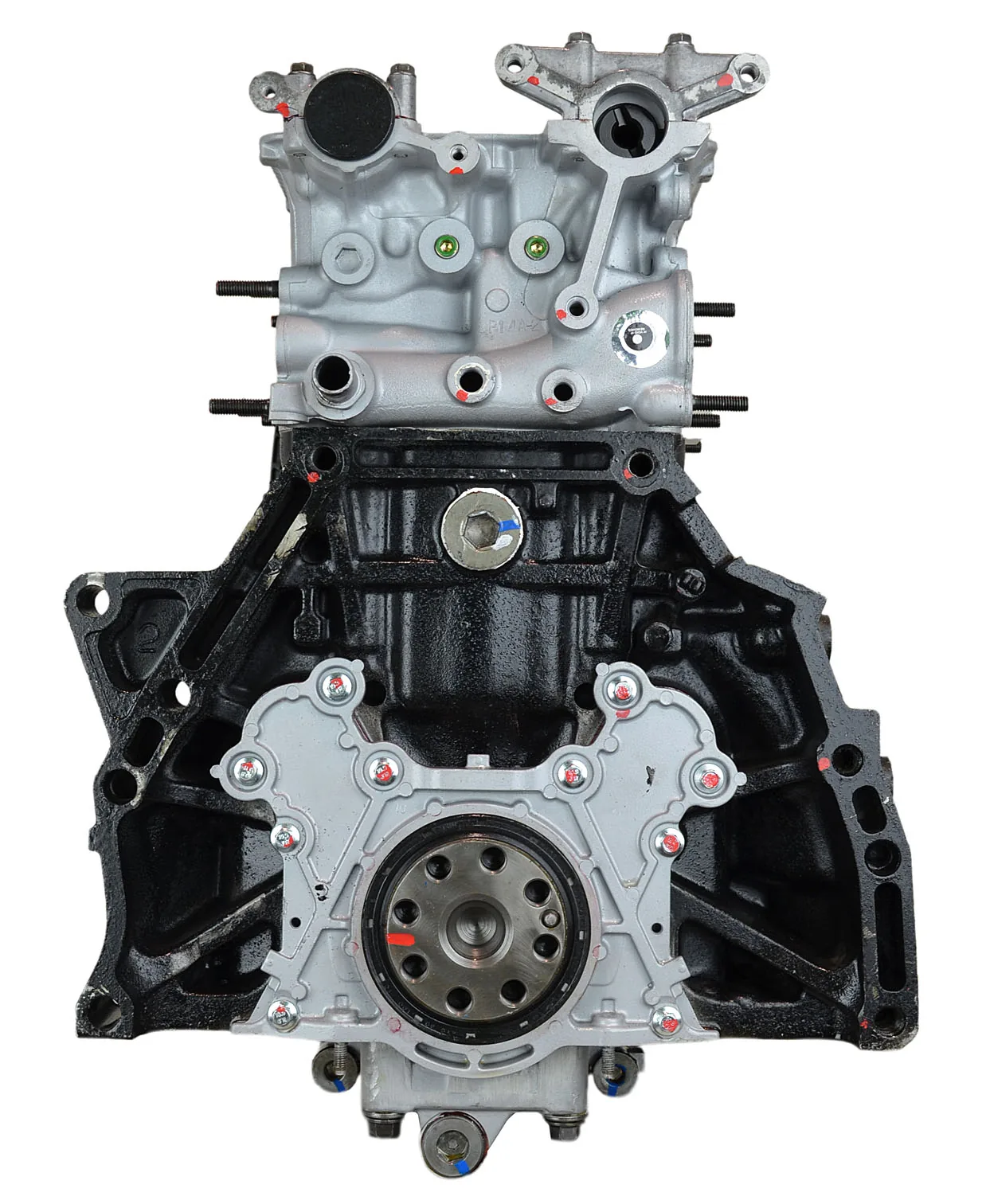

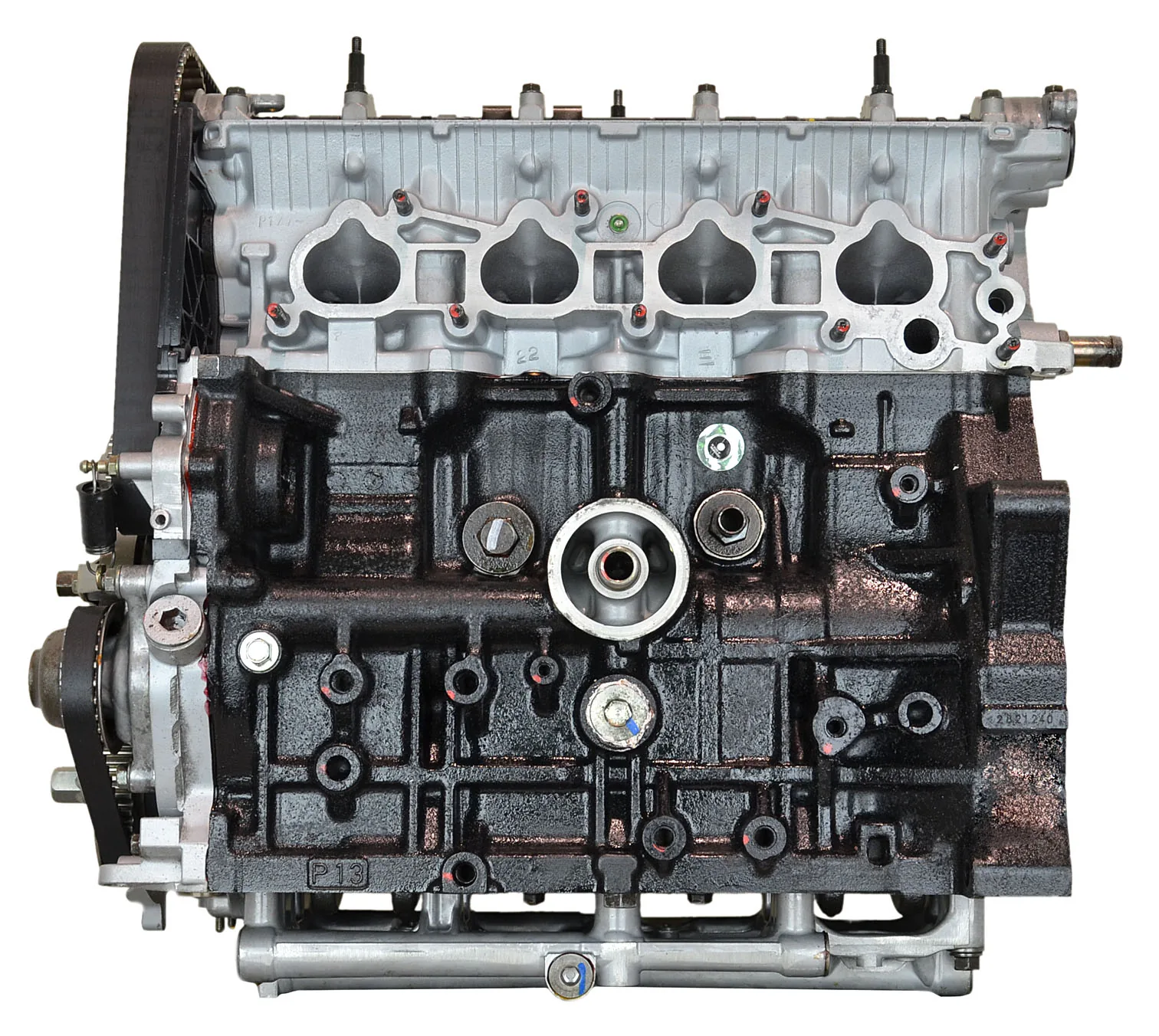

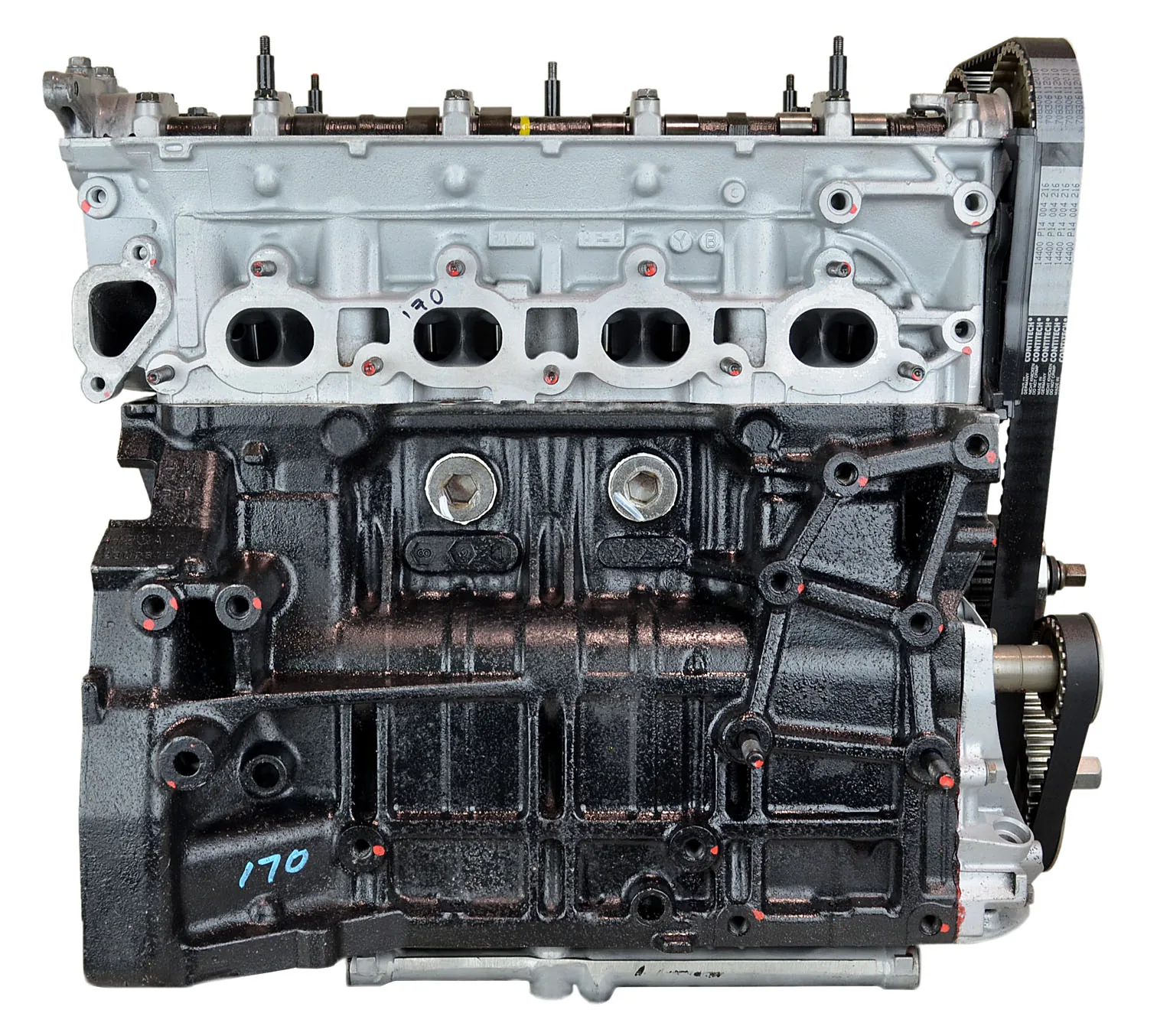

Honda Prelude H23A1 2.3L L4 Engine 12455E 1993-1995

Crankshaft harmonic balancer keyway fretting and balance shaft front oil seal extrusion disable late fourth generation sports coupes. The Honda Prelude H23A1 12455E Engine solves these critical rotating assembly issues during commercial long block repower operations. Generating 160HP, this 2.3L 4-Cylinder assembly demands exact balancer bolt torquing to avoid woodruff key deformation upon installation.

Die-cast ASTM A356-T6 aluminum encases fiber reinforced metal cylinder liners for exceptional structural bore rigidity. This Honda engine core features an induction-hardened AISI 4340 forged steel crankshaft stamped P0A engineered with an enlarged 16mm snout bolt interface. Starter draw requires 145A at 12V across cold cranking tests. Unrigged weight measures 200 lbs within physical proportions of 36in length, 36in width, 36in height, with a 4.5 quarts oil pan volume.

Key Features of Honda H23A1

Professional shops buy Honda H23A1 long block engines to resolve chronic oil burning issues during industrial engine rebuild projects. Computer guided precision boring equipment ensures cylindrical trueness across the specialized metal matrix composite cylinder liners.

- Crankshaft casting stamped P0A features a reinforced 16mm crank pulley snout interface.
- Engine block casting stamped H23A1 and P13 verifies authentic factory structural accuracy.
- DOHC 16-Valve cylinder head casting P14 delivers consistent mid-range intake air velocity.
- Positive balance shaft seal retainer hardware prevents catastrophic front timing belt oil soaking.
- The H23A1 commercial core utilizes tri-metal copper-lead bearings for elevated hydrodynamic film strength.
- Premium Viton valve stem seals eliminate deceleration vacuum oil migration into exhaust runners.
- Multi layer steel head gaskets eliminate deck separation under sustained high temperature operation.
- Stellite faced exhaust valves resist thermal fatigue during continuous high load highway operation.

Dynamometer Inspection Load Parameters

Bench dyno validation certifies 160HP at 5800 RPM and 156 ft-lbs torque at 4500 RPM under continuous testing schedules. Lubrication gallery operating pressure registers 55 PSI at an oil sump temp of 195°F. Cylinder compression shows 185 PSI across all four bores with variance restricted below 4%. Total indicated crankshaft runout remains under 0.0003in TIR across all five main journals. This H23A1 long block engine maintains continuous exhaust gas temp readings below 1320°F during simulated road load evaluations.

Chassis Installation Platform Matrix

Direct bolt-in installation matches 1993 to 1995 Honda Prelude Si sports coupes built on the fourth generation BB2 chassis platform. This unit interfaces direct with original 5-speed manual transaxles or 4-speed automatic transmissions, utilizing factory engine mounts, front crossmembers, downpipes, and intermediate half-shaft brackets without frame alteration or custom bracket fabrication.

Field Installation Maintenance Protocols

Mechanical throttle cable adjustment demands 4 lbs of linear pull force for smooth throttle return action. Technicians must note this long block is NOT engineered for VTEC equipped H22A1 Preludes, nor does it fit 1992 to 1993 14mm snout pulleys without changing to the late 16mm harmonic balancer assembly.

- Flush initial break-in engine oil and spin-on filter after 500 miles or 20 hours.
- Set cold valve clearances to 0.004in intake and 0.007in exhaust on cold cylinder heads.
- Torque the 16mm harmonic balancer bolt to 181 ft-lbs using clean motor oil on threads.

Warranty Protection Shipping Manifest

Backed by a comprehensive 3-Year 100,000-mile parts warranty, this rebuild fulfills every rigorous Honda assembly standard requirement. The reinforced wooden shipping crate carries the assembled long block core, steel oil pan, timing gear covers, aluminum valve cover, oil pickup tube, and signed dynamometer test documentation.
