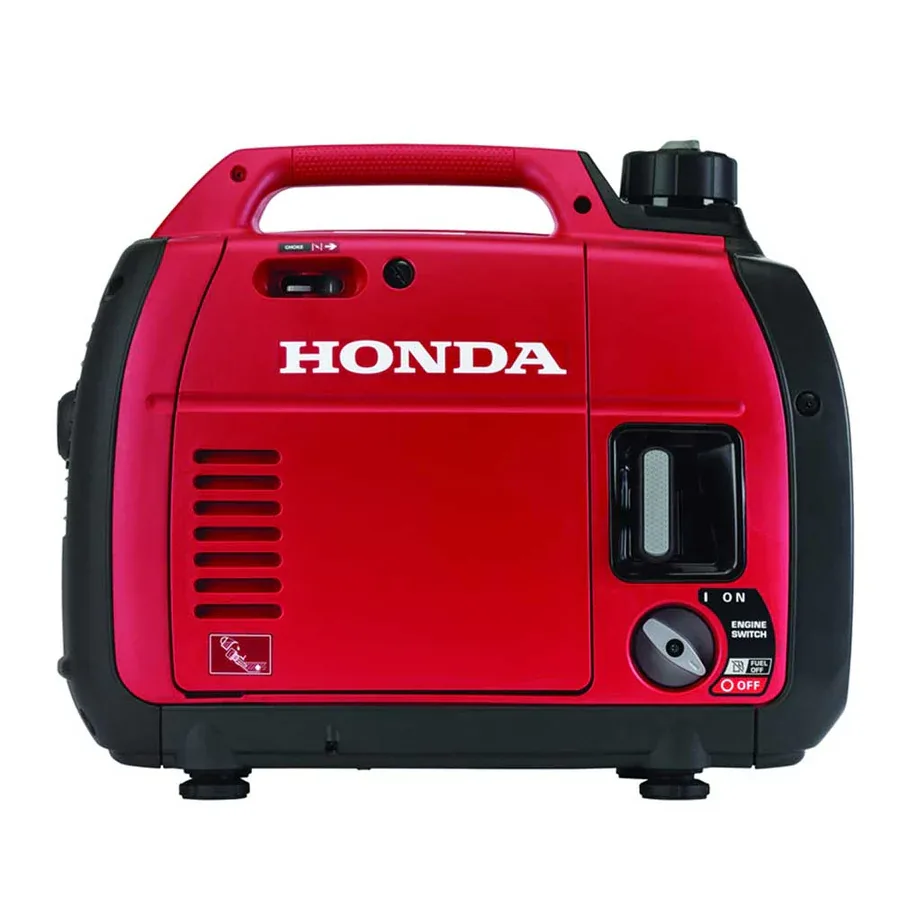

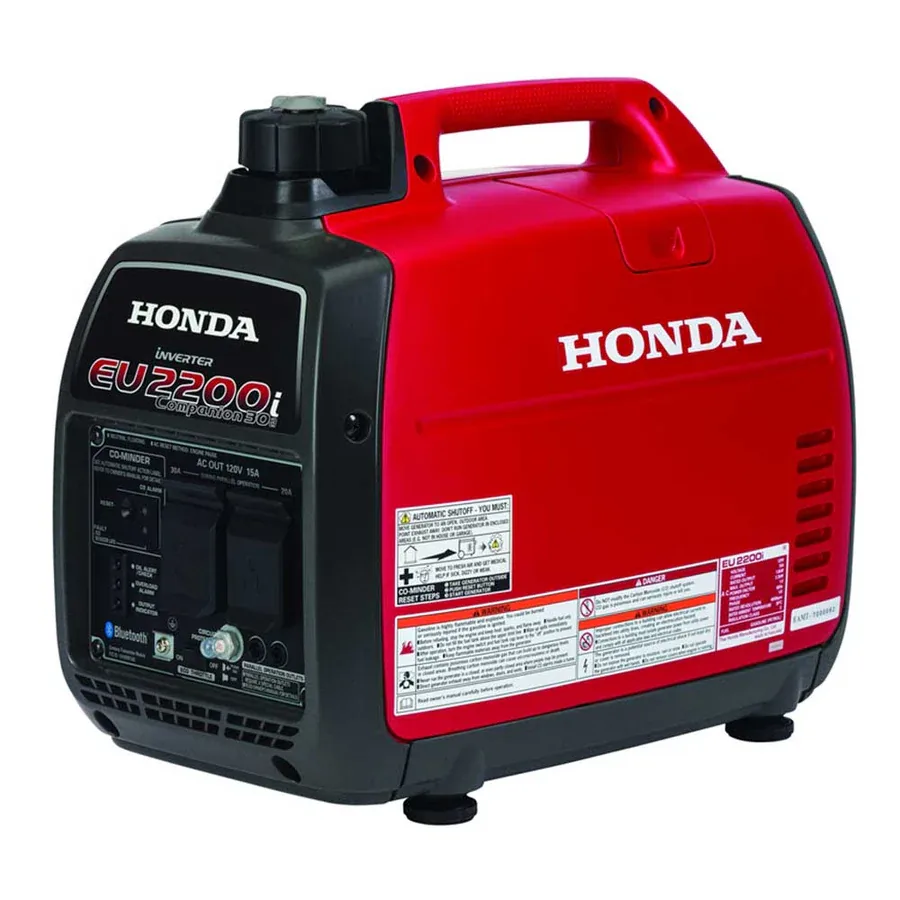

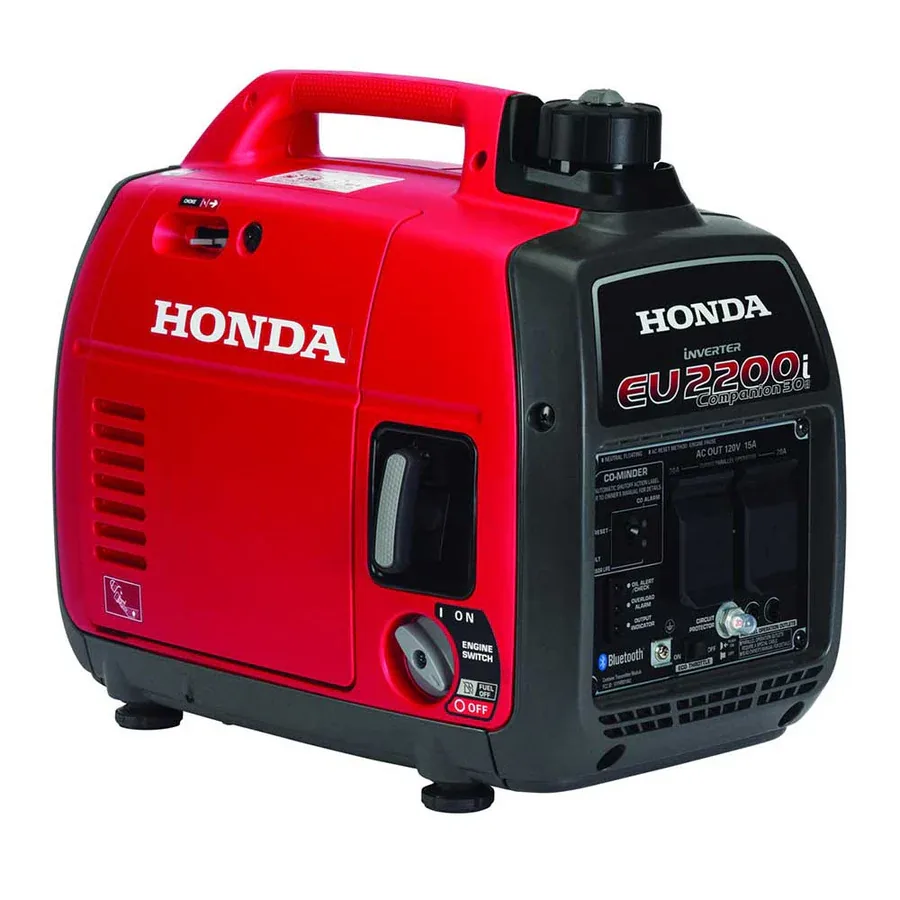

Honda EU2200i 2200W Peak Inverter Portable Generator

Eliminate total harmonic distortion risks using the Honda EU2200i Inverter Generator, delivering 1800W continuous and 2200W peak clean electricity for mobile catering carts and delicate diagnostic trailers. Powered by a 121cc Honda GXR120 commercial engine with CO-Minder, it feeds 120V gear without voltage drop. It prevents point-of-sale computer crashes while handling inductive refrigeration motor startup spikes.

An impact-resistant polymer outer casing isolates the internal combustion block and magnesium-alloy subframe from jobsite drops. The 121cc overhead-cam commercial engine incorporates a cast-iron cylinder sleeve and low-oil alert system for prolonged service durability. Dry unladen weight measures 46.5 lbs across perimeter dimensions of 20 inches long by 11.4 inches wide by 16.7 inches high. This Honda portable inverter generator features a 0.95-gallon fuel tank that yields up to 8.1 runtime hours under Eco-Throttle operation.

Key Features of Honda EU2200i

Concession cart operators buy Honda EU2200i commercial power equipment to energize mobile payment hardware and espresso grinders without loud exhaust clatter. Pure sine wave inverter circuitry prevents microchip burns across sensitive digital display registers.

- 1800W running rating feeds commercial countertop food warmers and blenders without hesitation.
- 2200W starting surge absorbs compressor inrush current from small reach-in cold-storage boxes.
- 121cc Honda GXR120 commercial engine provides steady torque output under fluctuating catering electrical loads.
- CO-Minder sensor monitors carbon monoxide concentration, shutting off ignition before exhaust gases accumulate.
- Eco-Throttle mechanism modulates engine RPM to match active electrical demand, slashing fuel consumption.
- Pure sine wave inverter caps harmonic distortion below 2.5 percent on this EU2200i inverter unit.
- Parallel connection capability allows pairing two units together to double available electrical wattage.

Inverter Waveform Clean Power Modulation

Delivering true utility-grade current, this EU2200i inverter unit keeps total harmonic distortion under 2.5 percent across all load stages. Acoustic emissions measure between 48 and 57 dB(A) at 23 feet, permitting placement right next to customer service counters. The digital inverter module absorbs inductive startup inrush from refrigeration pumps without voltage sag or frequency variation. This protects credit card processors, audio receivers, and programmable induction plates from electrical noise during continuous food truck lunch rushes.

Outdoor Placement Distribution Cord Guidelines

Position the unit outdoors on level ground maintaining at least 5 feet of perimeter clearance from exterior windows, doors, and mobile vehicle air vents. Direct engine exhaust away from customer service queues to prevent fume inhalation. Connect service distribution through the twin 20A duplex receptacles using heavy 12-gauge rubberized outdoor power cords.

Chassis Portability Preventive Maintenance Protocol

A molded top handle enables single-operator transport across paved lots, while the manual recoil start requires a modest 14 lbs of pull effort. This compact inverter unit is NOT engineered for unshielded outdoor exposure in active rainstorms, raw 240V circuit panels, or driving multi-ton central air compressors.

- Replace engine crankcase motor oil after the initial 20 hours, then every 100 runtime hours.
- Inspect and clean the dual-element foam air cleaner every 50 runtime hours.
- Drain fuel from the carburetor float bowl screw before storage past 30 days.

Commercial Warranty Carton Manifest Specifics

This Honda portable inverter generator includes a 3-Year commercial warranty covering engine mechanicals, inverter electronics, and structural framing. The factory shipping carton contains the 2200W generator, oil fill funnel, spark plug socket wrench, and certified factory operational manuals.
