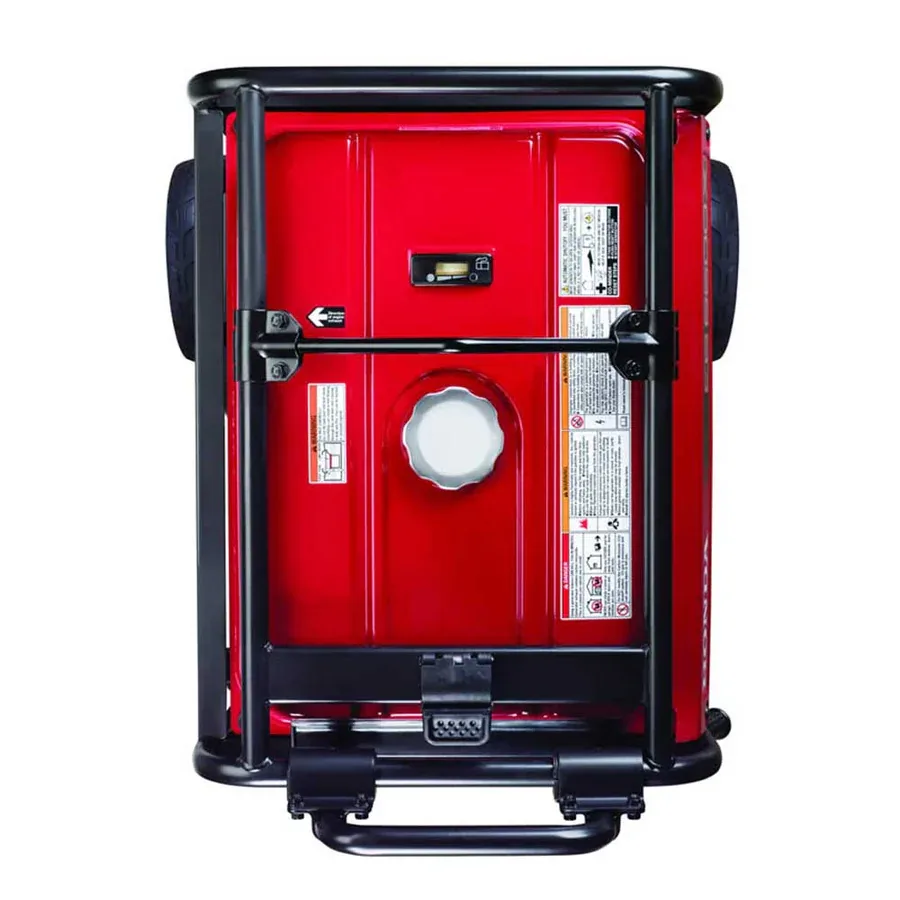

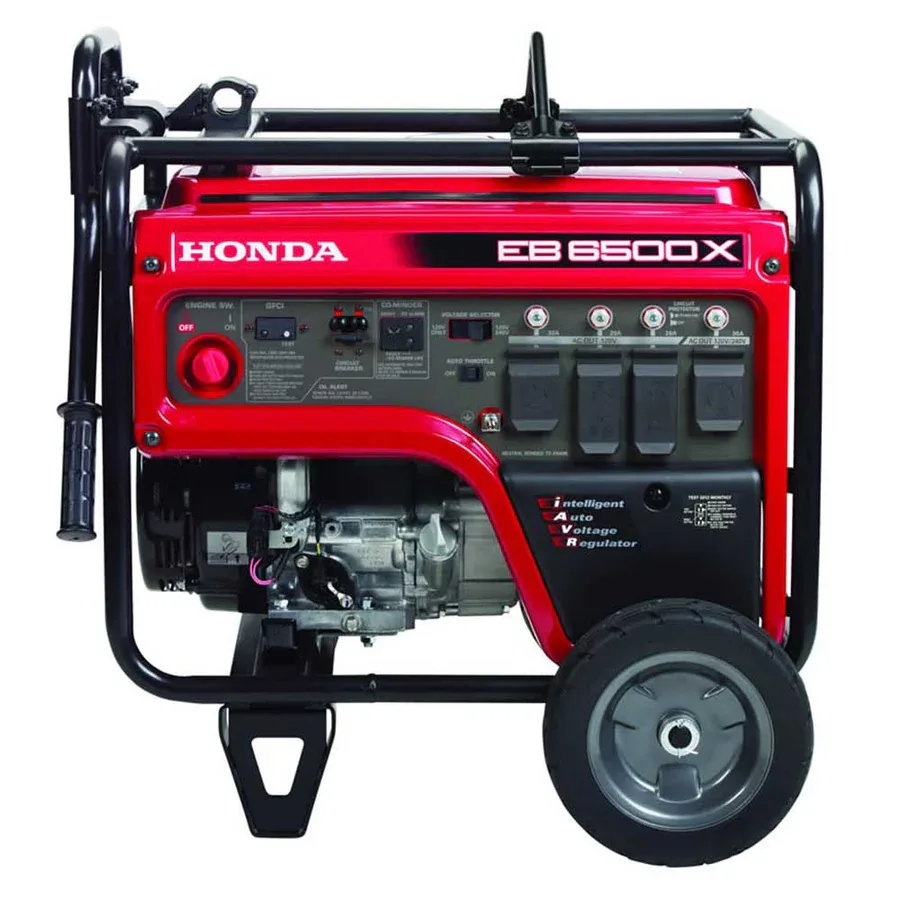

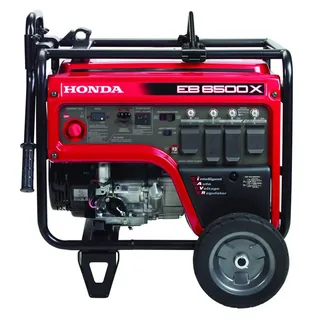

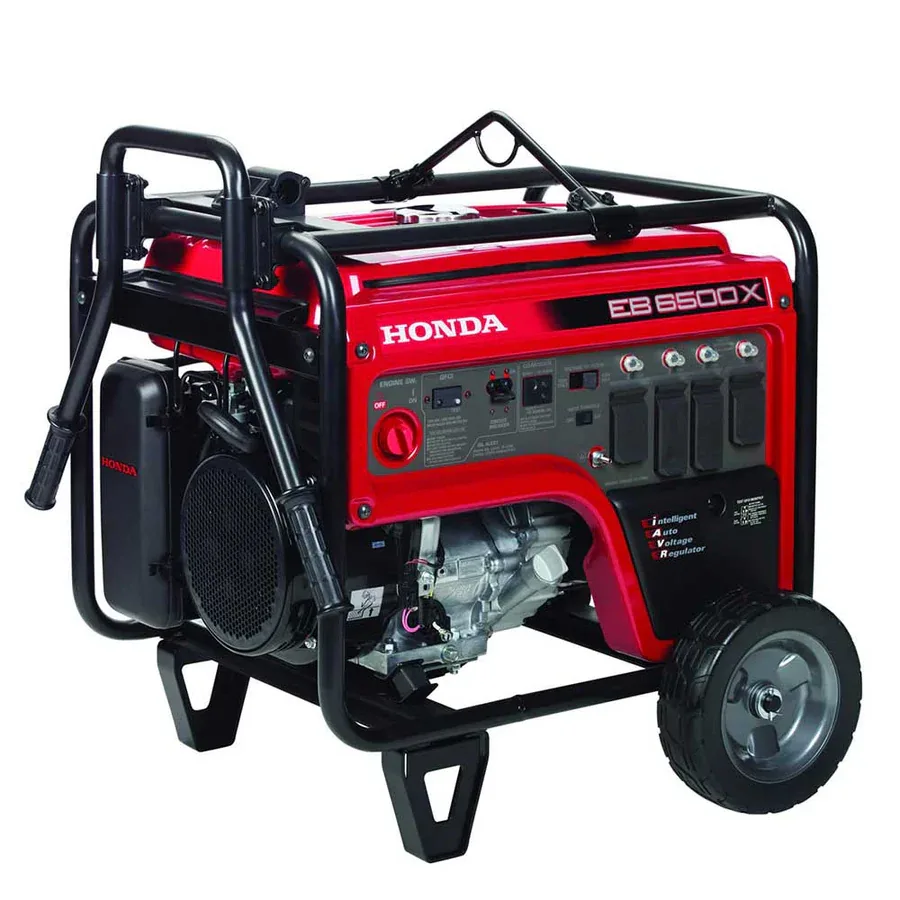

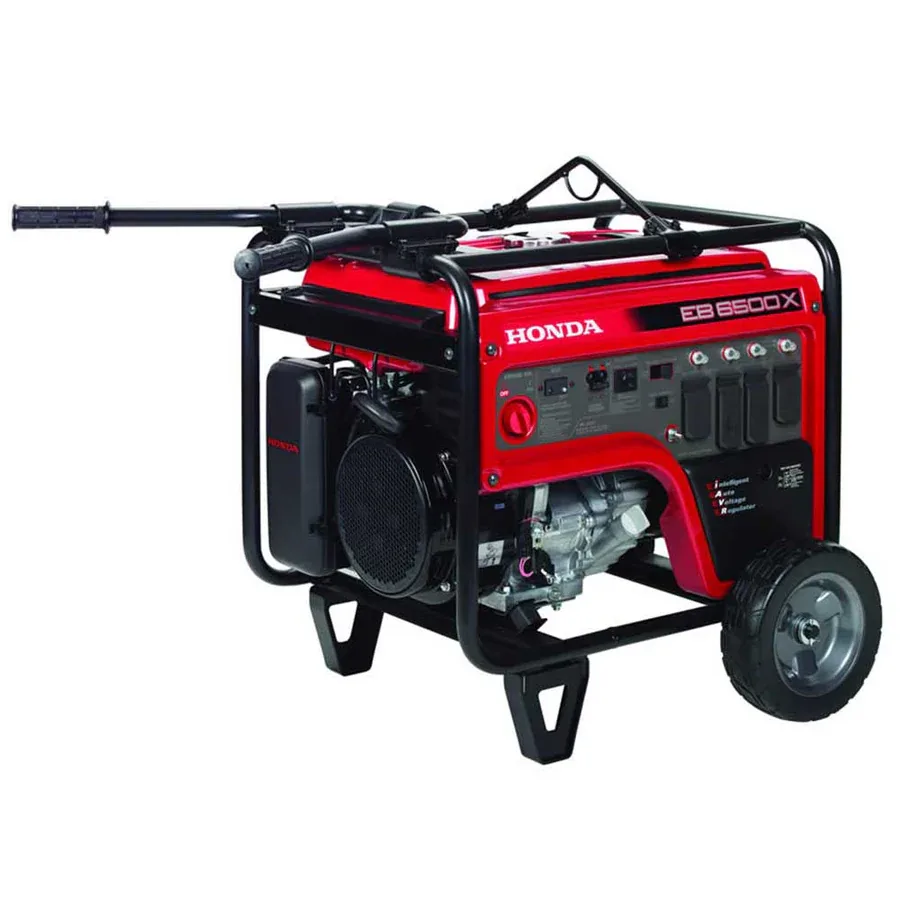

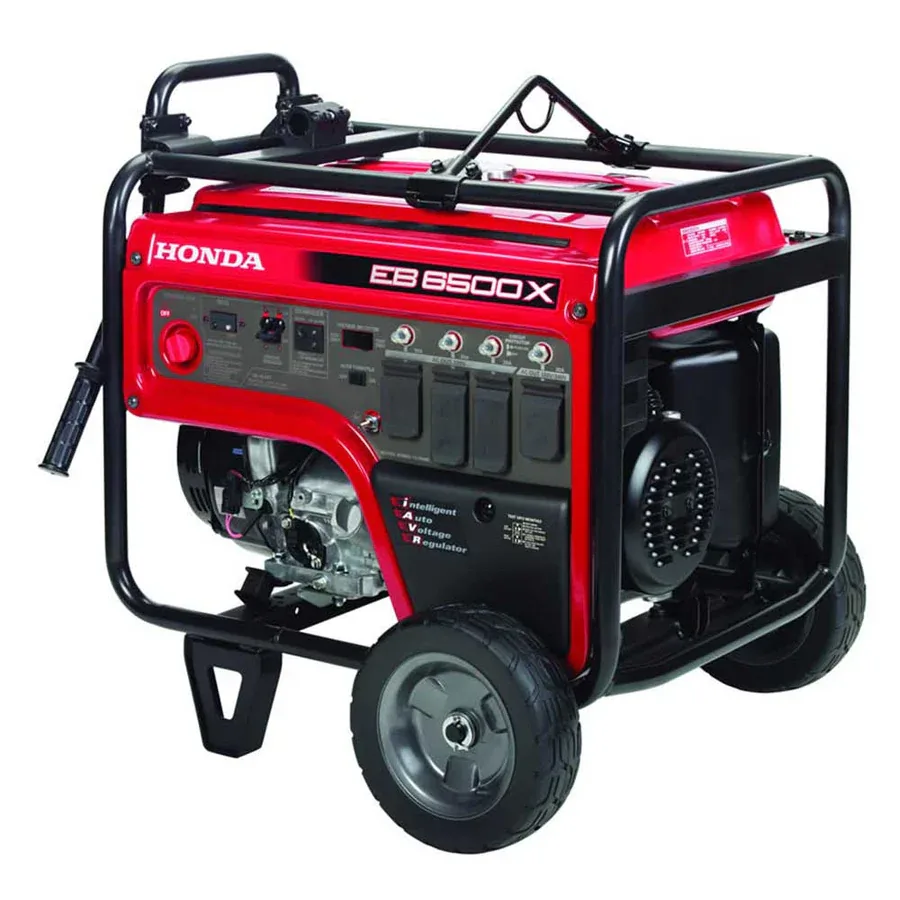

Honda EB6500X1AN2 6500W Peak Portable Generator – CO Shutoff Sensor

OSHA-compliant jobsite electrical power arrives with the Honda EB6500X1AN2 Industrial Portable Generator, upgraded with CO-MINDER carbon monoxide monitoring for enhanced workplace safety. Producing 7000 surge watts for ten seconds and 5500 running watts, this commercial generator powers walk-in refrigeration compressors, holding warmers, and computerized register networks through extended regional utility outages.

Surrounded by a 1.25-inch tubular steel roll cage, the chassis encases a 389cc Honda GX390 OHV engine with a cast-iron cylinder sleeve for superior mechanical endurance. Heavy-duty copper alternator windings provide thermal resilience, preventing stator insulation breakdown under continuous maximum load runs. With a 6.2-gallon fuel tank, the 220-lb dry frame perimeter measures 41.4 inches long by 27.8 inches wide by 28.3 inches high.

Key Features of Honda EB6500X1AN2

Facility managers who buy Honda EB6500X1AN2 industrial portable generator equipment invest in jobsite safety alongside emergency food service generation reliability. The integrated CO-MINDER system continuously monitors air quality, automatically shutting down the engine before toxic exhaust gas accumulates near loading docks.

- 7000 peak surge watts for ten seconds start commercial refrigeration compressors without bogging the engine.
- 5500 running watts supply continuous power to food preparation tables, warmers, and register networks.
- CO-MINDER sensor continuously samples ambient air, shutting down the engine when carbon monoxide concentrates.
- iAVR intelligent voltage regulation controls alternator output voltage within 1 percent during heavy load steps.
- EB6500X1AN2 full GFCI circuit protection across all outlets complies with OSHA commercial safety requirements.
- Commercial Honda GX390 OHV engine incorporates a cast-iron cylinder liner for long operational life.
- 30A NEMA L14-30R twist-lock outlet feeds clean split-phase 120V and 240V power to manual transfer switches.
- Folding transport handles and large flat-free wheels enable swift relocation across uneven jobsite terrain.

Voltage Stability Heavy Inductive Tolerances

Operating at an acoustic level of 73 dB(A) at 23 feet, this open-frame generator relies on an oversized muffler to reduce exhaust noise. The internal iAVR regulator keeps output voltage steady within 1 percent of 120V and 240V standards at 60 Hz. Consuming 0.63 GPH at half load, it yields 9.8 continuous runtime hours from its steel fuel tank.

Exhaust Spacing Neutral Bond Wiring

Position the machine outdoors on level ground at least 5 feet from commercial exterior walls, windows, and customer entry doors. The unit comes configured with a bonded neutral to the frame, requiring disconnection of the bonding jumper when connecting to commercial transfer switches with pre-existing neutral-ground bonds.

Physical Mobility Field Maintenance Tasks

Moving this 220-lb open-frame generator across broken pavement requires 30 lbs of effort using the solid wheels and folding handle. This generator is not engineered for indoor warehouse operation without exterior exhaust venting, nor for powering sensitive microcomputers lacking external surge suppression equipment.

- Inspect crankcase oil level and remove surface dust before each shift.
- Clean the dual-element foam air cleaner element every 50 runtime hours.
- Drain engine oil and install fresh 10W-30 lubricant every 100 runtime hours.

Commercial Warranty Crate Manifest Details

Honda backs this unit with a 3-Year commercial warranty covering engine mechanicals, stator assemblies, and electrical switchgear. The shipping package includes the Honda EB6500X1AN2 generator, wheel transport kit, folding handle set, engine oil container, oil funnel, tool set, and operator manual.
